Description

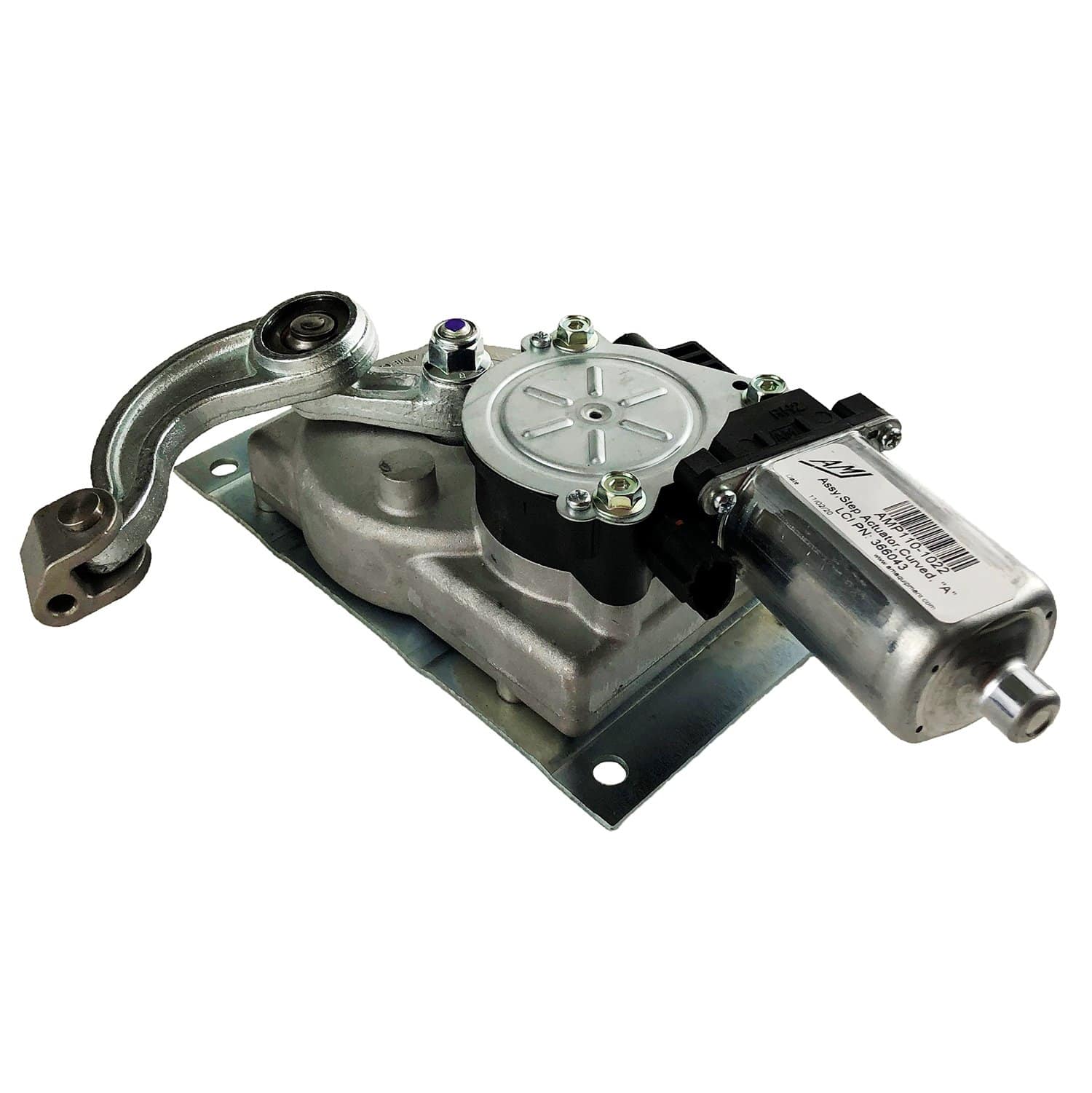

The 110-1022 is a 5:1 gearbox with a 214 Series motor, designed for the electric double step part 9010000220. This motor gearbox upgrade is provided by AM Equipment, enhancing the functionality of the entry step system.
Features:
- Original equipment replacements for LCI / Kwikee
- Economical motor/gear package
- 5:1 gear ratio
- 70 Nm output shaft stall torque
- 13 no-load oscillations per minute
- 110 mm (4.25”) x 210 mm (8.25”) mounting plate
- Supplied with an AM Equipment 214-1001 DC gear motor
- 17 mm diameter double flat power take-off shaft
- 13 rpm speed range at gear box
- Durability tested to 50,000+ actuation cycles with linkage
- Engineered and assembled in America
Warning: Product may contain materials cautioned by California Proposition 65
Specifications
| weight | 2 lbs |
