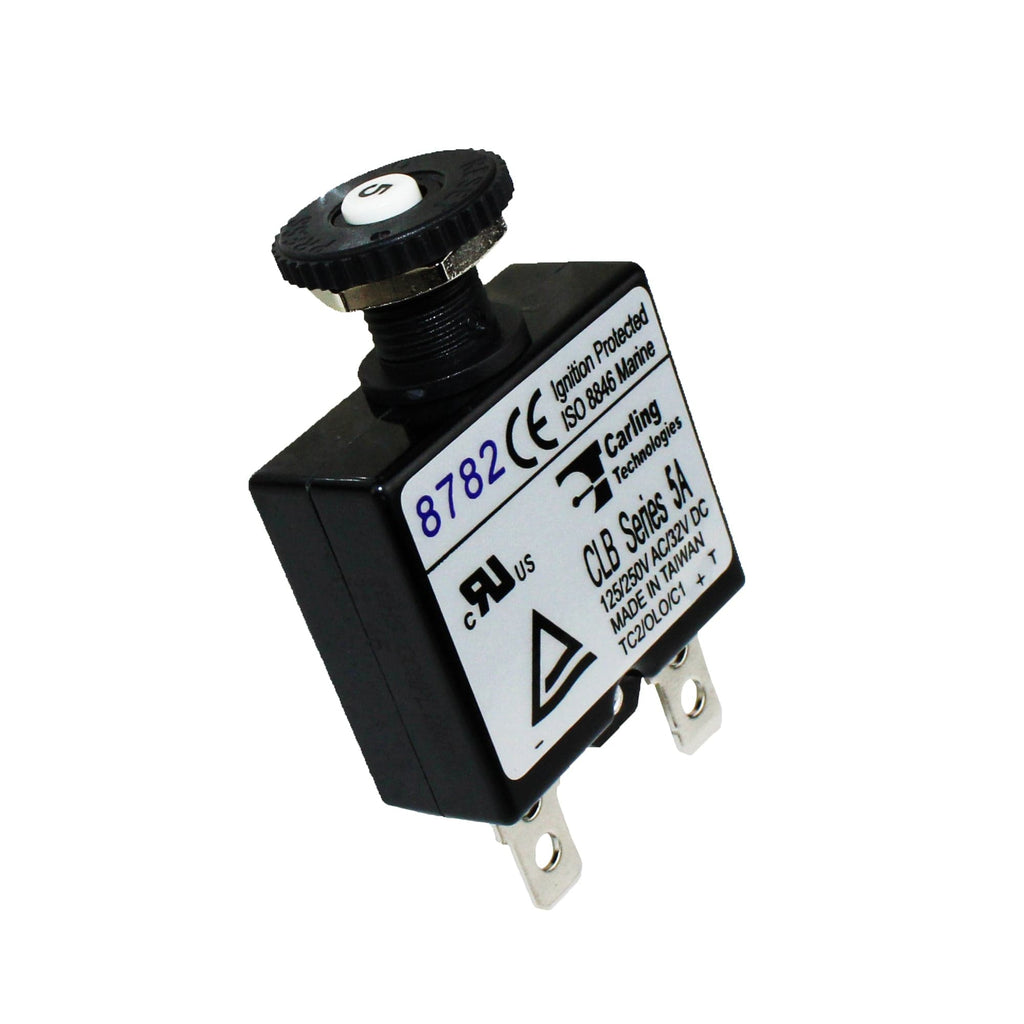

Blue Sea Systems 7052-BSS 5A Quick Connect Circuit Breaker, Push Button Reset Only
Roll over image to zoom in Click on image to zoom
Blue Sea Systems 7052-BSS 5A Quick Connect Circuit Breaker, Push Button Reset Only

Blue Sea Systems 7052-BSS 5A Quick Connect Circuit Breaker, Push Button Reset Only

Blue Sea SystemsSKU: 7052-BSS
Price:
$14.00
Stock:
Only 1 unit left
Free Shipping* (Some exclusions apply)TRUE
 More payment options

Description

This is a 5-amp push button reset only quick connect circuit breaker

  • Branch circuit breakers (can also be used for 24-hour circuit protection)
  • Quick connect terminal style circuit breakers are incorporated into Blue Sea Systems WeatherDeck Waterproof Circuit Breaker Panels, Dual Battery Bank Main Distribution Panels, and 360 Distribution Panels
  • Compact design enables high density circuit protection configurations
  • Push-to-reset operation
  • “Trip Free” design cannot be held “ON” during fault current condition
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Optional Push Button Waterproof Boot protects circuit breaker in wet environments, replaces dress nut mounting on circuit breakers and resists discoloration and cracking

Warning: Product may contain materials cautioned by California Proposition 65

Specifications

Amperage 5A DC
Circuit Breaker Type Thermal trip, manual push button reset only
Interrupt Capacity 3000A @ 14.7V / 2500A @ 28V
Max. Operating Temperature 60° C
Maximum Voltage 32V DC
Min. Operating Temperature -10° C
Screw Terminal Torque 6 in-lb (0.68 Nm)
Terminal Type 1/4 Male Quick Connect

You May Also Like

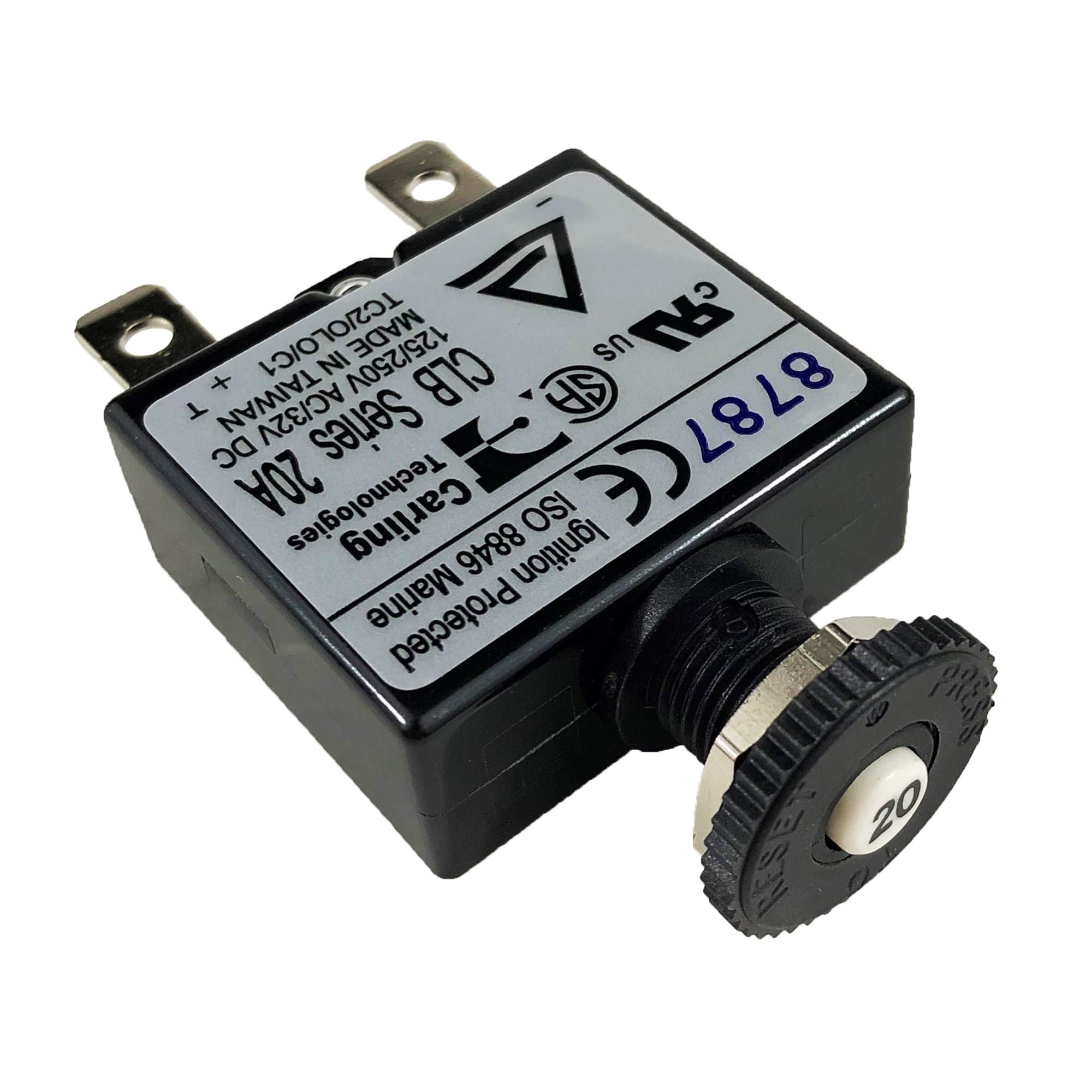

Blue Sea Systems 7057-BSS Circuit Breaker, Push Button, Quick Connect, 20 Amps
Blue Sea Systems Blue Sea Systems 7057-BSS Circuit Breaker, Push Button, Quick Connect, 20 Amps
$14.00
In stock
Blue Sea Systems 4352-BSS Power Products BelowDeck Circuit Breaker Panel, 6 Positions
Blue Sea Systems Blue Sea Systems 4352-BSS Power Products BelowDeck Circuit Breaker Panel, 6 Positions
$58.00
In stock

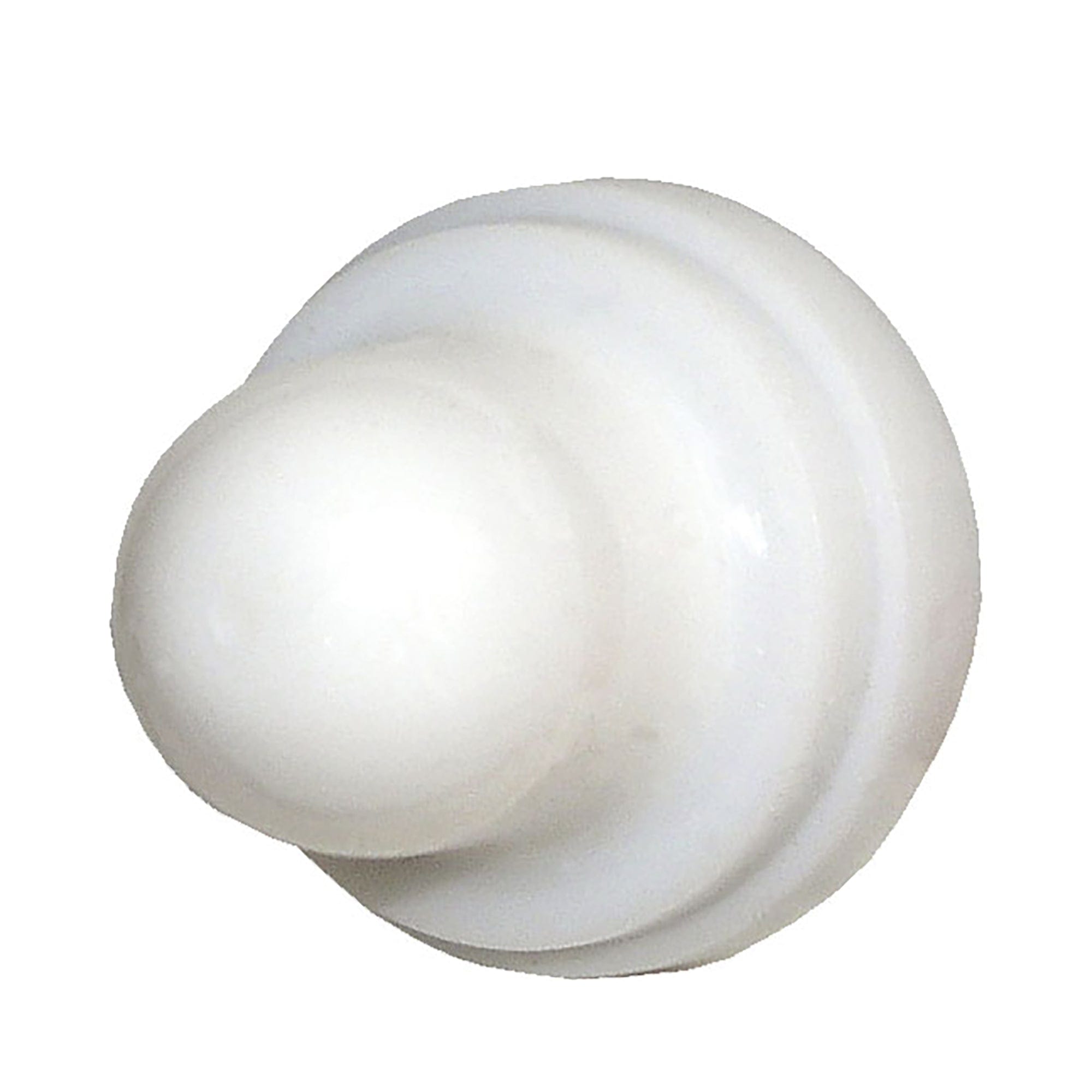

Reset Button White Circuit Breaker Boot Blue Sea Systems 4136-BSS
Blue Sea Systems Reset Button White Circuit Breaker Boot Blue Sea Systems 4136-BSS
$7.00
In stock
Terminal Block 65A - 2 Circuit Blue Sea Systems 2602
Blue Sea Systems Terminal Block 65A - 2 Circuit Blue Sea Systems 2602
$21.00
In stock
Power Products Blue Sea Systems 5054-BSS Circuit Breaker Block ST CLB 12 Position W/ Negative Bus
Power Products Power Products Blue Sea Systems 5054-BSS Circuit Breaker Block ST CLB 12 Position W/ Negative Bus
$117.00
In stock
Terminal Block 65A - 8 Circuit - Blue Sea Systems 2608
Blue Sea Systems Terminal Block 65A - 8 Circuit - Blue Sea Systems 2608
$31.00
In stock
Save $35.00
Blue Sea Systems 9001E-BSS Battery Switch E Selector
Blue Sea Systems Blue Sea Systems 9001E-BSS Battery Switch E Selector
$70.00 $105.00
In stock
Terminal Block 65A - 4 Circuit - Blue Sea Systems 2604
Blue Sea Systems Terminal Block 65A - 4 Circuit - Blue Sea Systems 2604
$24.00
In stock
Save $18.00

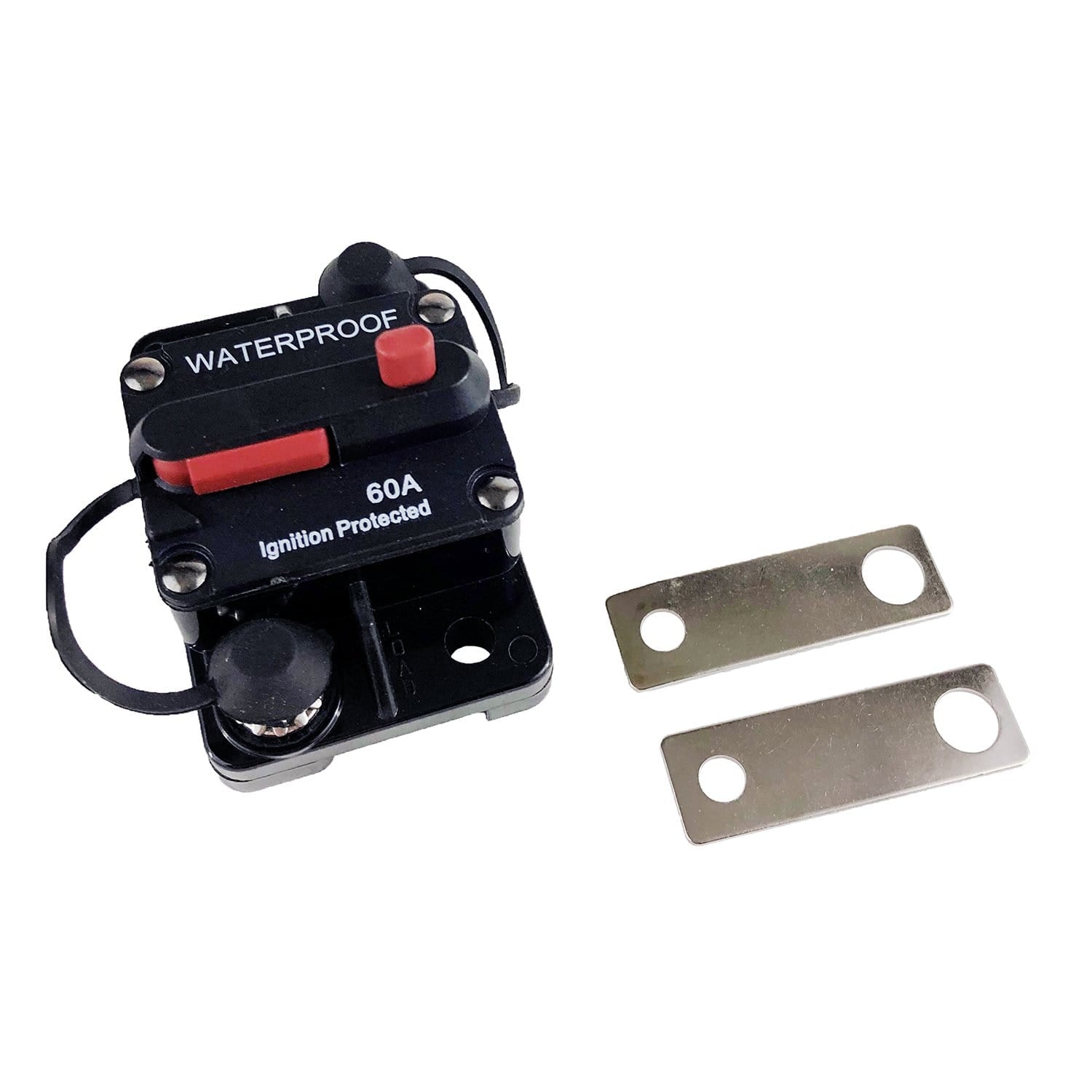

Attwood 14372-7 60-Amp Waterproof Manual Reset Circuit Breaker
Attwood Attwood 14372-7 60-Amp Waterproof Manual Reset Circuit Breaker
$26.00 $44.00
In stock

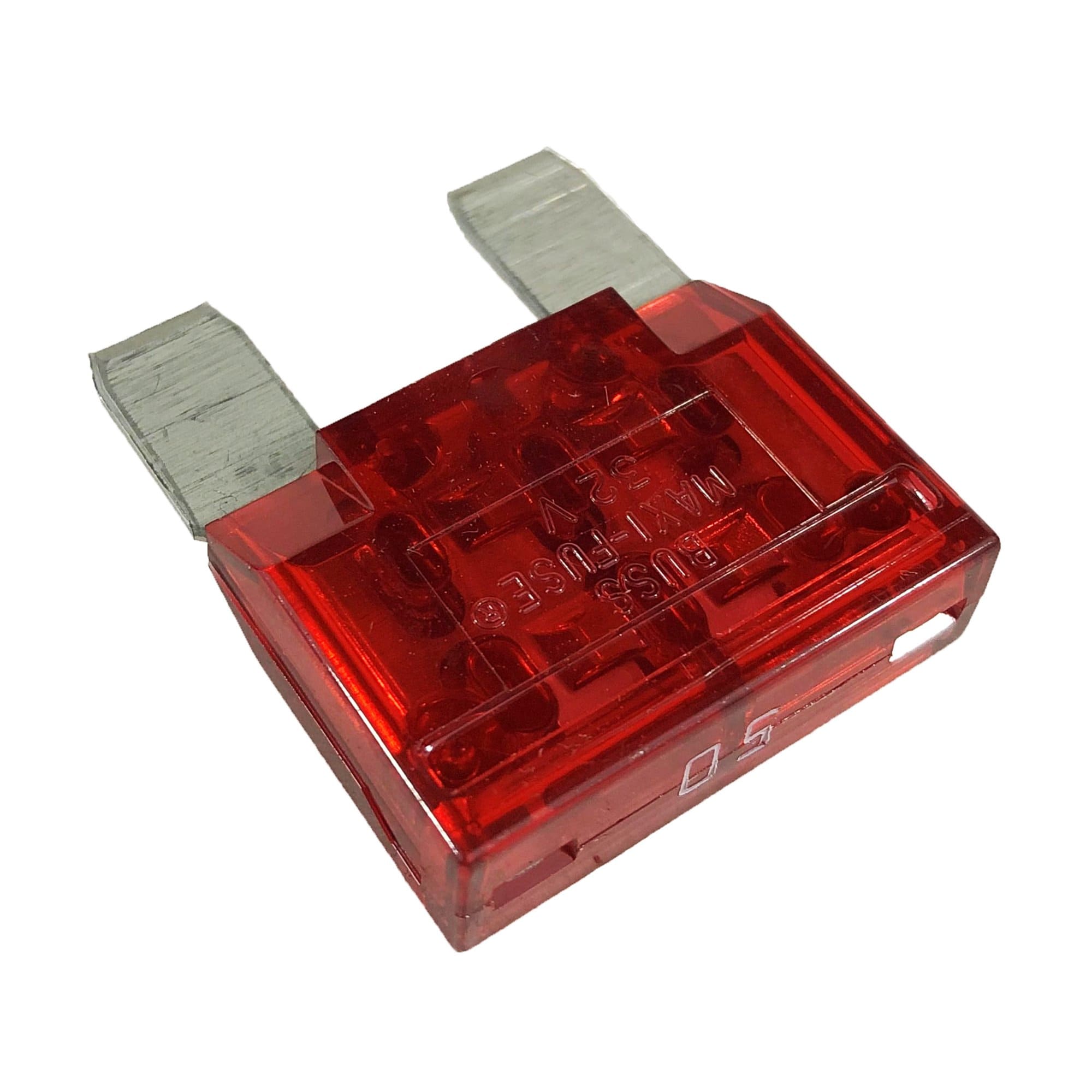

Blue Sea Systems 5140-BSS Power Products Maxi Fuse, 50 Amp
Blue Sea Systems Blue Sea Systems 5140-BSS Power Products Maxi Fuse, 50 Amp
$18.00
In stock

Recently viewed

Save $15.00

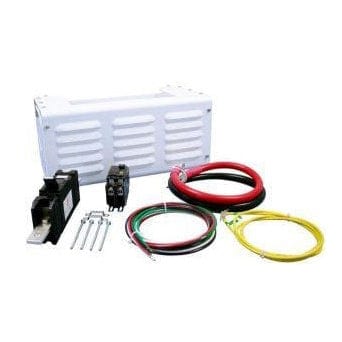

Magnum MPX5250-60S-R Right Side Mounting Extension Box
Magnum Dimensions Magnum MPX5250-60S-R Right Side Mounting Extension Box
$452.00 $467.00
Sold out

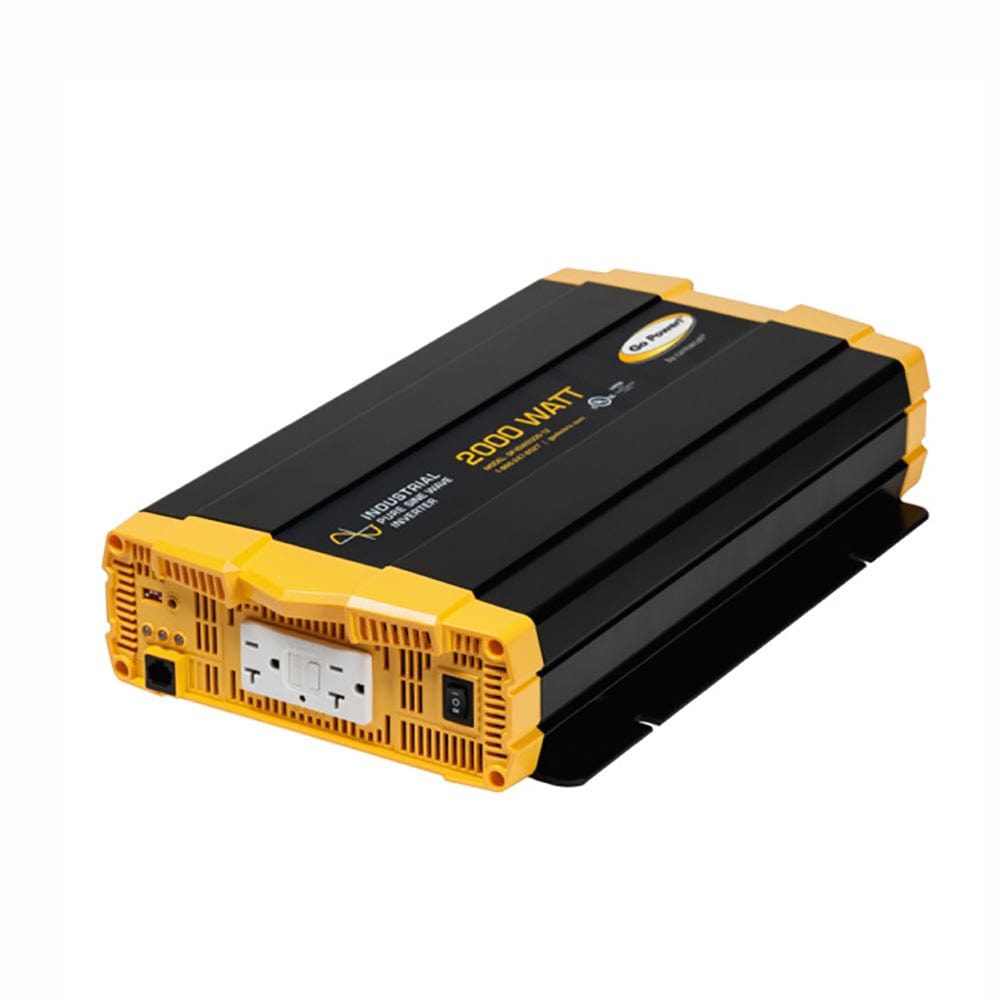

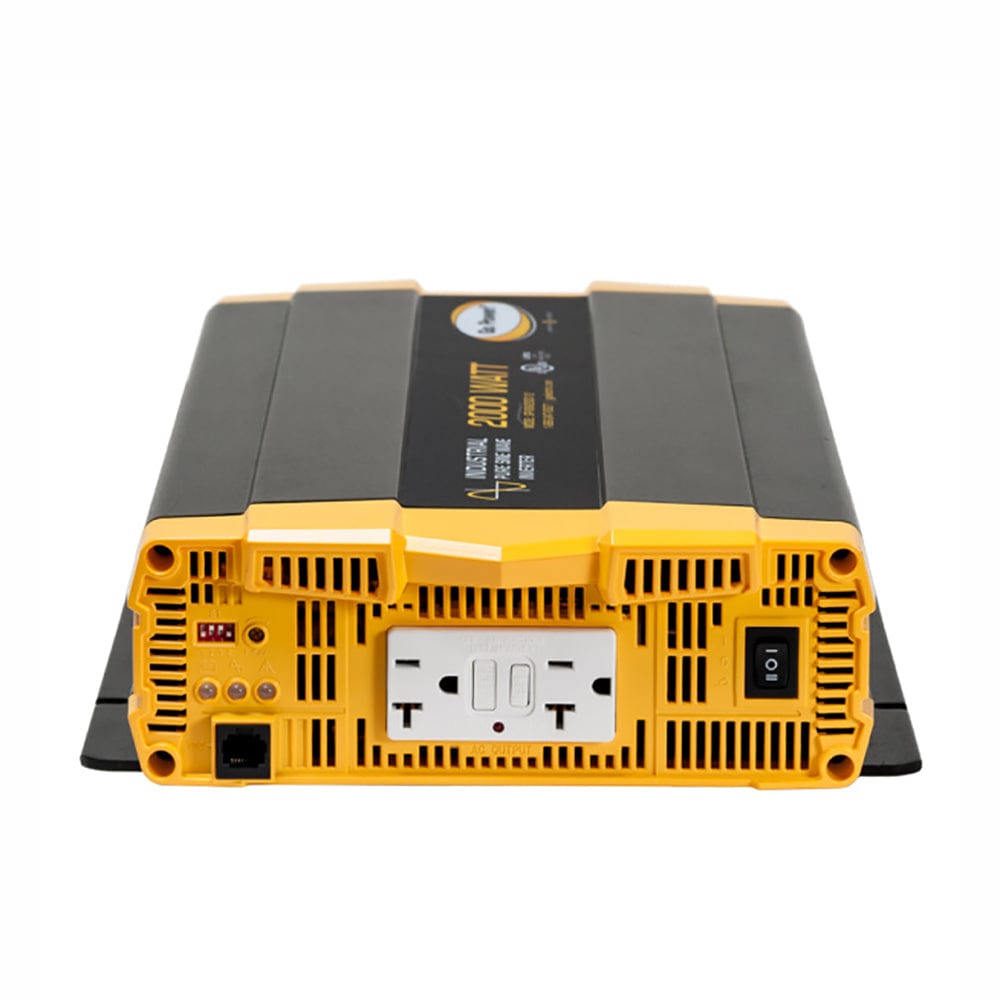

Go Power! GP-ISW2000-24 2000W, 24V Pure Sine Wave InverterGo Power! GP-ISW2000-24 2000W, 24V Pure Sine Wave Inverter
