Description

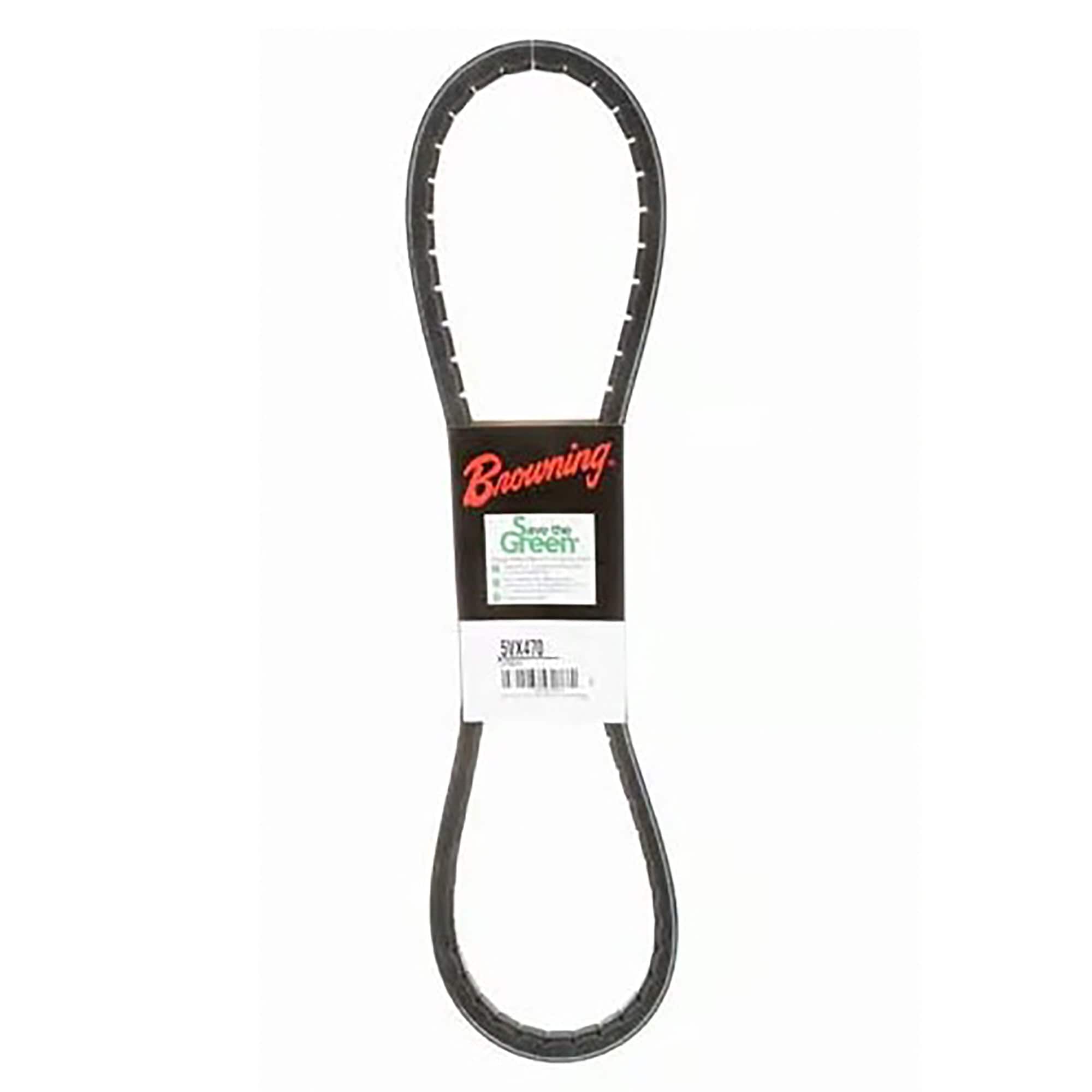

Introducing the Browning 5VX470 EPDM Notched Belt, engineered for superior performance in demanding applications. This notched V-belt is designed to deliver reliable power transmission, making it an ideal choice for a variety of industrial and mechanical systems.
- More horsepower in less space - Browning 358 Belts provide more horsepower in the same span than conventional ABC Belts. This enables you to reduce drive cost.
- Greater Horsepower allows for smaller drive sheaves - Using 358 Belts can allow for smaller drive components while still meeting the drive requirements , thus lowering the overall drive cost.
- Close Belt tolerance - Browning Belts offer the "Code 1" Match belt system on all classical and "358" Belts, allowing easy selection of just one match number for each belt size. This ensures tighter than RMA standards.
Specifications
Material: EPDM
Efficiency: 0.98
Max Operating Temperature: 121 °C
Pitch Length: 47
Number of Ribs: 1
Construction Type: Cogged
Section Size: 5VX
Operating Temperature Range: -60 to +250 °F
Reinforcing Cord Materia: Polyester
Meets Standards: ARPM IP-22
Resistance Features: Oil & Chemical per ARPM IP-3-2, Static Dissipating per ARPM IP-3-3
