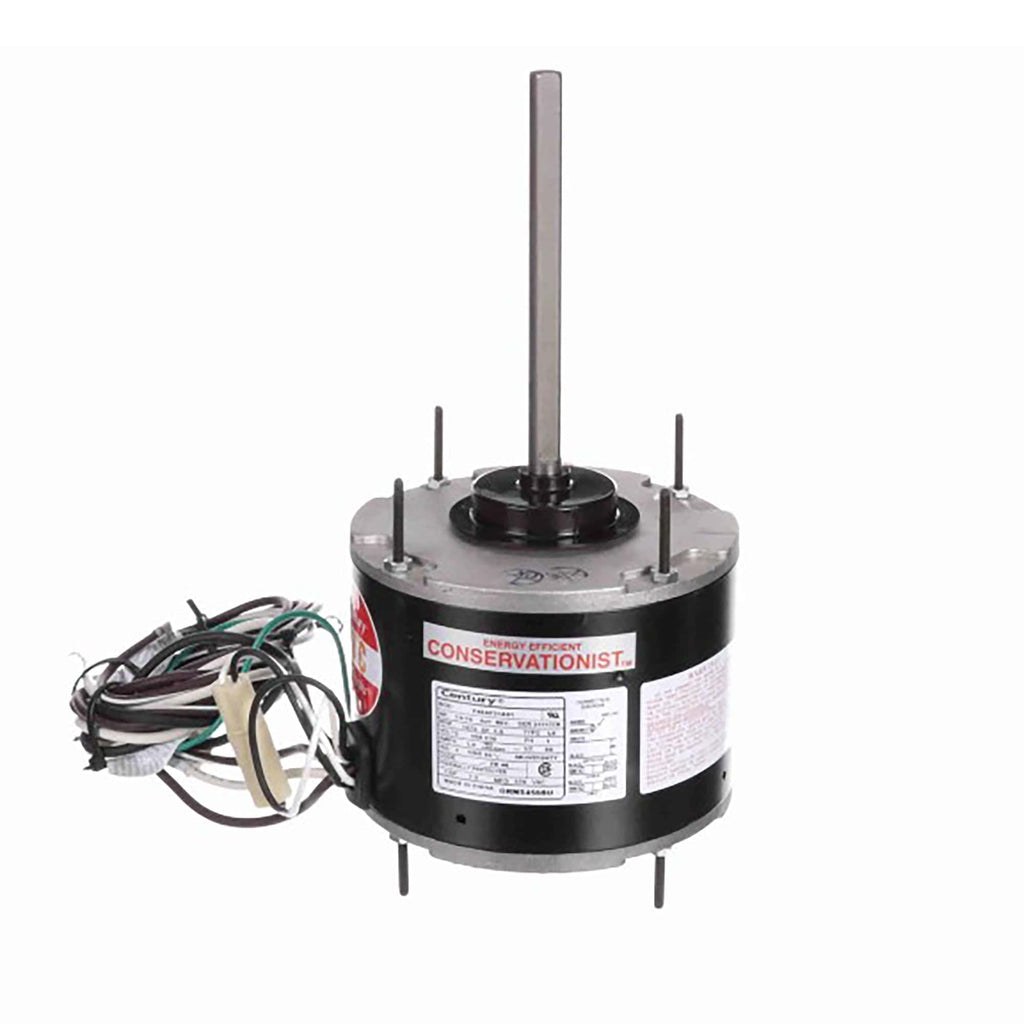

Century 4-in-1 Condenser Fan Motor, 1/3-1/6 HP, 1 Ph, 60 Hz, 208-230 V, 1075 RPM, 1 Speed, 48 Frame, TEAO ORM5458BU
Roll over image to zoom in Click on image to zoom
Century 4-in-1 Condenser Fan Motor, 1/3-1/6 HP, 1 Ph, 60 Hz, 208-230 V, 1075 RPM, 1 Speed, 48 Frame, TEAO ORM5458BU

Century 4-in-1 Condenser Fan Motor, 1/3-1/6 HP, 1 Ph, 60 Hz, 208-230 V, 1075 RPM, 1 Speed, 48 Frame, TEAO ORM5458BU

Save $18.00
CenturySKU: ORM5458BU
Price:
$218.00 $236.00
Stock:
In stock (3 units)
Free Shipping* (Some exclusions apply)TRUE
 More payment options

Description

4-in-1 Condenser Fan Motor, 1/3-1/6 HP, 1 Ph, 60 Hz, 208-230 V, 1075 RPM, 1 Speed, 48 Frame, TEAO ORM5458BU by Century Motors.

Features:

  • 4-in-1 HeatMaster Ultra - Condenser Fan Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Totally Enclosed Air Over
  • Class F Insulation, 80°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Double Flat
  • 48" Leads
  • Extended Studs Shaft End and Opposite Shaft End, Mounting Holes in Shell, 4.33BC on Opposite Shaft End End-Frame, Belly Band Mount (Belly Band Not Included)

Specifications:

Phase: 1 Output HP: 1/3-1/6 Hp
Output KW: 0.25 kW Voltage: 208-230 V
Speed: 1075 rpm Service Factor: 1.0
Frame: 48 Enclosure: Totally Enclosed Air Over
Thermal Protection: Automatic Ambient Temperature: 80 °C
Frequency: 60 Hz Current: 1.9 A
Duty: Air Over Insulation Class: F
UL: Recognized CSA: Y
CE: N Number of Speeds: 1
