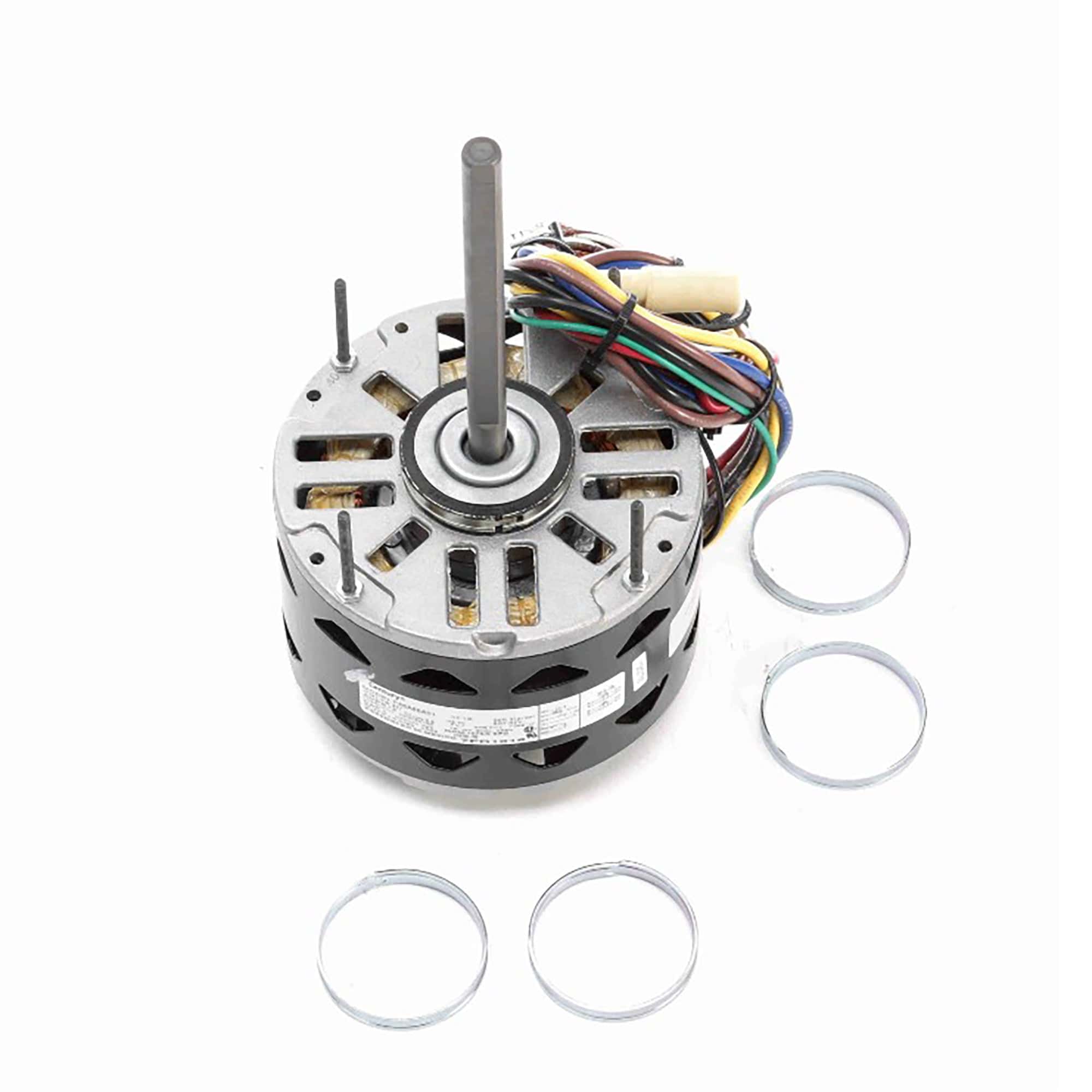

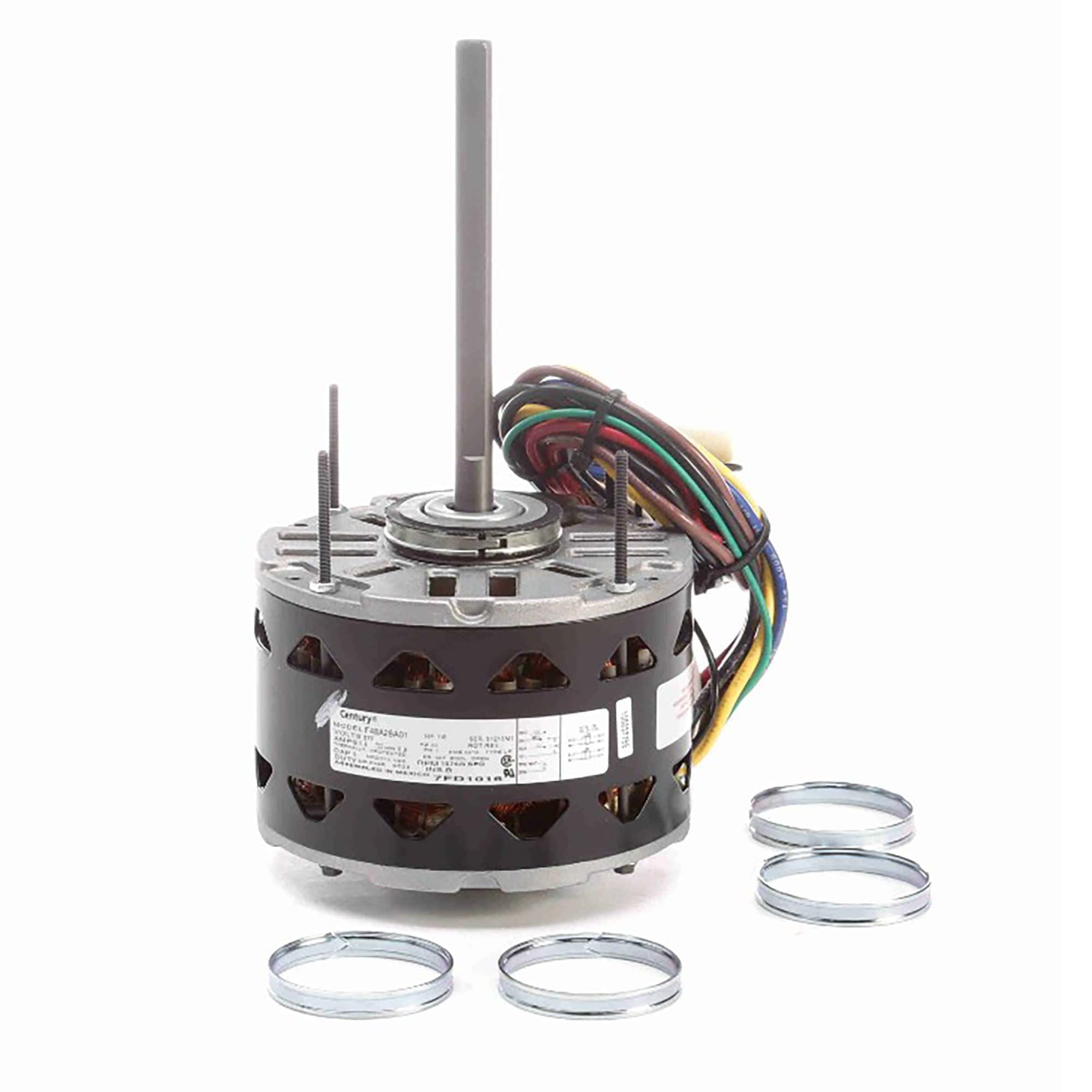

Century Fan / Blower Motor, 1/6 HP, 1 Ph, 277 V, 1075 RPM, 3 Speed, 48 Frame 7FD1016

Century Fan / Blower Motor, 1/6 HP, 1 Ph, 277 V, 1075 RPM, 3 Speed, 48 Frame 7FD1016

Direct Drive Fan & Blower Motor
5.6"" Diameter - 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
Thermally Protected
Open Air Over
Class B Insulation, 50°C Ambient
Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
1/2"" Diameter Double Shaft with Flat
27"" Leads
Extended Studs Shaft End, Resilient Ring Mounting

Phase: 1 Output HP: 1/6 Hp
Output KW: 0.13 kW Voltage: 277 V
Speed: 1075 rpm Service Factor: 1
Frame: 48Y Enclosure: Open Enclosed
Thermal Protection: Automatic Ambient Temperature: 50 °C
Frequency: 60 Hz Current: 0.8 A
Duty: Air Over Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 3
