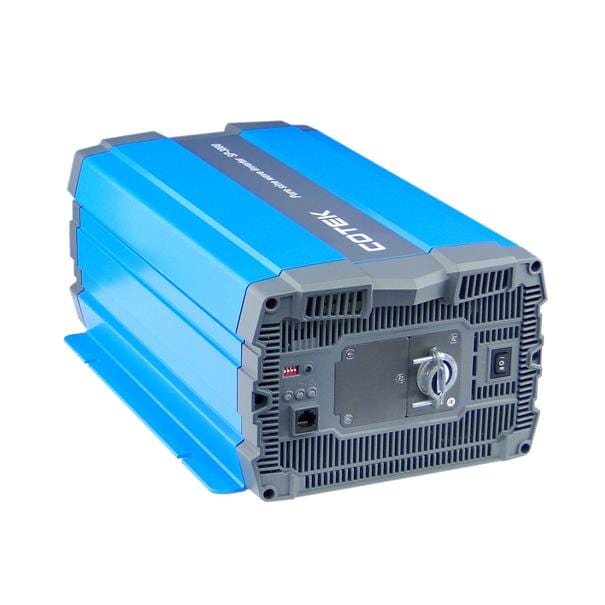

Cotek SP-1000-124 1000 Watt 24 Volt Pure Sine Inverter

accessory (optional)

Remote Control: CR-8 / CR-16A; Transfer Switch: TR-40

ac regulation

┬▒5%

ac voltage

100 / 110 / 115 / 120VAC

brand

Cotek

dc input reverse polarity

By fuse

dc voltage

24VDC

dimensions

7.87"W x 3.27"H x 14.65"D

dry contact terminal

By relay

efficiency

(Max): 93%

emc standards

Certified FCC class B

frequency

50/60 Hz -/+5%

input

21.0 ┬▒0.5VDC (Under - Voltage Protection)

input over - voltage recovery

29.0 ┬▒0.5VDC

input under - voltage recovery

25.0 ┬▒0.5VDC

input voltage

24 Volts

input voltage range

21 - 33 Volts DC

led indicator

Input voltage level, output load level and faulty status

maximum power output

(1 min): >1000VA-1150VA (100%-115%)

no load current

Γëñ0.8A@24VDC

operating temperature

-4 to 104 degrees F (-20 to 40 degrees C)

output overload

Shutdown output voltage, restart to recover

output short

Shutdown output voltage, restart to recover

output voltage

240 Volts

output waveform

Pure Sine Wave (THD<5%@Normal Load)

over temperature

Heat sink temperature over 80┬░C ┬▒5┬░C

power saving mode

<0.06A@24VDC

rated power

1000 VA

regulation

-/+3% AC

remote control terminal

6-port green terminal

safety standards

Certified UL 458

storage temp.

-30┬░C ~ +70┬░C

storage temp. & humidity

10 ~ 95% RH

surge power (max.3 sec)

<1750VA

voltage range

21.0 ~ 33.0VDC

wattage

1000 Watts

waveform

Pure Sine Wave

weight

7.2 lbs
