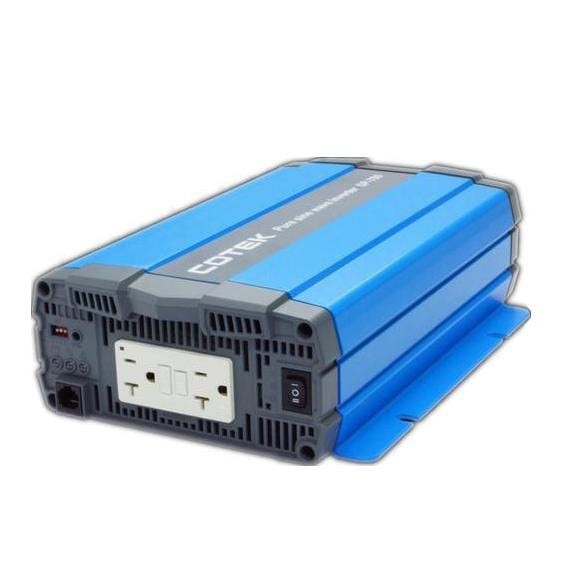

Cotek SP-700-148 700 Watt 48 Volt Pure Sine Inverter

accessory (optional)

Remote Control: CR-8 / CR-16A; Transfer Switch: TR-40

ac regulation

┬▒5%

ac voltage

100 / 110 / 115 / 120VAC

brand

Cotek

dc input reverse polarity

By fuse

dc voltage

48VDC

dimensions

7.87"W x 3.27"H x 12.99"D

dry contact terminal

By relay

efficiency

(Max): 93%

emc standards

Certified FCC class B

frequency

50/60 Hz -/+5%

input

42.0 ┬▒1.0VDC (Under - Voltage Protection)

input over - voltage recovery

58.0 ┬▒1.0VDC

input under - voltage recovery

50.0 ┬▒1.0VDC

input voltage

48 Volts

input voltage range

42 - 66 Volts DC

led indicator

Input voltage level, output load level and faulty status

maximum power output

(1 min): >700VA-810VA (100%-115%)

no load current

Γëñ0.5A@48VDC

operating temperature

-4 to 104 degrees F (-20 to 40 degrees C)

output overload

Shutdown output voltage, restart to recover

output short

Shutdown output voltage, restart to recover

output voltage

100/110/115/120 Volts AC

output waveform

Pure Sine Wave (THD<5%@Normal Load

over temperature

Heat sink temperature over 80┬░C ┬▒5┬░C

power saving mode

<0.05A@48VDC

rated power

700 VA

regulation

-/+5% AC

remote control terminal

6-port green terminal

safety standards

Certified UL 458

storage temp.

-30┬░C ~ +70┬░C

storage temp. & humidity

10 ~ 95% RH

surge power (max.3 sec)

<1230VA

voltage range

42.0 ~ 66.0VDC

wattage

700 Watts

waveform

Pure Sine Wave

weight

6 lbs
