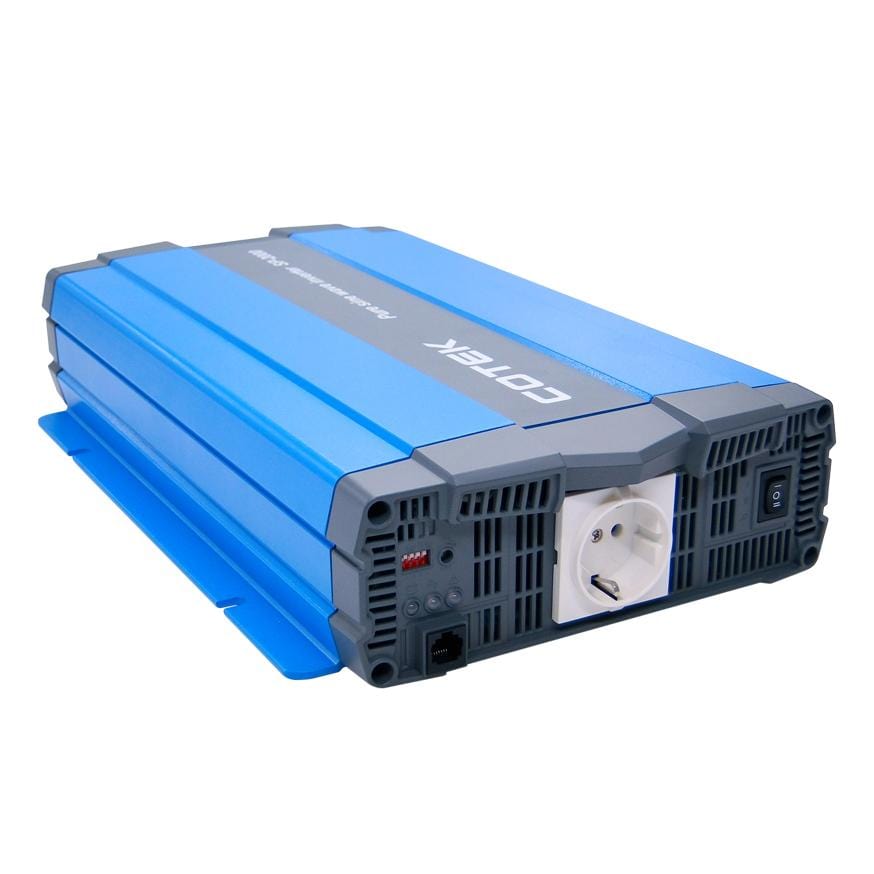

Cotek SP-700-212 700 Watt 212 Volt Pure Sine Inverter

accessory (optional)

Remote Control: CR-8 / CR-16A; Transfer Switch: TR-40

ac regulation

┬▒3%

brand

Cotek

dc input reverse polarity

By fuse

dc voltage

12VDC

dimensions

7.87"W x 3.27"H x 12.99"D

dry contact terminal

By relay

e-mark

Certified CISPR 25 ISO 7637-2

efficiency

(Max): 91%

emc standards

Certified EN 55022 class B; EN 55024 EN 61000-3-2, -3-3 EN 61000-4-2, 3, 4, 5, 6, 8, 11

frequency

50/60 Hz -/+5%

input

10.5 ┬▒0.3VDC (Under - Voltage Protection)

input over - voltage recovery

14.5 ┬▒0.3VDC

input under - voltage recovery

12.5 ┬▒0.3VDC

input voltage

12 Volts

input voltage range

10.5 - 16.5 Volts DC

led indicator

Input voltage level, output load level and faulty status

maximum output current

>700VA~810VA (100%~115%)

maximum power output

(1 min): >700VA-810VA (100%-115%)

no load current

Γëñ1.5A@12VDC

operating temperature

-4 to 104 degrees F (-20 to 40 degrees C)

output

200 / 220 / 230 / 240VAC

output overload

Shutdown output voltage, restart to recover

output short

Shutdown output voltage, restart to recover

output voltage

200/220/230/2400 Volts AC

output waveform

Pure Sine Wave (THD<3%@Normal Load)

over temperature

Heat sink temperature over 80┬░C ┬▒5┬░C

power saving mode

<0.1A@12VDC

rated power

700 VA

regulation

-/+3% AC

remote control terminal

6-port green terminal

safety standards

Certified EN 60950-1

storage temp. & humidity

10 ~ 95% RH

surge power (max.3 sec)

<1230VA

voltage range

10.5 ~ 16.5VDC

wattage

700 Watts

waveform

Pure Sine Wave

weight

6 lbs
