Description

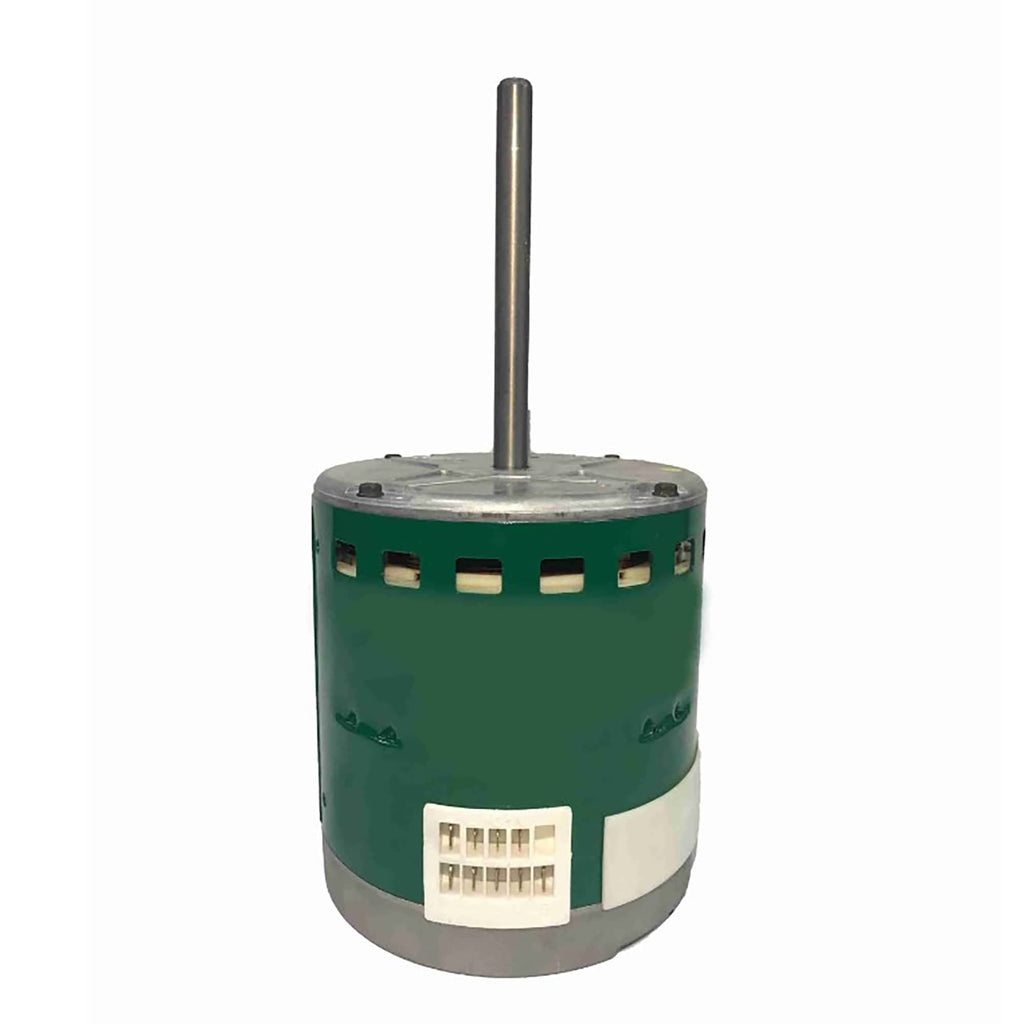

Evergreen EM - Dual Voltage Constant Torque ECM Replacement Blower Motor
Pre-Programmed at the factor * Ready to use out of the box * Increase first time completion * Rotation sensing technology
5.6" Diameter - 48 Frame, Electronically Commutated (ECM), Electronically Protected
Up to five constant torque settings controlled by 24 VAC inputs
Fully variable (PWM compatible) from 600-1100 RPM
Open Air Over, Class B Insulation, 45°C Ambient
Ball Bearing
Shaft: Single, 1/2” diameter, 5” length, 4.5” single flat
42" Leads
Belly Band Mount (Belly Band Not Included)
Phase: 1
Output HP: 1 Hp
Output KW: 0.75 kW
Voltage: 115/208-230 V
Speed: 1050 rpm
Service Factor: 1
Frame: 48
Enclosure: Open Air Over
Thermal Protection: Thermally Protected
Ambient Temperature: 40 °C
Frequency: 60 Hz
Current: 12.2/9.0 A
Duty: Continuous Air Over
Insulation Class: B
UL: No
CSA: N
CE: N
Number of Speeds: 1
