Description

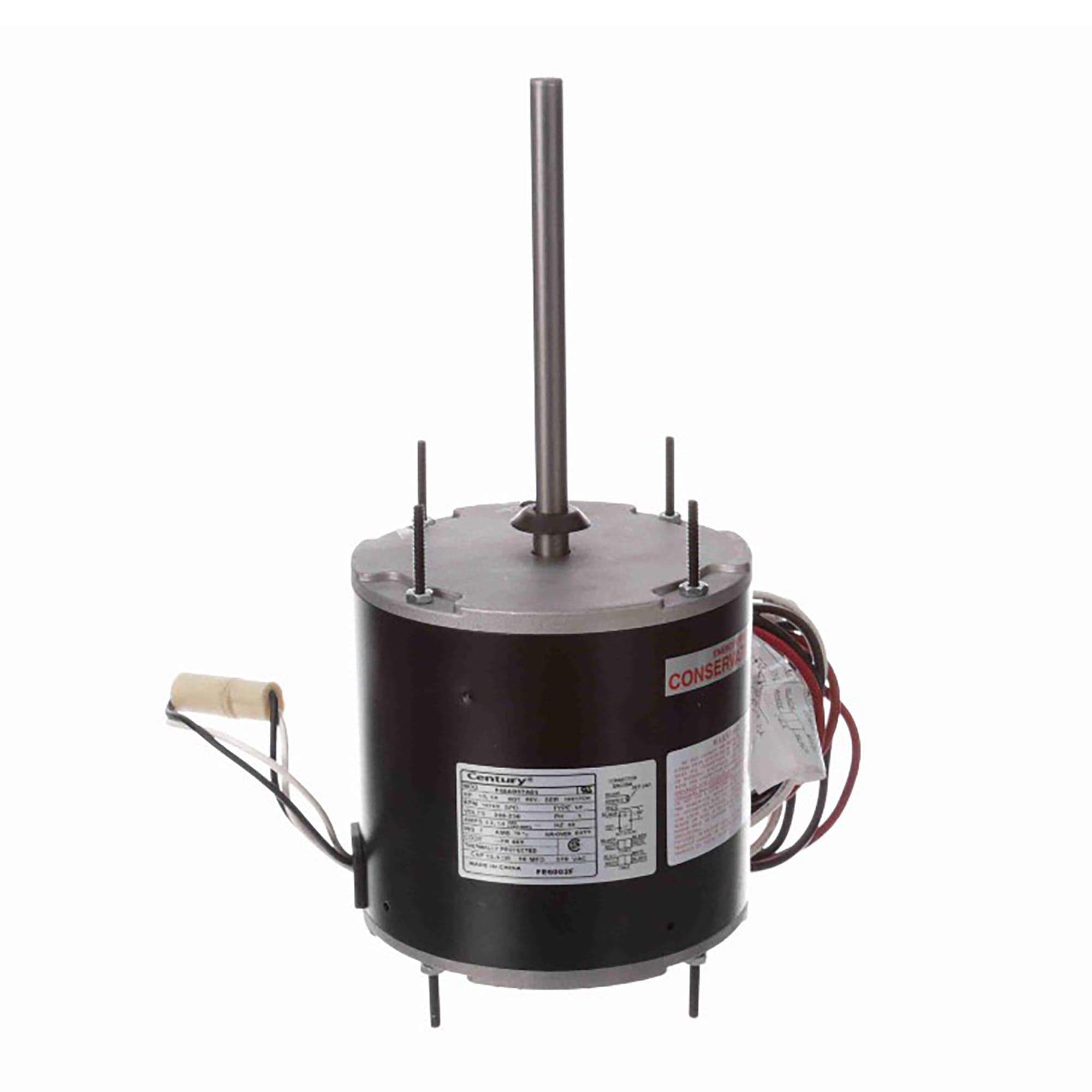

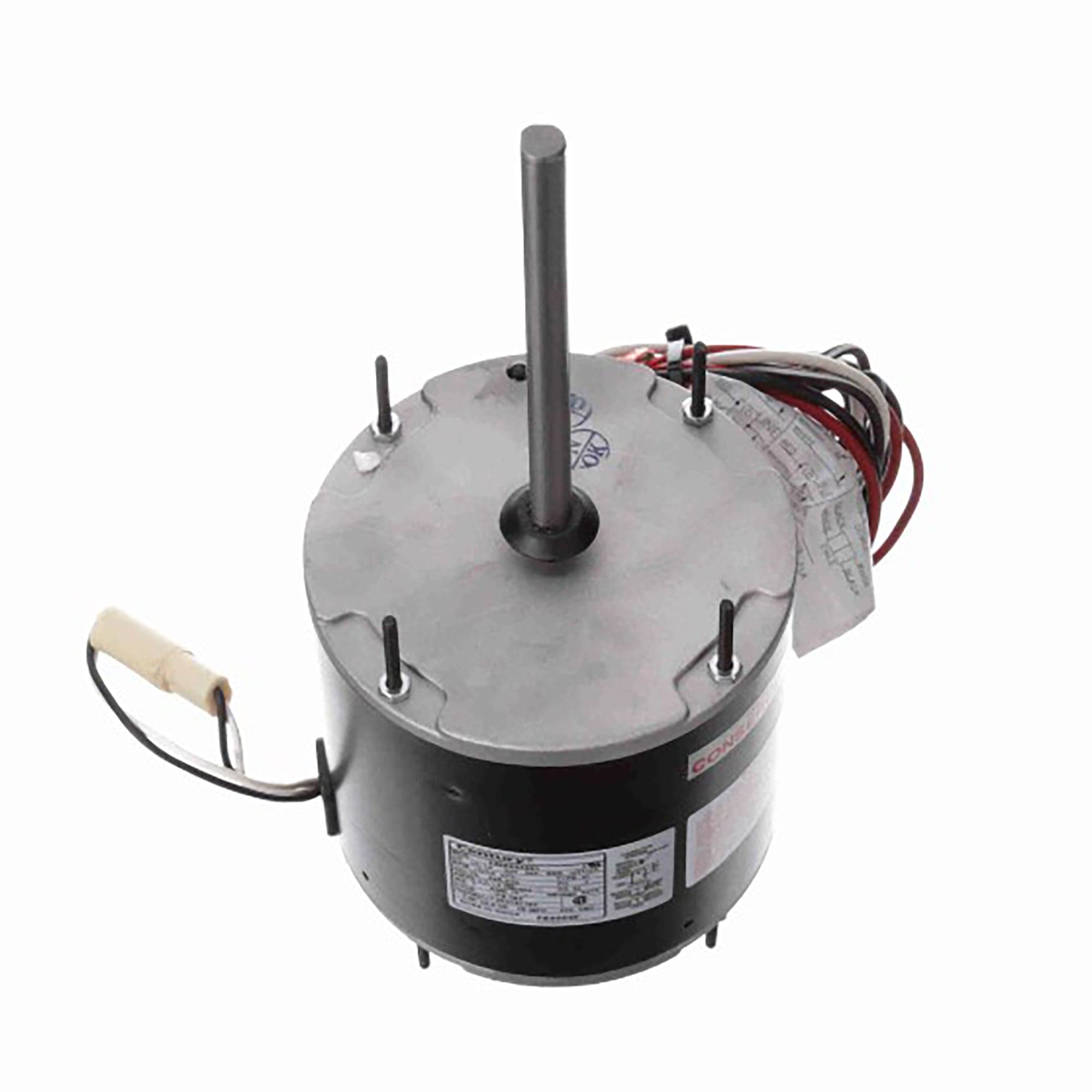

Century MASTERFIT PRO® Condenser Fan Motor, 1/2,1/4 HP, 1 Ph, 60 Hz, 208-230 V, 1075 RPM, 2 Speed, 48 Frame, TEAO - FE6002F
5.6" Diameter - 48 Frame
Permanent Split Capacitor (PSC); Capacitor Required: 12.5or 10 Mfd-370 Volts (Supplied with Motor)
Thermally Protected
Totally Enclosed Air Over
Class F Insulation, 70°C Ambient
Ball Bearing
1/2" Diameter Shaft with Double Flat
48" Leads with Quick Connect Terminals
Extended Studs Shaft End, Mounting Holes in Shell, 4.33BC Lead End End-Frame, Belly Band Mount (Belly Band Not Included)
Phase: 1
Output HP: 1/2,1/4 Hp
Output KW: 0.37 kW
Voltage: 208-230 V
Speed: 1075 rpm
Service Factor: 1
Frame: 48
Enclosure: Totally Enclosed Air Over
Thermal Protection: Automatic
Ambient Temperature: 70 °C
Frequency: 60 Hz
Current: 3.2,1.6 A
Duty: Air Over
Insulation Class: F
UL: Recognized
CSA: Y
CE: N
Number of Speeds: 2
