Description

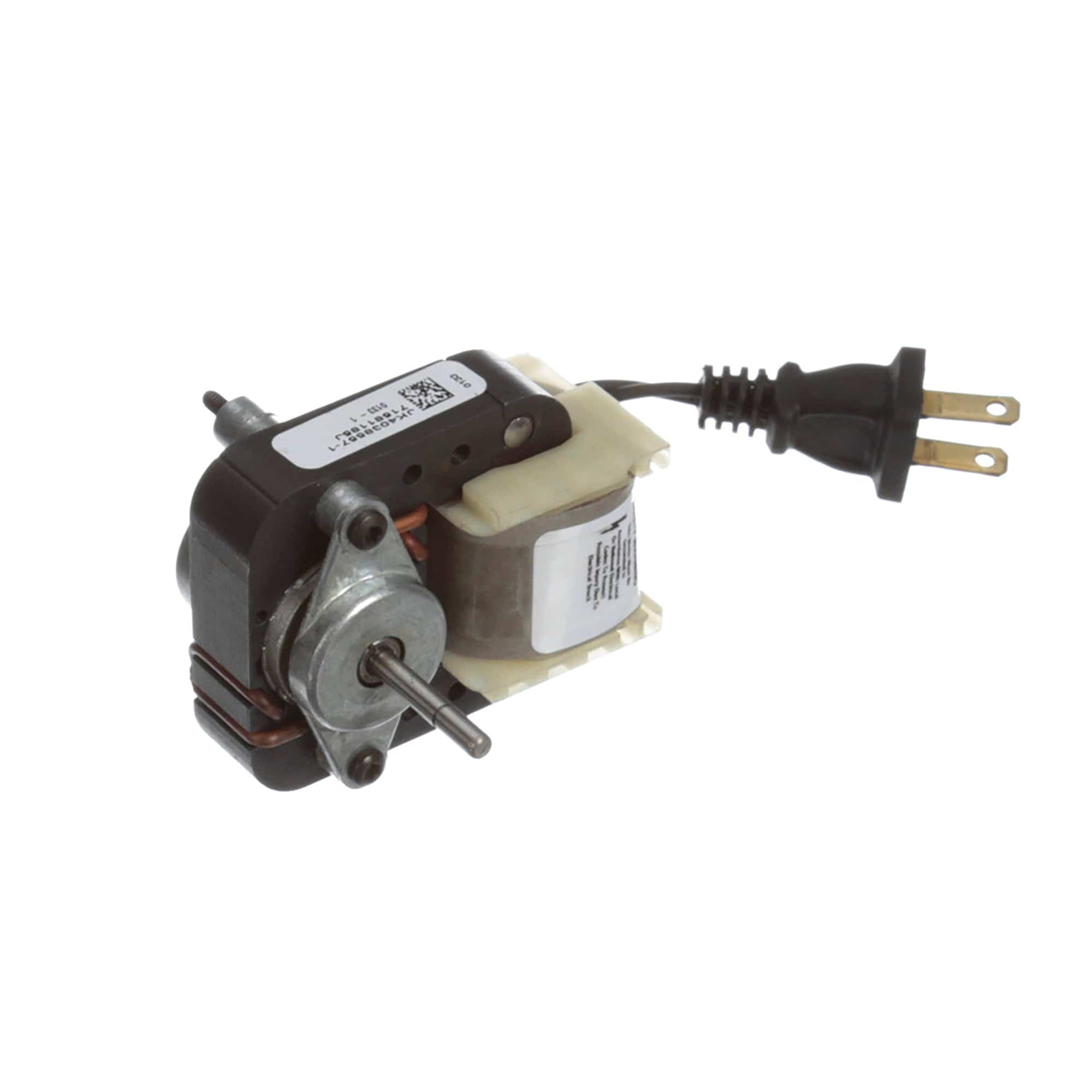

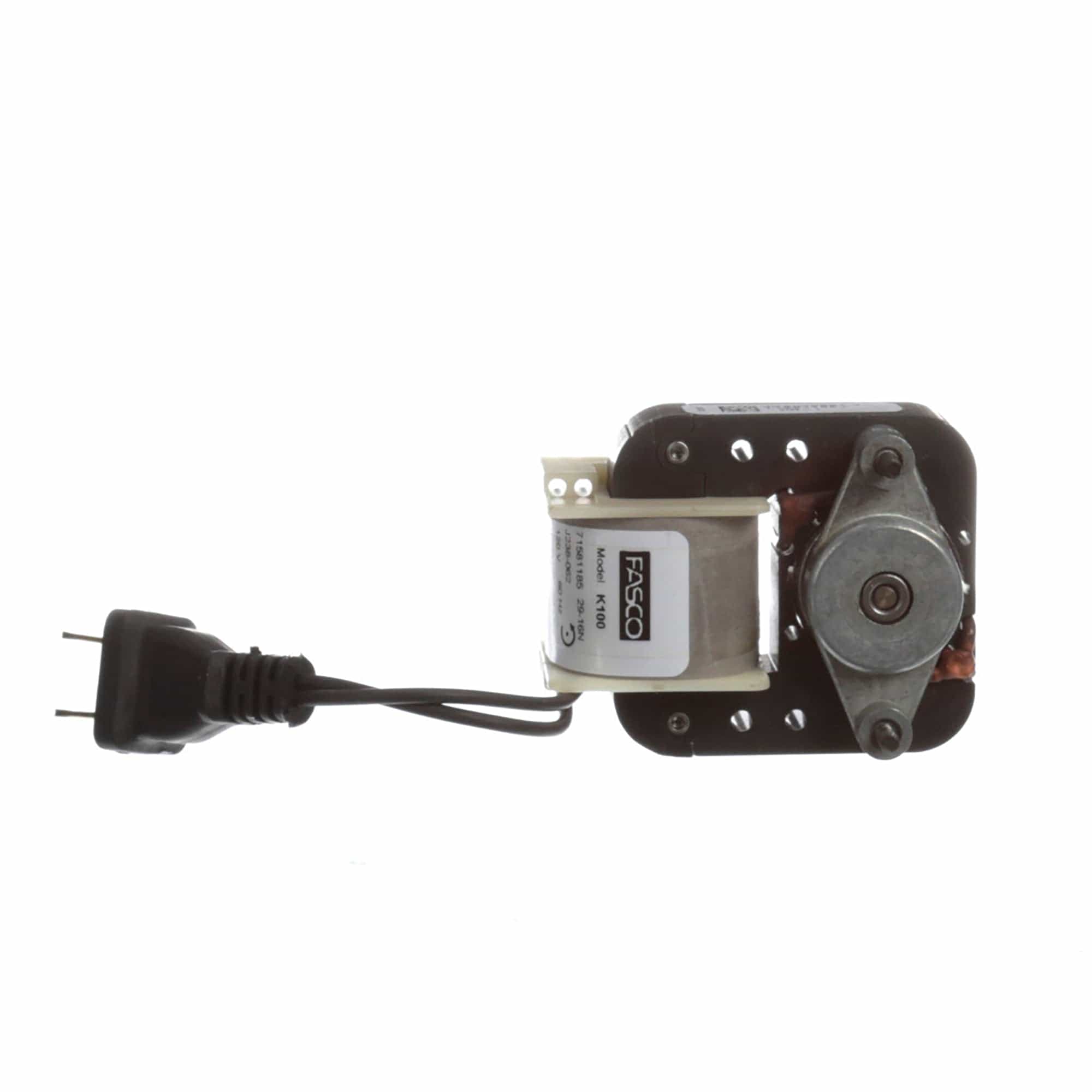

Fasco 1/100 HP C-Frame / Skeleton Motor, 2850 RPM, 120 Volts K100
OEM Direct Replacement Motor
C-Frame
Shaded Pole
Thermally Protected, One-Shot Fuse
Open Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
.1811" Diameter Shaft
4.75"/3.75" Leads with Molded Plug
Extended Studs Opposite Shaft End
Phase: 1 Output HP: 1/100 Hp
Output KW: 0.01 kW Voltage: 120 V
Speed: 2750 rpm Service Factor: 1
Frame: C-FRAME Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: .73 A
Duty: Air Over Insulation Class: B
UL: Recognized CSA: N
CE: N Number of Speeds: 1
