Description

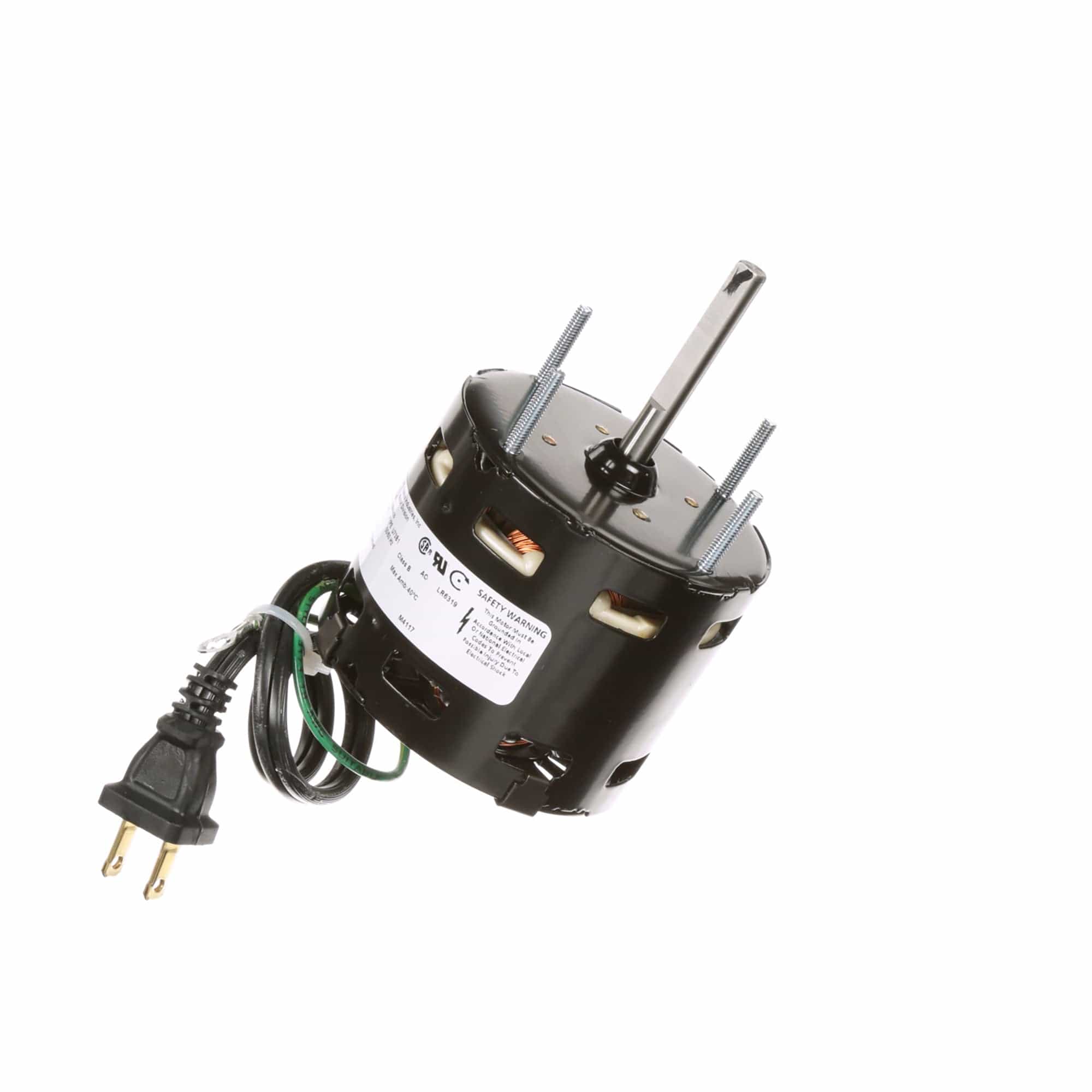

Fasco OEM Replacement Motor, 1/65 HP, 1 Ph, 60 Hz, 115 V, 1590 RPM, 1 Speed, 3.3" Diameter, OAO - D1117
OEM Direct Replacement Motor
3.3" Diameter
Shaded Pole
Thermally Protected
Enclosed Shaft End End-Frame, Open Lead End End-Frame and Shell, Air Over
Class B Insulation, 40°C Ambient
Sleeve Bearing
5/16" Diameter Shaft with Flat
11" Leads Molded Plug
Extended Studs Shaft End
Phase: 1 Output HP: 1/65 Hp
Output KW: 0.01 kW Voltage: 115 V
Speed: 1590 rpm Service Factor: 1
Frame: 3.3 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 0.6 A
Duty: Air Over Insulation Class: B
UL: Recognized CSA: Y
CE: N Number of Speeds: 1
