Magnum MM612AE 600 Watt 12 Volt Modified Sine Wave Inverter Charger
Roll over image to zoom in Click on image to zoom
Magnum MM612AE 600 Watt 12 Volt Modified Sine Wave Inverter Charger

Magnum MM612AE 600 Watt 12 Volt Modified Sine Wave Inverter Charger

Save $20.00
Magnum DimensionsSKU: MM612AE
Price:
$535.00 $555.00
Stock:
Sold out
Free Shipping* (Some exclusions apply)true
 More payment options

Description

The Magnum MM612AE is a modified sine wave inverter with a 30 amp power factor corrected (PFC) charger that provides a cost effective solution for those with smaller power needs in mobile applications.

Specifications

continuous current output 5 AAC
continuous output power at 25 degrees C (with 1.0 PF): 600 VA
dimensions 16.6"L x 8.4"W x 4.7"H (42 cm x 21 cm x 12 cm)
efficiency 85% (Charger)
input current 80 ADC (Maximum Continuous)
input current at rated output (AC amps): 4
input voltage range 9 to 16 VDC
max operating altitude 15,000 (4570 m)
nominal ac output voltage 120 VAC - 5%
nonoperating temperature -40 degrees C to +70 degrees C (-40 degree sF to 158 degrees F)
no load (120 VAC output, typical): 10 watts
operating humidity 0 to 95% RH non condensing
operating temperature -20 degrees C to +60 degrees C (-4 degrees F to 140 degrees F)
output frequency and accuracy 60 Hz - 0.1 Hz
output voltage 12 Volt
peak efficiency 0.95
power factor >0.95
search mode 3 watts
transfer relay rating 20 AAC (input current for charging and pass through)
transfer time 16 msecs
type Modified Sine Wave
wattage 600 Watts
waveform Modified Sine Wave
weight 16 lb (7.3 kg)

You May Also Like

Magnum Dimensions CMW3012-H 3000 Watt 12 Volt Modified Sine Wave Inverter
Magnum Dimensions Magnum Dimensions CMW3012-H 3000 Watt 12 Volt Modified Sine Wave Inverter
$547.00
In stock
Save $32.00
Aims PWRCUP120 12 Volt 120 Watt Modified Sine Wave Inverter
AIMS Power Aims PWRCUP120 12 Volt 120 Watt Modified Sine Wave Inverter
$44.00 $76.00
In stock
Save $2.00
AIMS PICOGLF6W12V120V 600 Watt Inverter Charger
AIMS Power AIMS PICOGLF6W12V120V 600 Watt Inverter Charger
$674.00 $676.00
In stock
Save $192.00
Aims PICOGLF20W12V120V 2000 Watt 12 Volt Low Frequency Pure Sine Wave Inverter ChargerAims PICOGLF20W12V120V 2000 Watt 12 Volt Low Frequency Pure Sine Wave Inverter Charger
AIMS Power Aims PICOGLF20W12V120V 2000 Watt 12 Volt Low Frequency Pure Sine Wave Inverter Charger
$1,501.00 $1,693.00
In stock
Aims PICOGLF40W12V120V 4000 Watt 12 Volt Low Frequency Pure Sine Inverter Charger
AIMS Power Aims PICOGLF40W12V120V 4000 Watt 12 Volt Low Frequency Pure Sine Inverter Charger
$1,983.00
In stock
AIMS Power PICOGLF30W12V120VR 3000 Watt 12V Pure Sine Inverter Charger
AIMS Power AIMS Power PICOGLF30W12V120VR 3000 Watt 12V Pure Sine Inverter Charger
$1,639.00
In stock
AIMS Power PICOGLF15W12V120VR 1500W Pure Sine Inverter Charger
AIMS Power AIMS Power PICOGLF15W12V120VR 1500W Pure Sine Inverter Charger
$1,145.00
In stock
Save $156.00
Aims PICOGLF10W12V120V 1000 Watt 12 Volt Low Frequency Pure Sine Inverter Charger
AIMS Power Aims PICOGLF10W12V120V 1000 Watt 12 Volt Low Frequency Pure Sine Inverter Charger
$1,140.00 $1,296.00
In stock
Samlex SAM-1500C-12 Modified Sine Wave Inverter Charger With 15 Amp Battery Charger
Samlex America Samlex SAM-1500C-12 Modified Sine Wave Inverter Charger With 15 Amp Battery Charger
$422.00
In stock
Aims PICOGLF40W24V120V 4000 Watt 24 Volt Low Frequency Pure Sine Wave Inverter Charger
AIMS Power Aims PICOGLF40W24V120V 4000 Watt 24 Volt Low Frequency Pure Sine Wave Inverter Charger
$2,028.00
In stock

Recently viewed

Save $14.00
Johnson Pump 10-24504-04 CM30P7-1 24v Circulation Pump DIA20
Johnson Pump Johnson Pump 10-24504-04 CM30P7-1 Circulation Pump, 24 Volt, DIA20
$165.00 $179.00
Sold out

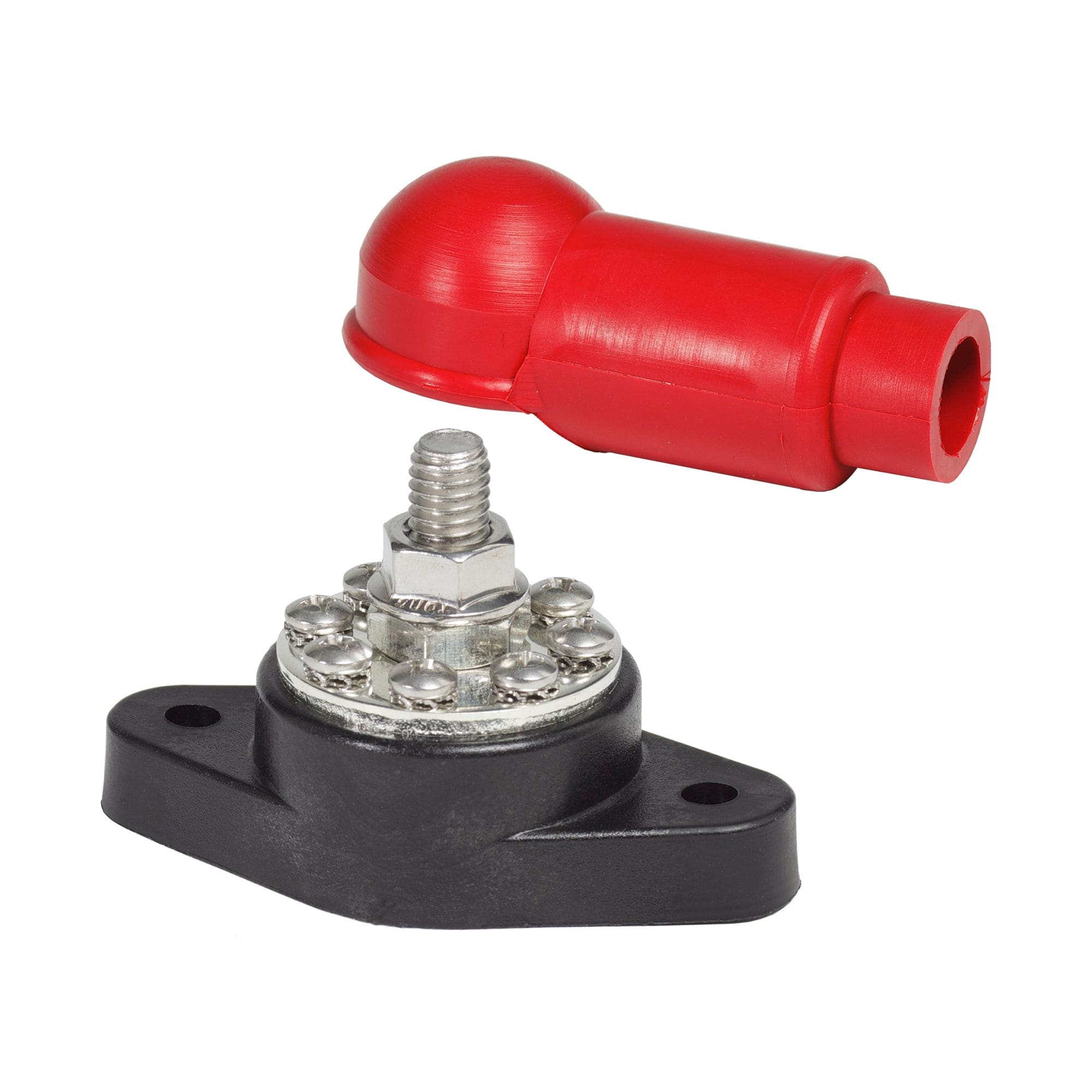

Power Post Plus 5/16in 150A, 48VDC 2102-BSS Blue Sea Systems
