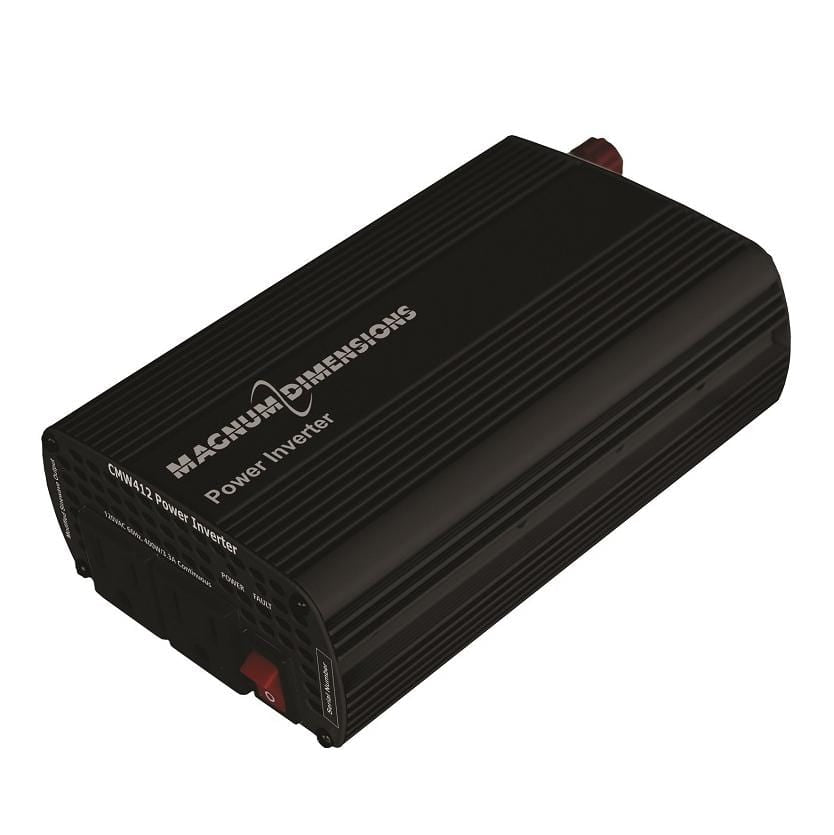

Magnum Dimensions CMW412 400 Watt 12 Volt Modified Sine Wave Inverter

brand

Magnum Dimensions

continuous current output

at 12.5 Volts: 38 Amps

continuous output power

at nominal DC voltage: 400 watts

dimensions

7.3"L x 4.1"W x 2.1"H

high voltage shutdown

15.5 VDC

input current

193 DCA

input voltage

12 Volts

input voltage range

DC: 10.5 - 15.5 VDC

no load draw

< 1.2 ADC

operating temperature

-0 degrees C to +40 degrees C (32 degrees F to 104 degrees F)

optimal efficiency

> 90%

output current

AC: 3.3 AAC

output frequency

AC: 60 Hz +/- 0.5 Hz

output voltage

120 Volts

output voltage range

AC: 104 - 127 VAC

peak surge current

800 watts

wattage

3000 Watts

waveform

Modified Sine Wave

weight

1.6 lbs
