Description

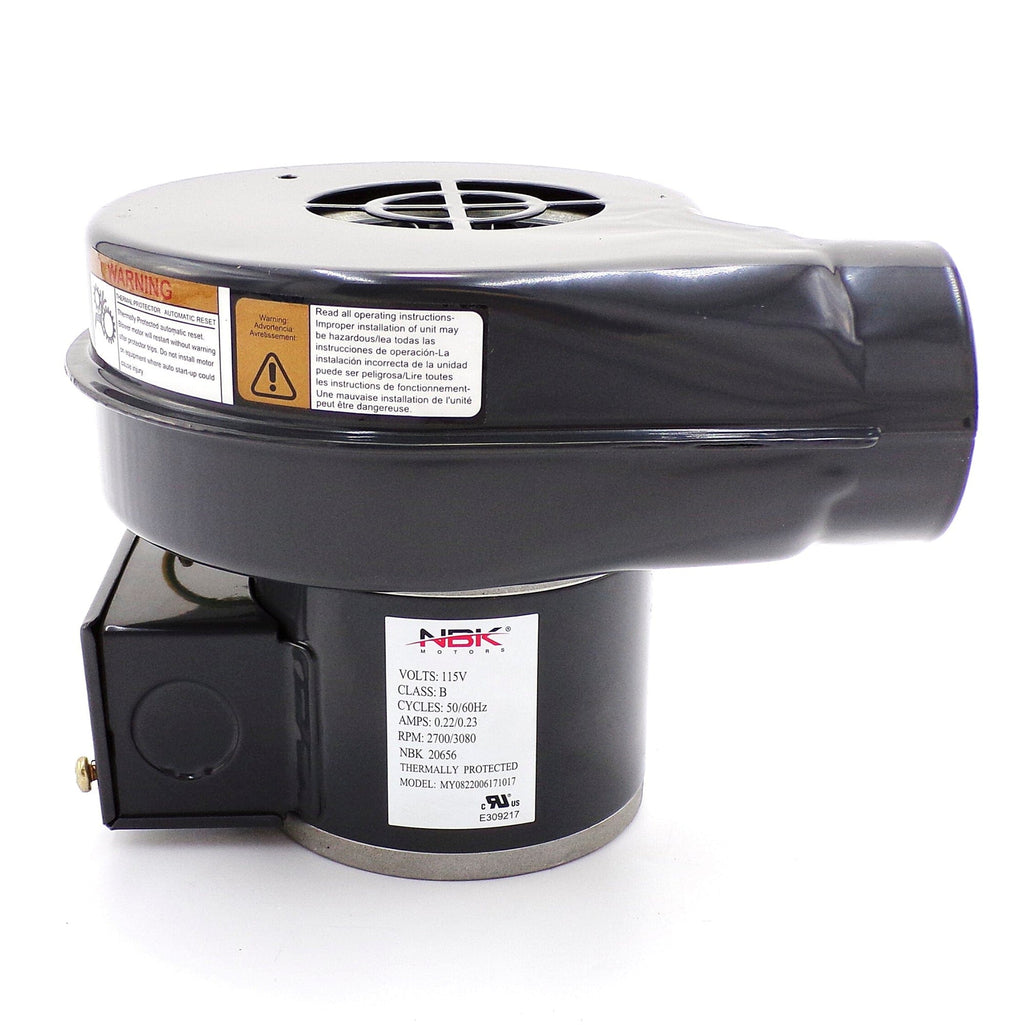

The NBK 20656 Blower Motor is a reliable and efficient solution designed for optimal performance, operating at 115 volts with a versatile 50/60 Hz frequency. This motor serves as a direct replacement for the Dayton 1TDN6, ensuring a seamless upgrade for your ventilation system.
- Replaces Dayton 1TDN6
- Thermally Protected
- Open Motor Enclosure
- Non-Flanged outlet type
Warning: Product may contain materials cautioned by California Proposition 65
Specifications
| Amps | 0.22/0.23 |
| Bearing | Ball |
| Class | B |
| Cycles | 50/60 Hz |
| Dimensions | 12" x 10" x 8" (LxWxH) |
| Horsepower | 1/125 |
| Maximum Ambient Temperature | 104 °F |
| Motor IP Rating | IP20 |
| Phase | 1 |
| Rotation | CCW |
| RPM | 2700/3080 |
| Votls | 115 |
| Warranty | 1 Year Limited Manufacturer |
| Weight | 8 Lbs |
| Wheel Diameter | 3 inches |
| Maximum Inlet Air Temperature | 104 °F |
| Minimum Ambient Temperature | -10 °C |
| Mounting Orientation | Multi-Position |
| Outlet Shape | Round |
