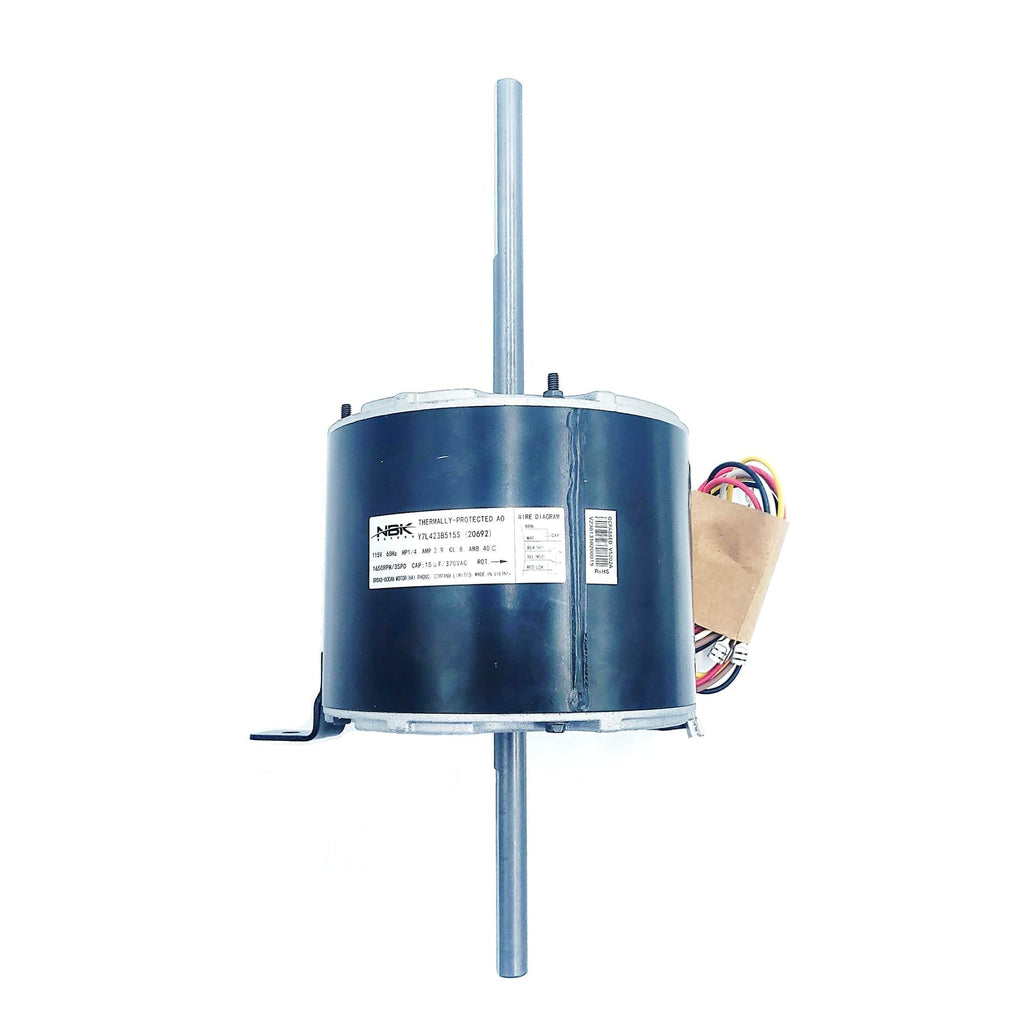

NBK 20692 Fan Motor 1/4 Hp, 115v Replaces Dometic 3314471.011 (Penguin II)
Roll over image to zoom in Click on image to zoom
NBK 20692 Fan Motor 1/4 Hp, 115v Replaces Dometic 3314471.011 (Penguin II)

NBK 20692 Fan Motor 1/4 Hp, 115v Replaces Dometic 3314471.011 (Penguin II)

NBK PartsSKU: NBK-20692
Price:
$197.00
Stock:
Sold out
Free Shipping* (Some exclusions apply)
 More payment options

Compatibility

Dometic or Duo-Therm Penguin II Roof Top Air Conditioners
641815
641835
641816
641915
641916
641935

Description

The NBK 20692 Fan Motor delivers powerful cooling with its 1/4 horsepower and operates at a reliable 115 volts, offering a superior replacement for the Dometic 3314471.011 (Penguin II) model. Upgrade your RV's air conditioning system with this high-performance fan motor for enhanced efficiency and comfort.

  • 3 Speed Function: Low , Medium , High
  • Motor Type is equivalent to Genteq F48AE48A61

Replaces Dometic 3314471.011 (Penguin II)

Warning: Product may contain materials cautioned by California Proposition 65


Specifications

Amps Max Load 3.7 A
Dimensions (Motor Body) 5-5/8" (Diameter) x 4-5/8" (Thick)
Connection Style Wiring to connect to a capacitor and a built-in control board
dimensions 18" x 13" x 12" (LxWxH)
Horsepower 1/4
Volts 115 VAC
Weight 15 Lbs

You May Also Like

Dometic 3310522.002 A/C 1/4 HP Fan Motor
Dometic Dometic 3310522.002 A/C 1/4 HP Fan Motor
$376.00
In stock
Save $20.00
Fan Motor 1/5 HP, 115V Replaces AO Smith ORV4540 NBK 20521
AO Smith Fan Motor 1/5 HP, 115V Replaces AO Smith ORV4540 NBK 20521
$197.00 $217.00
In stock
Save $14.00
NBK 20370 Fan Motor 1/5 Hp Replaces Dometic 3313107.041
NBK Parts NBK 20370 Fan Motor 1/5 Hp Replaces Dometic 3313107.041
$171.00 $185.00
In stock
Save $18.00
NBK 20798 Fan Coil Motor 1/2 Hp 208/230 Replaces Century RA1056
NBK Parts NBK 20798 Fan Coil Motor 1/2 Hp 208/230 Replaces Century RA1056
$214.00 $232.00
In stock
Save $9.00
NBK 20614 Motor 1/8 HP 115V, 1550 RPM, 2.60 AMP Replaces PACKARD 90318
NBK Parts NBK 20614 Motor 1/8 HP 115V, 1550 RPM, 2.60 AMP Replaces PACKARD 90318
$126.00 $135.00
In stock

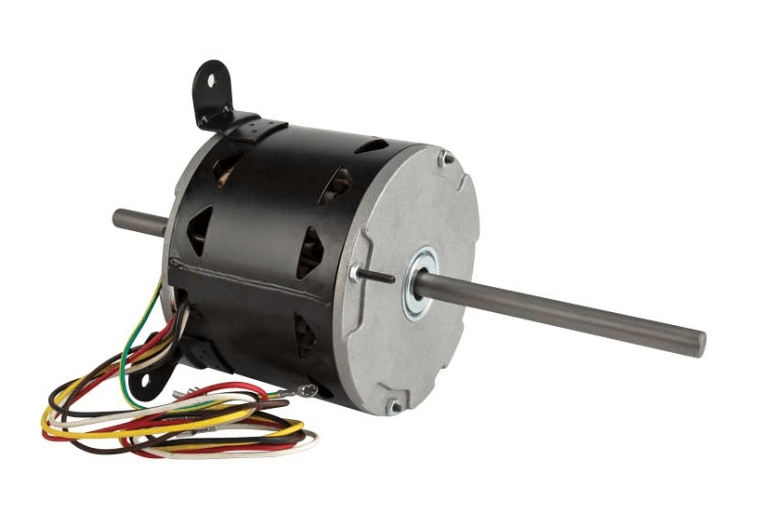

Dometic Duo-Therm OEM Penguin II Fan Motor Assembly 9105305777 - 3314471.004
Dometic Dometic Duo-Therm OEM Penguin II Fan Motor Assembly 9105305777 - 3314471.004
$309.00
In stock
NBK 20435 Fan Motor 1/5 Hp, 115V, 60Hz, 3.3A, 1585 RPM for Brisk Air II A/C
NBK Parts NBK 20435 Fan Motor 1/5 Hp, 115V, 60Hz, 3.3A, 1585 RPM for Brisk Air II A/C
$160.00
In stock
Save $22.00
NBK 20735 Condenser Motor 208-230v, 1075 Rpm, 3/4-1/4 Hp Replaces Century FE6004F
NBK Parts NBK 20735 Condenser Motor 208-230v, 1075 Rpm, 3/4-1/4 Hp Replaces Century FE6004F
$223.00 $245.00
In stock
Save $24.00
Dometic 3314471.011 Penguin II Fan Motor Assembly
Dometic Dometic 3314471.011 Penguin II Fan Motor Assembly
$278.00 $302.00
In stock
Save $31.00
Dometic 3310424.000 RV Air Conditioner Fan Motor
Dometic Dometic 3310424.000 RV Air Conditioner Fan Motor
$344.00 $375.00
In stock

Recently viewed

Bulletproof Hitches MD254 2.5" Medium Duty 4" Drop/Rise Hitch
Bulletproof Hitches Bulletproof Hitches MD254 2.5" Medium Duty 4" Drop/Rise Hitch
$364.00
In stock

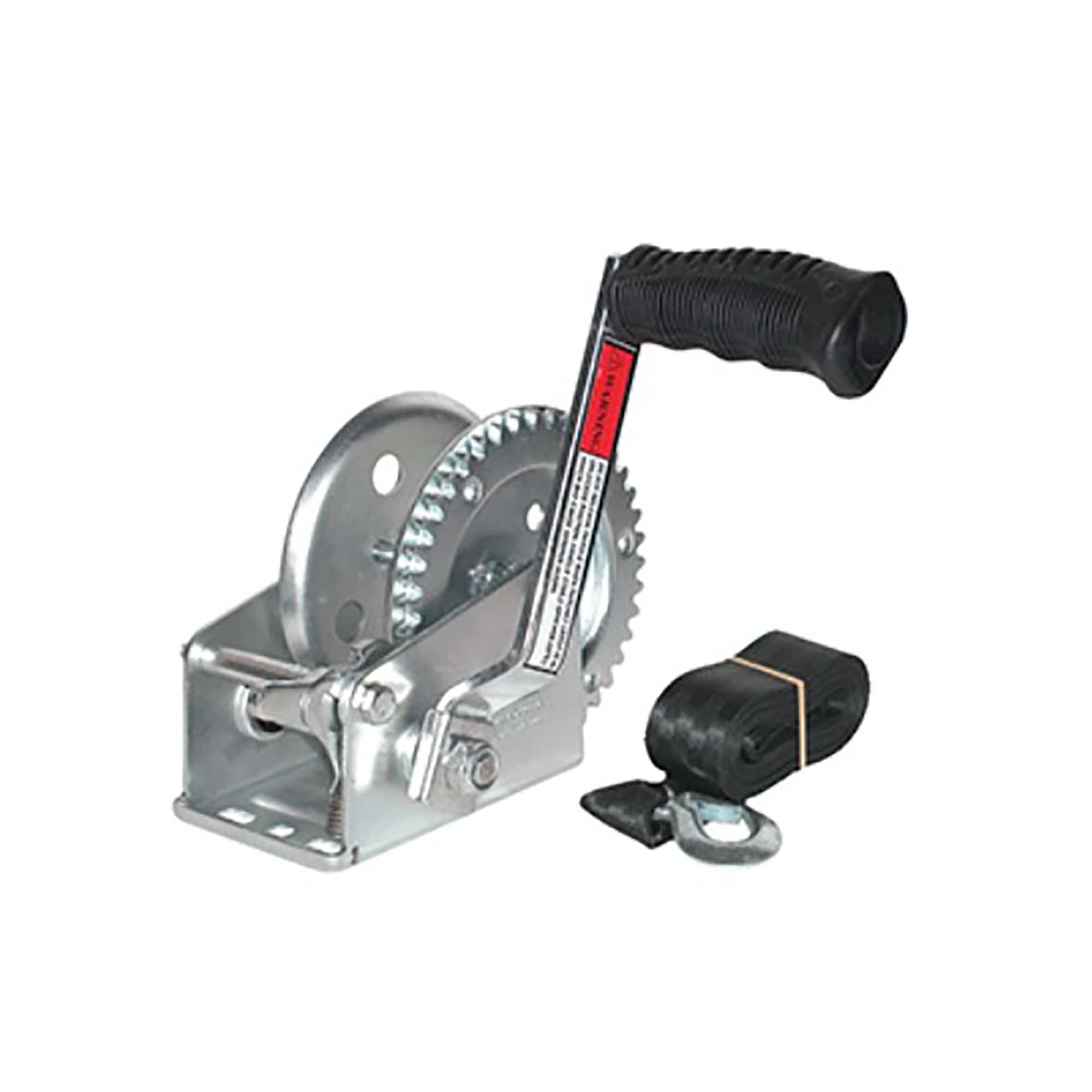

1400 lb 4:1 Ratio Solid Gear Trailer Winch, 20" L x 2" W Strap JIF Marine W1400D
