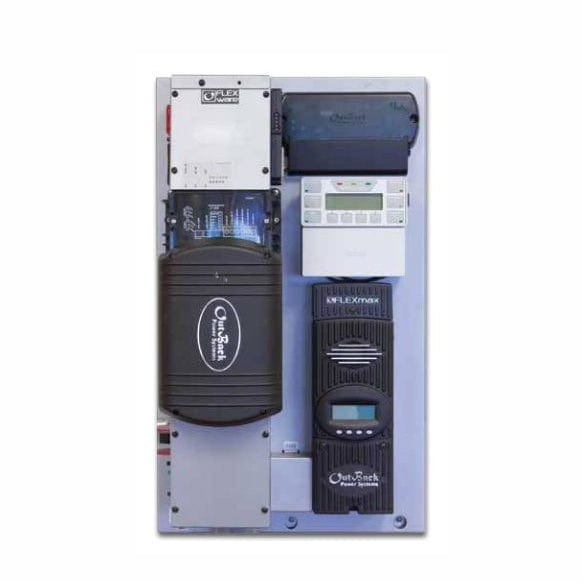

OutBack Power FP1 VFXR3524A-01 FLEXpower One 3,500 Watts 24 Volts for Off-Grid and Grid-Tie

accessory ports

Remote temperature sensor (included), MATE3s and HUB communications

ac input frequency range

54 to 66Hz (45 to 55Hz)

ac input voltage range

(MATE Adjustable) 85 to 140VAC

ac output frequency

(selectable) 60Hz (50Hz)

ac output voltage

(slectable) 120VAC (100 to 130VAC)

advanced battery charging

Flooded, gel, AGM, lithium-ion and flow chemistry

battery charge output

82ADC

certifications

UL1741, CSA C22.2 No. 107.1, UL1778, Annex FF

continuous ac output current

(@ 25┬░C) 29.2AAC

continuous rating

(@ 25┬░C) 3500VA

dc input voltage range

21 to 34VDC

efficiency

0.92

grid-interactive frequency

59.3 to 60.5Hz

grid-interactive voltage range

106 to 132VAC

humidity

Rating 93%

idle power

Full: ~34W Search: ~9W Off: ~3W

instantaneous power

(100ms) 600VA

maximum ac input current

60AAC

maximum battery charging

AC: 20AAC DC: 82ADC Power: 2230VA

nominal dc input voltage

24VDC

output voltage regulation

┬▒2.5%

peak power

(30 Min) 4000VA

surge power

(5 Sec) 5400VA

temperature range

Rated: ΓÇô20 to 50┬░C Operating: ΓÇô40 to 60┬░C Storage: ΓÇô40 to 60┬░C

warranty

Standard 5 year, extended 10 year available
