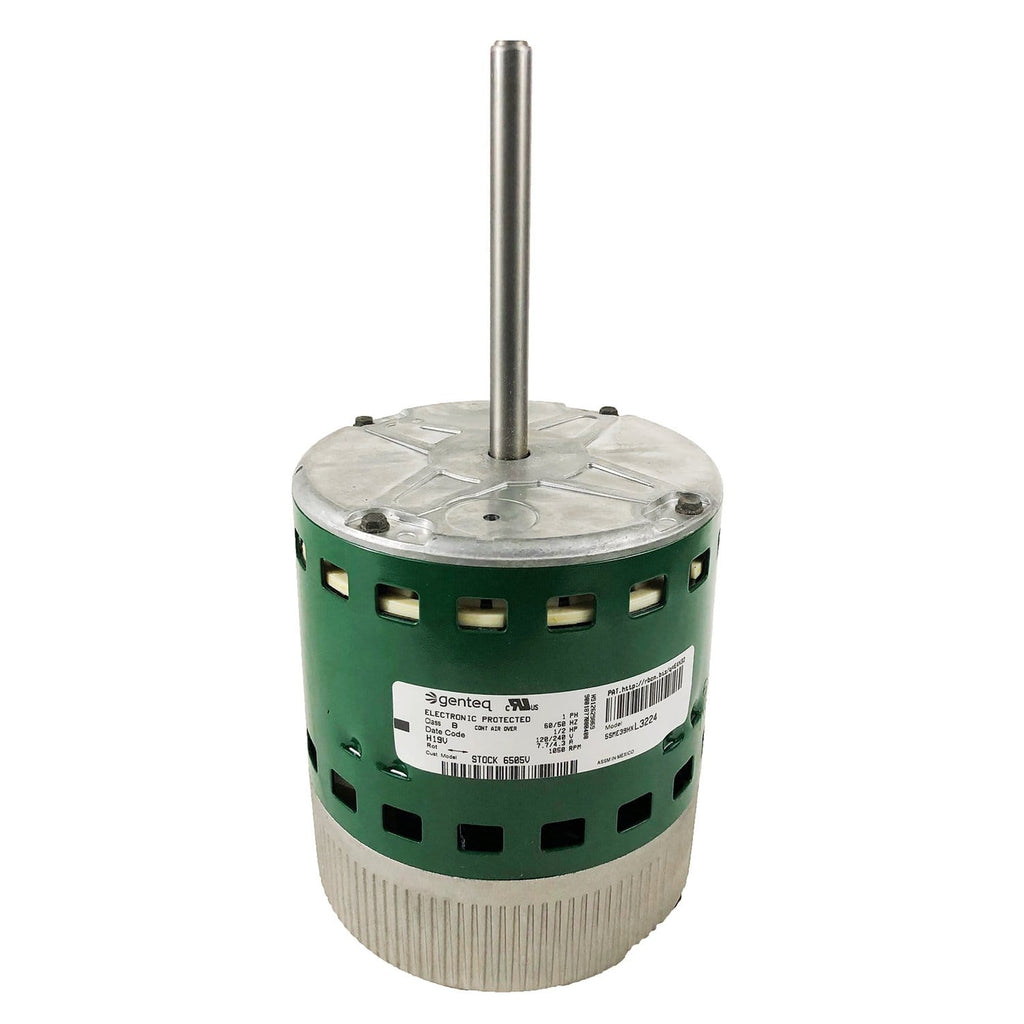

Genteq EVERGREEN® VS Fan and Blower Motor, 1/2 HP, 1 Ph, 60 Hz, 120/240 V, 1050 RPM, 1 Speed, 48 Frame, OPAO - 6505V
Evergreen VS - ECM Variable Speed Replacement Motor
5.6" Diameter - 48 Frame
Electronically Commutated (ECM)
Electronically Protected
Open Air Over
Class B Insulation, 55°C Ambient
Ball Bearing
1/2" Diameter Shaft with Flat
36" Leads
***Application May Require User Interface Catalog Number 5K010 or 5K010V. For Additional Information Refer to “Evergreen® VS Motors” Product Page, or Search “Motor Cross Reference” in “Tools & Resources” for OEM Replacement Cross.
Phase: 1 Output HP: 1/2 Hp
Output KW: 0.37 kW Voltage: 120/240 V
Speed: 1050 rpm Service Factor: 1
Frame: 48 Enclosure: Open Air Over
Thermal Protection: Thermally Protected Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 7.7/4.3 A
Duty: Continuous Air Over Insulation Class: B
UL: No CSA: N
CE: Y Number of Speeds: 1
