Century FB1056 1/2 HP 48 Frame Condenser Fan Motor 208-230/460 Volts 1075 RPM
Roll over image to zoom in Click on image to zoom
Century FB1056 1/2 HP 48 Frame Condenser Fan Motor 208-230/460 Volts 1075 RPMCentury FB1056 1/2 HP 48 Frame Condenser Fan Motor 208-230/460 Volts 1075 RPM

Century FB1056 1/2 HP 48 Frame Condenser Fan Motor 208-230/460 Volts 1075 RPM

Save $16.00
CenturySKU: FB1056
Price:
$592.00 $608.00
Stock:
In stock (2 units)
Free Shipping* (Some exclusions apply)true
 More payment options

Description

This is a Century condenser fan motor

  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor
  • Thermally Protected
  • Open Lead End End-Frame, Shell Half Vented Lead End, Enclosed Shaft End End-Frame, Air Over
  • Class B Insulation, 60°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Flat
  • Conduit Box
  • Resilient Base

Direct Replacement For:

  • Industry No. F48SQ6V706

Warning: Product may contain materials cautioned by California Proposition 65

Specifications

Bearings Ball
Diameter (In.) 5-5/8
Enclosure Open
Frame 48
H.P. 1/2
Max. Amps @ 230 Volt: 4.0A
Motor type Permanent Split Capacitor
Mounting Resilient Base
Overload Protection Automatic
Phase 1
Rotation Reversible
RPM 1075
Service Factor 1.00
Shaft Diameter (in.) 1/2
Shaft Dimensions (in.) 5/8 x 5
Shaft Length (in.) 5
Shafts 1
Speeds 1
Voltage 230V/460V

You May Also Like

Save $39.00
Condenser Fan Motor, 1/2-1/5 HP, 460 V, 1075 RPM, 48 Frame - ORM4659BF
Century Condenser Fan Motor, 1/2-1/5 HP, 460 V, 1075 RPM, 48 Frame - ORM4659BF
$460.00 $499.00
Save $14.00
Condenser Fan Motor, 1/3, 1/5 HP 208-230V, 825 RPM Century FE6001F
Century Condenser Fan Motor, 1/3, 1/5 HP 208-230V, 825 RPM Century FE6001F
$216.00 $230.00
Save $46.00
Century RA1036WB 5-5/8" Dia. Double Shaft Fan/Blower Motor 208-230V, 1075 RPMCentury RA1036WB 5-5/8" Dia. Double Shaft Fan/Blower Motor 208-230V, 1075 RPM
Century Century RA1036WB 5-5/8" Dia. Double Shaft Fan/Blower Motor 208-230V, 1075 RPM
$317.00 $363.00
Century 4-in-1 Condenser Fan Motor, 1/3-1/8 Hp, 1 Ph, 60 Hz, 208-230 V, 825 Rpm, 1 Speed, 48 Frame, Teao - ORM5488B
Regal Rexnord Century 4-in-1 Condenser Fan Motor, 1/3-1/8 Hp, 1 Ph, 60 Hz, 208-230 V, 825 Rpm, 1 Speed, 48 Frame, Teao - ORM5488B
$276.00
Save $18.00
Century 4-in-1 Condenser Fan Motor, 1/3-1/6 HP, 1 Ph, 60 Hz, 208-230 V, 1075 RPM, 1 Speed, 48 Frame, TEAO ORM5458BU
Century Century 4-in-1 Condenser Fan Motor, 1/3-1/6 HP, 1 Ph, 60 Hz, 208-230 V, 1075 RPM, 1 Speed, 48 Frame, TEAO ORM5458BU
$215.00 $233.00
Save $25.00
Century Fan / Blower Motor, 1/6 HP, 1 Ph, 277 V, 1075 RPM, 3 Speed, 48 Frame 7FD1016Century Fan / Blower Motor, 1/6 HP, 1 Ph, 277 V, 1075 RPM, 3 Speed, 48 Frame 7FD1016
Century Century Fan / Blower Motor, 1/6 HP, 1 Ph, 277 V, 1075 RPM, 3 Speed, 48 Frame 7FD1016
$281.00 $306.00
Packard ORM1056 Century 48 Frame PSC 1/2 HP Motor 1075 RPM 4 Speed 115 Volts
Century Packard ORM1056 Century 48 Frame PSC 1/2 HP Motor 1075 RPM 4 Speed 115 Volts
$138.00
Save $60.00
Century EM3728F 1/4 HP 1075 RPM 208-230V Condenser Fan Motor
Century Century EM3728F 1/4 HP 1075 RPM 208-230V Condenser Fan Motor
$113.00 $173.00
Save $13.00
Masterfit 1/2-1/5Hp 208-230V Condesner fan Motor Regal Rexnord FE6002FMasterfit 1/2-1/5Hp 208-230V Condesner fan Motor Regal Rexnord FE6002F
Regal Rexnord Masterfit 1/2-1/5Hp 208-230V Condesner fan Motor Regal Rexnord FE6002F
$208.00 $221.00
Save $11.00
1/3-1/6 hp masterfit pro Condenser motor 208-230 V Regal Rexnord FE6000F1/3-1/6 hp masterfit pro Condenser motor 208-230 V Regal Rexnord FE6000F
Regal Rexnord 1/3-1/6 hp masterfit pro Condenser motor 208-230 V Regal Rexnord FE6000F
$149.00 $160.00

Recently viewed

Save $5.00

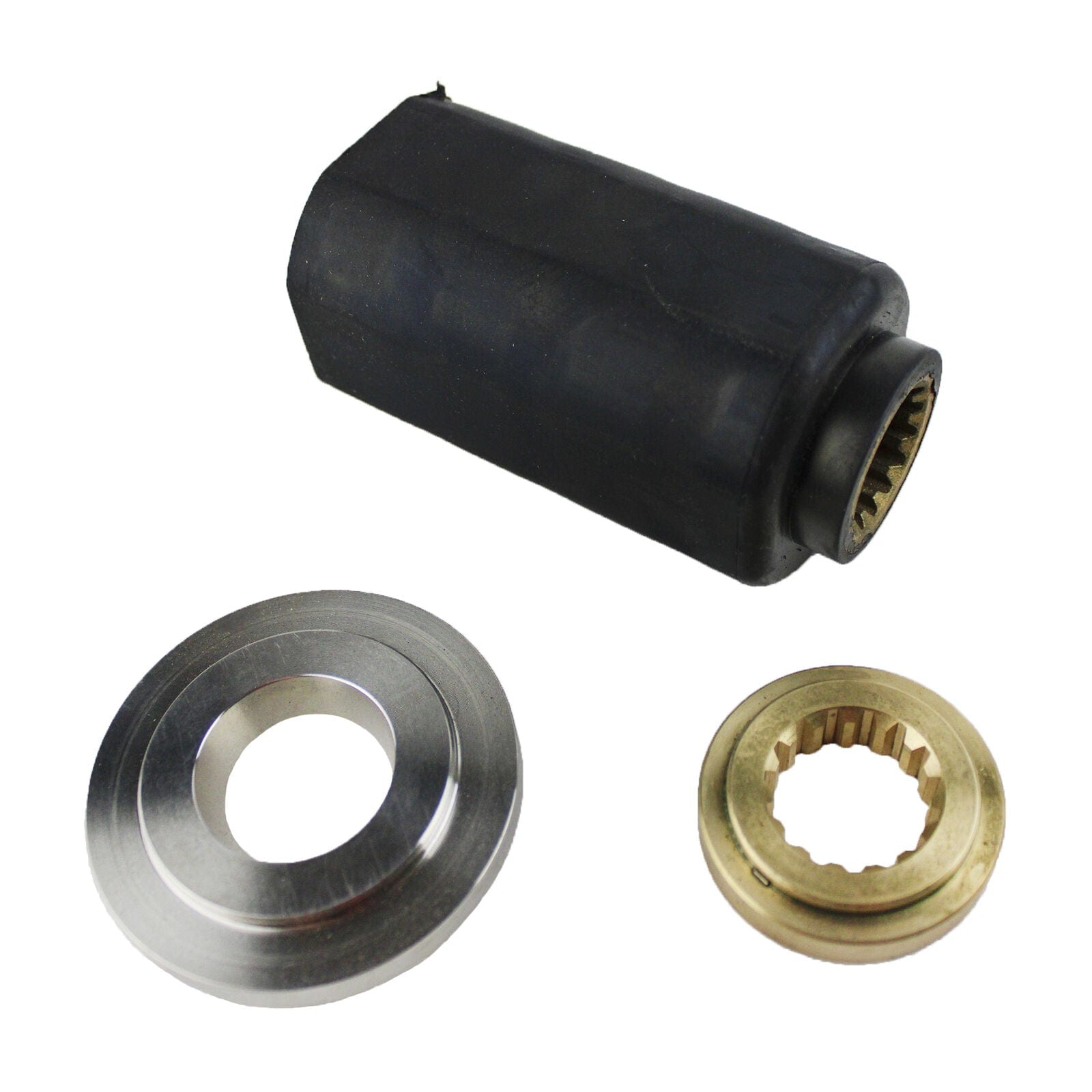

King Dolphin 2020-YE1B Ultra Hub Kit 150-225 HP 1984 & Newer, 250 HP 1984 & Newer 300HP 2003 & Newer
