Description
The 7700-BSS is a 12 Volt DC 500 Amp remote battery switch with manual control
Specifications
| amperage operating current | 0mA |
| cable size to meet ratings | 2x (4/0) |
| changing state amp current | <7A (40 ms) |
| coil function | Bi-Stable |
| continuous rating | 500A |
| control circuit connection | Tinned Wire |
| control circuit voltage | 9-16V DC |
| cranking rating (30 sec) | 1450A DC |
| intermittent rating | 700A (5 min) |
| live current switching | 300A @ 12V DC |
| manual control | Yes |
| master control capability | No |
| maximum operating temperature | 60┬░ C |
| mechanical endurance | 100,000 Cycles |
| minimum operating temperature | -10┬░ C |
| mounting | #10 |
| nominal voltage | 12V DC |
| terminal ring dia. clearance | 1.18in (29.97 mm) |
| terminal stud length | 0.875in (22.23 mm) |
| terminal stud size | 3/8" - 16 (M10) |
| terminal stud torque | 140 in-lb (15.82 Nm) |
| weight | 2.05lb (0.93 kg) |
You May Also Like
Save $35.00
Blue Sea Systems
Blue Sea Systems 9001E-BSS Battery Switch E Selector
Sale price$70.00
Regular price$105.00
In stockSave $26.00
Blue Sea Systems
Blue Sea Systems 7717-BSS 24V Remote Battery Switch ML-RBS, Manual Control Auto-Release Solenoid
Sale price$275.00
Regular price$301.00
In stock
Blue Sea Systems

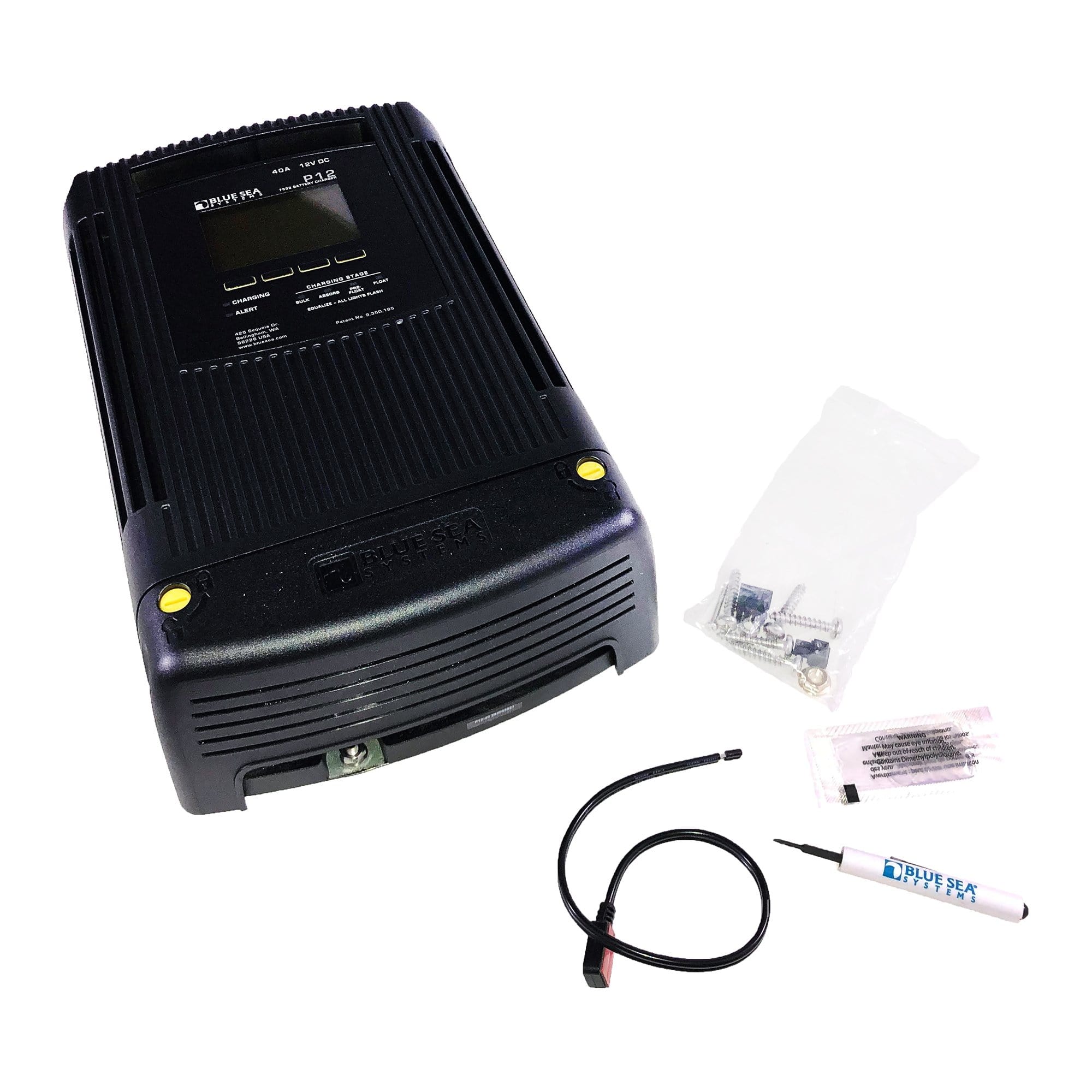

Blue Sea Systems 7532-BSS P12 Battery Charger 12V DC 40A
Sale price$1,117.00
In stock
Blue Sea Systems
Blue Sea Systems 11001-BSS Battery Switch E-Series Selector, 3 Positions, AFD
Sale price$76.00
In stock
Power Products

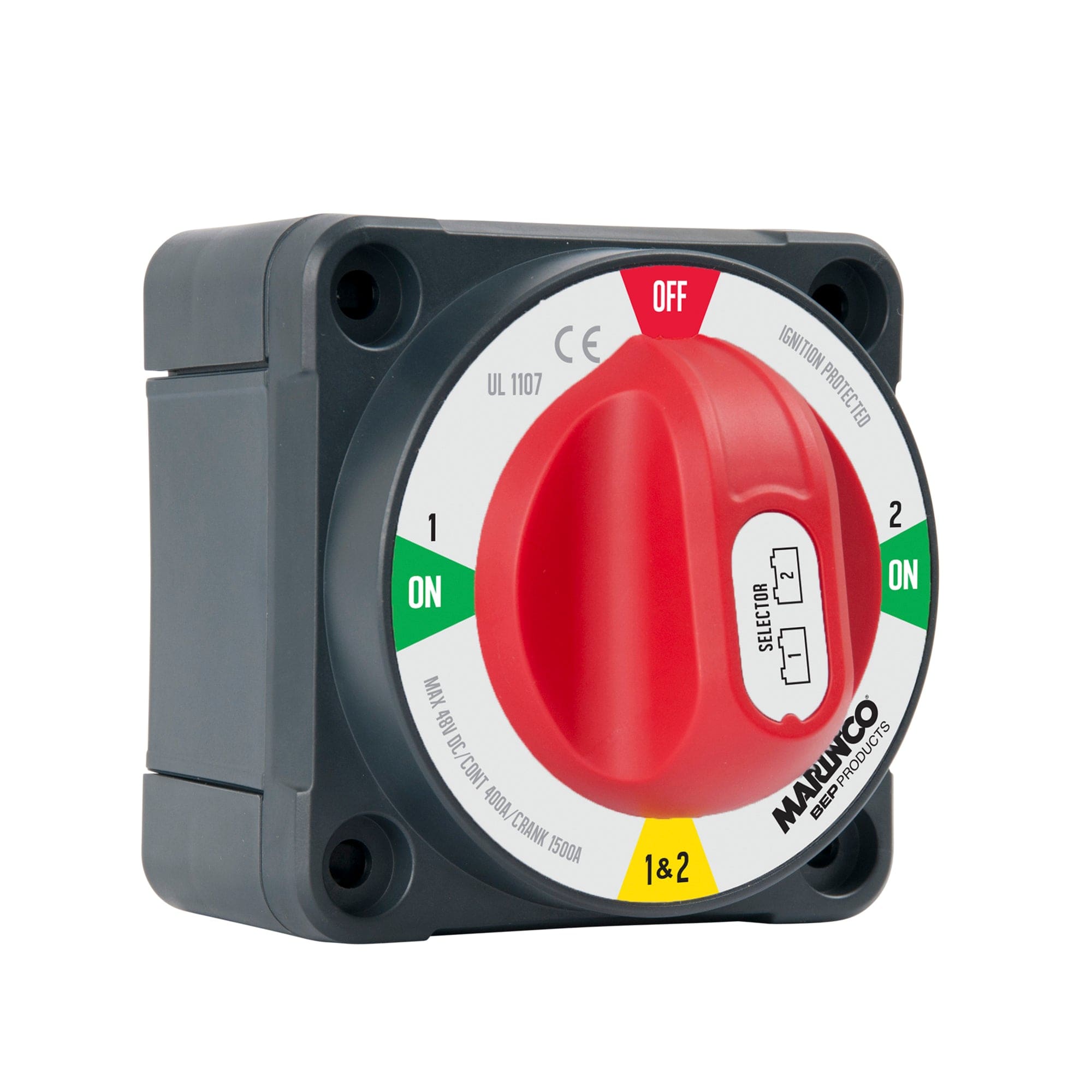

Battery Switch , 400 Amp Selector Bulk MC12 - Marinco 771-S-B
Sale price$40.00
In stockSave $9.00
Blue Sea Systems

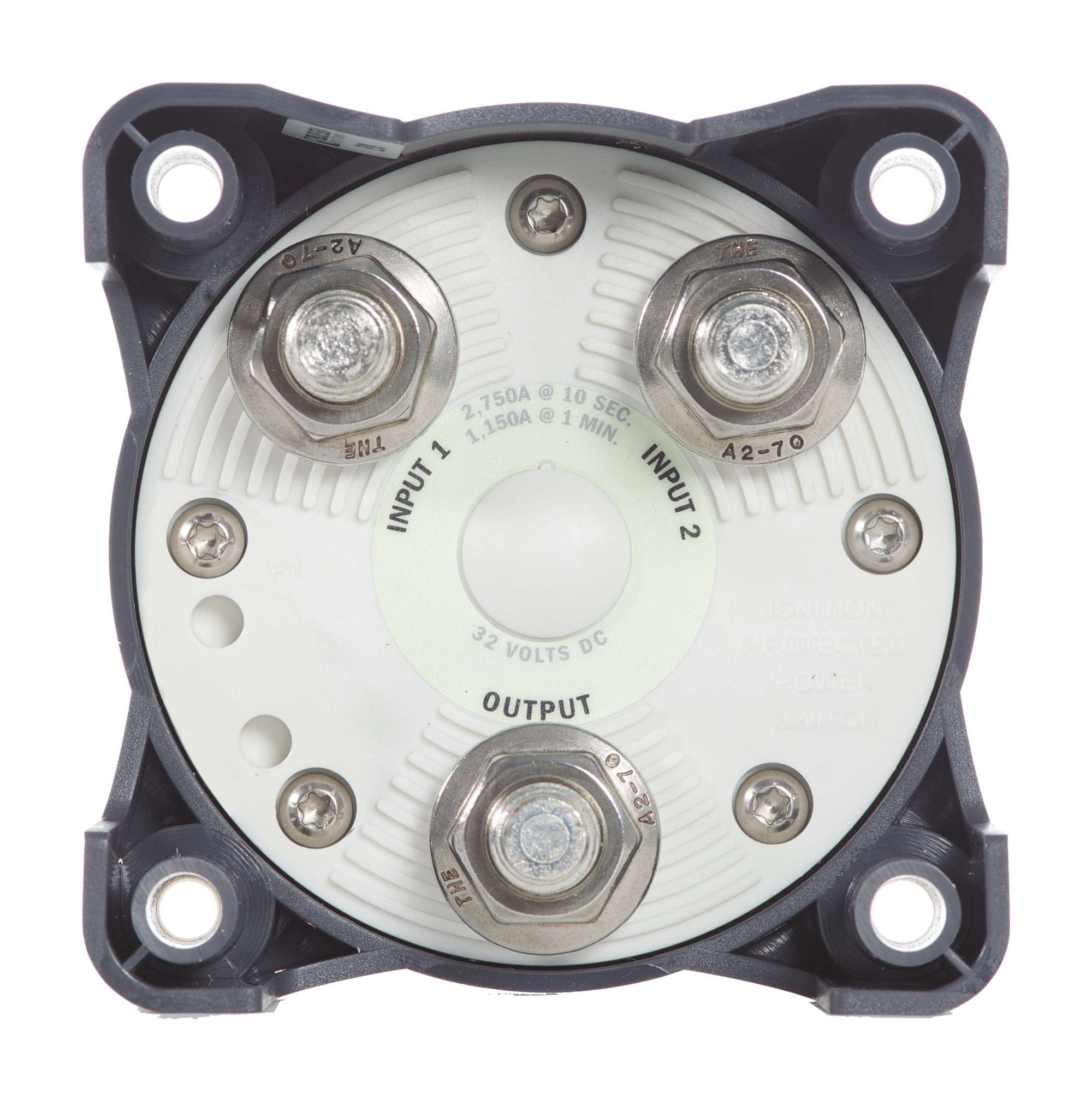

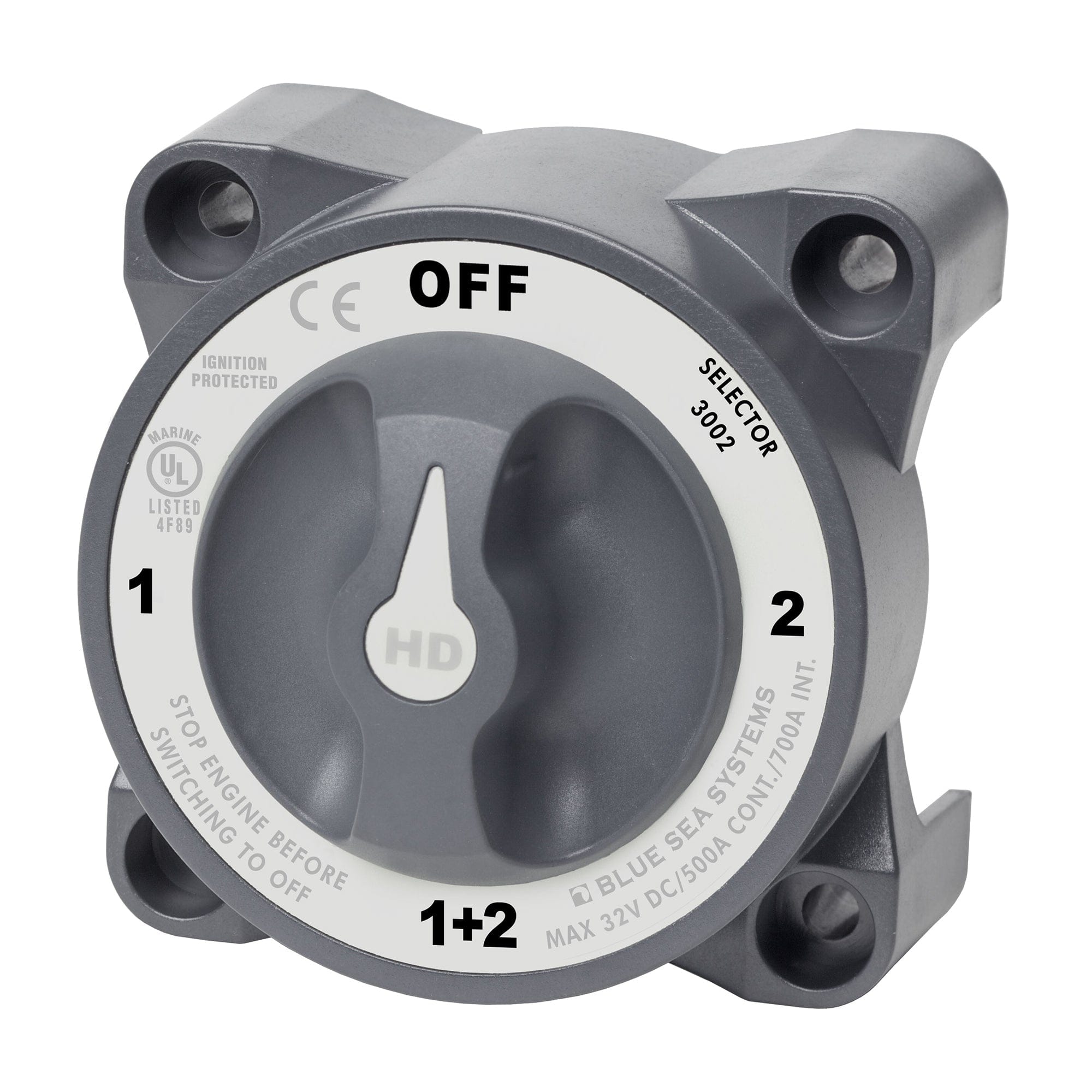

HD Selector Battery Switch Blue Sea Systems 3002
Sale price$110.00
Regular price$119.00
In stock
Blue Sea Systems

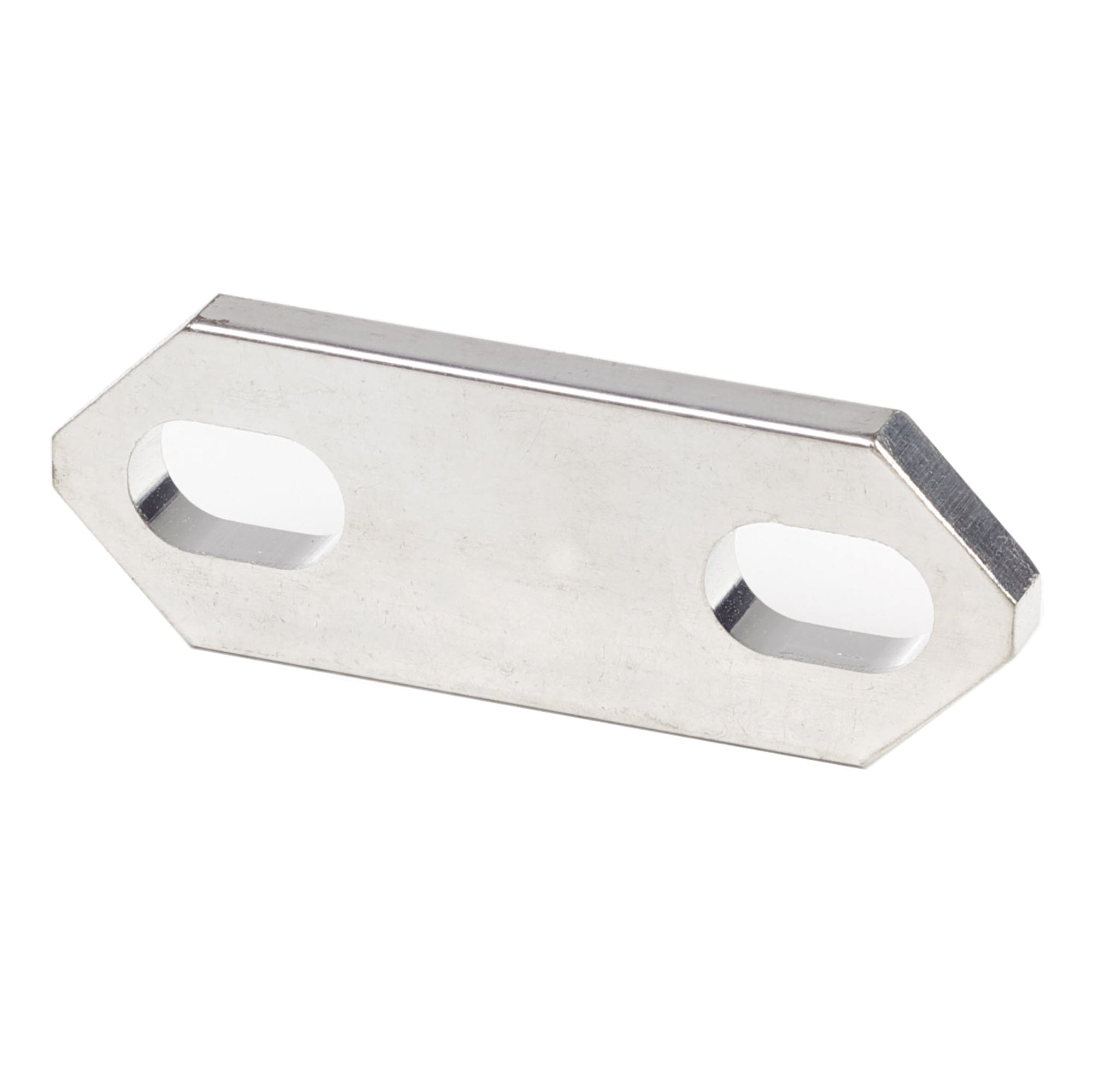

Battery Switch Link Bus M Series 9159 Blue Sea Systems (2 Pack) 9159-BSS
Sale price$15.00
In stock
Power Products

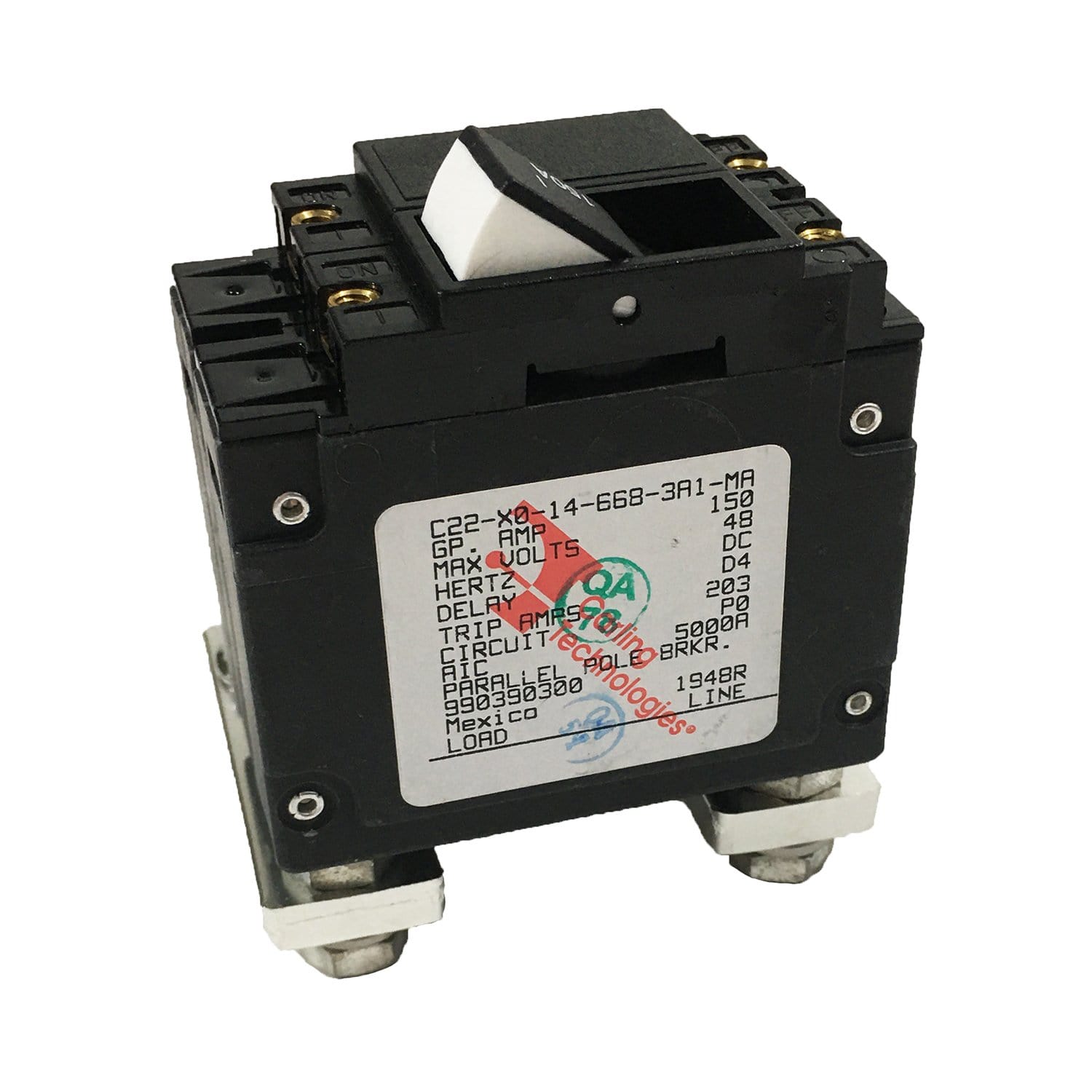

Power Products Blue Sea Systems 7475-BSS C-Series Flat Rocker Circuit Breaker Double Pole 150A
