Description

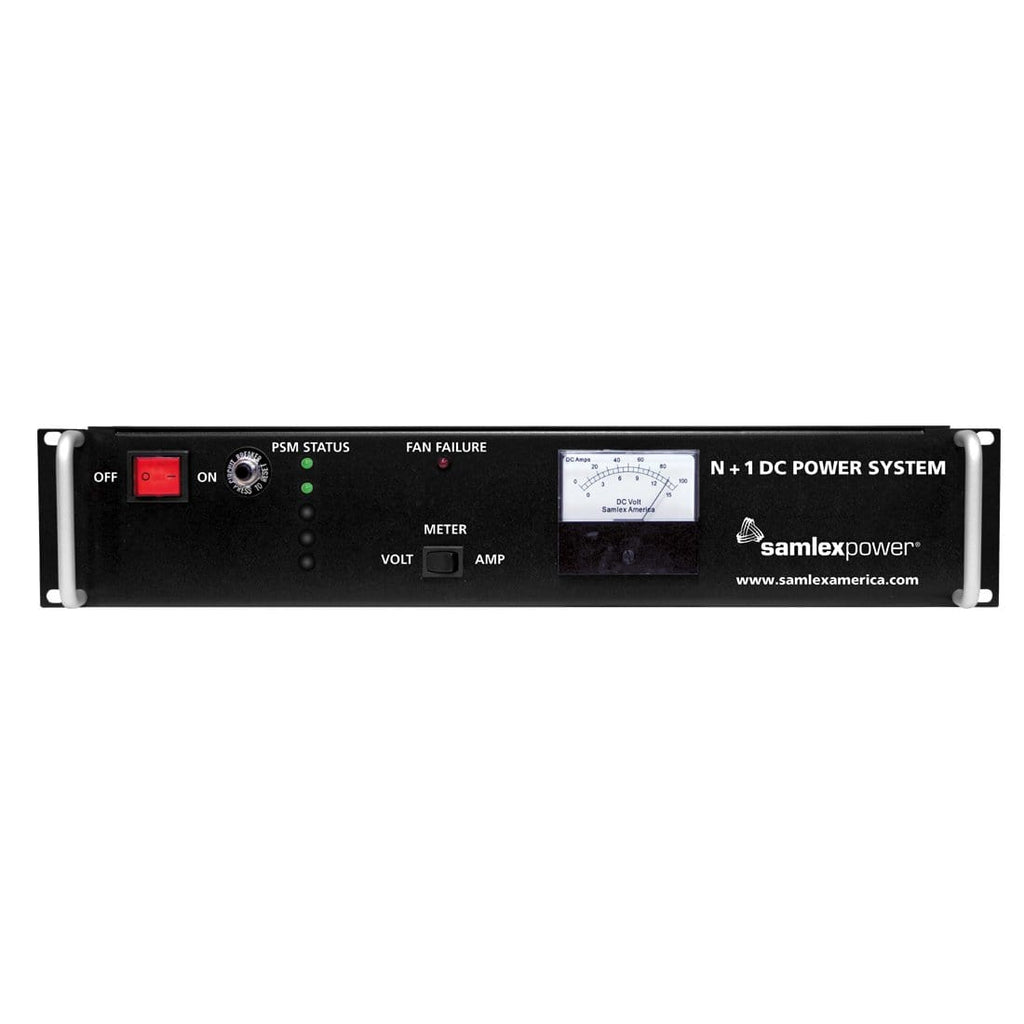

The Samlex SEC-100BRM-220 is an AC-DC power converter that provides a highly regulated DC output voltage of 13.8 volts at 100 amps of continuous power and comes mounted on a 19" 2U size rack plate.
Specifications
| amps | 100 Amps |
| brand | Samlex |
| circuit breaker | 125 /250 v, 25a |
| continuous current output | 100 a |
| dimensions | 19"L x 15.9"W x 3.6"H |
| fuse | 250 v, 4a |
| input voltage range | 210 to 250 vac, 50 / 60 hz |
| nominal voltage | 13.8 vdc |
| no load dc output voltage | 14 vdc |
| number of modules | 5 |
| output current | (Limit) 120 a |
| output noise | 0.7 v |
| output ripple | 150mv |
| output voltage | Full Load Approx. 13.35 vdc |
| output voltage regulation | 0.01 |
| surge output current | 115 a |
| weight | 25 lbs / 11.4 kg |
