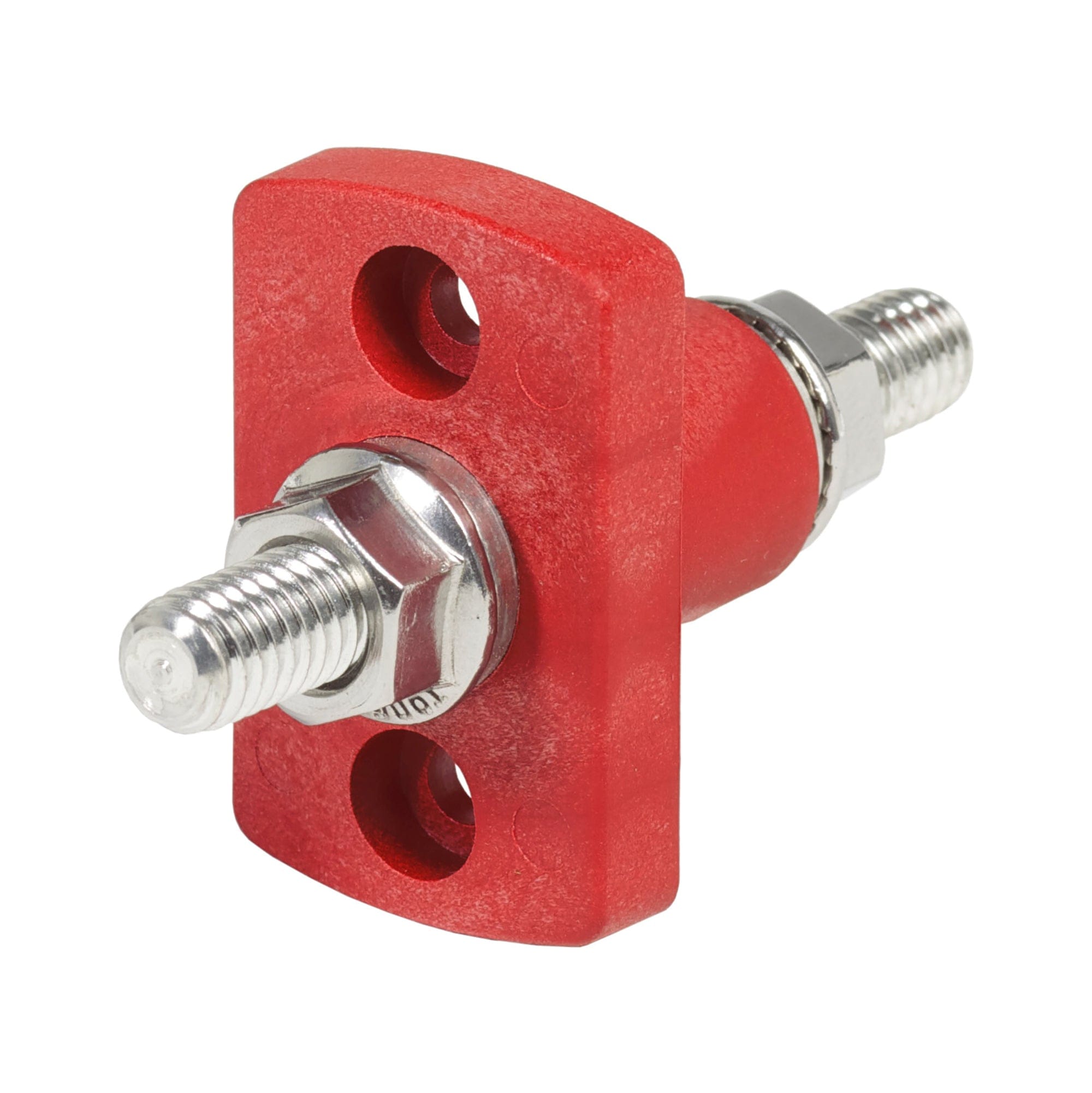

Terminal Sm Feed Through 3/8-16 Stud Red 2204-BSS Blue Sea Systems

Blue Sea SystemsSKU: 2204-BSS

Price:
Sale price$37.00
Stock:
Sold out
Free Shipping* (Some exclusions apply)
 More payment options

Description

Introducing the Terminal Feed Through Connector - 3/8”-16 Studs

Eliminates chage and provides strain relief when passing high current through hulls, decks and bulkheads
Perfect for passing high current cables through hulls, decks and bulkheads
Large cables passed through holes are subject to chafing even when protective grommeting is used. Terminal Feed Through Connectors eliminate chafing and provide excellent strain relief for the cable
Large size terminals have a mounting face that can be gasketed or bedded to provide a water tight installation
Rated IP66 - withstands water from heavy seas

California Prop 65 - WARNING: Cancer and Reproductive Harm - https://www.p65warnings.ca.gov/

Specifications

Amperage 250A
Base Material Reinforced Thermoplastic
Color Red
Maximum Voltage 48V DC
Recommended Torque 100 in-lb (11.3 N·m)
Stud Material Tin-Plated Copper Alloy
Stud Size 3/8"-16
Weight 0.30lb (0.14 kg)
