Description

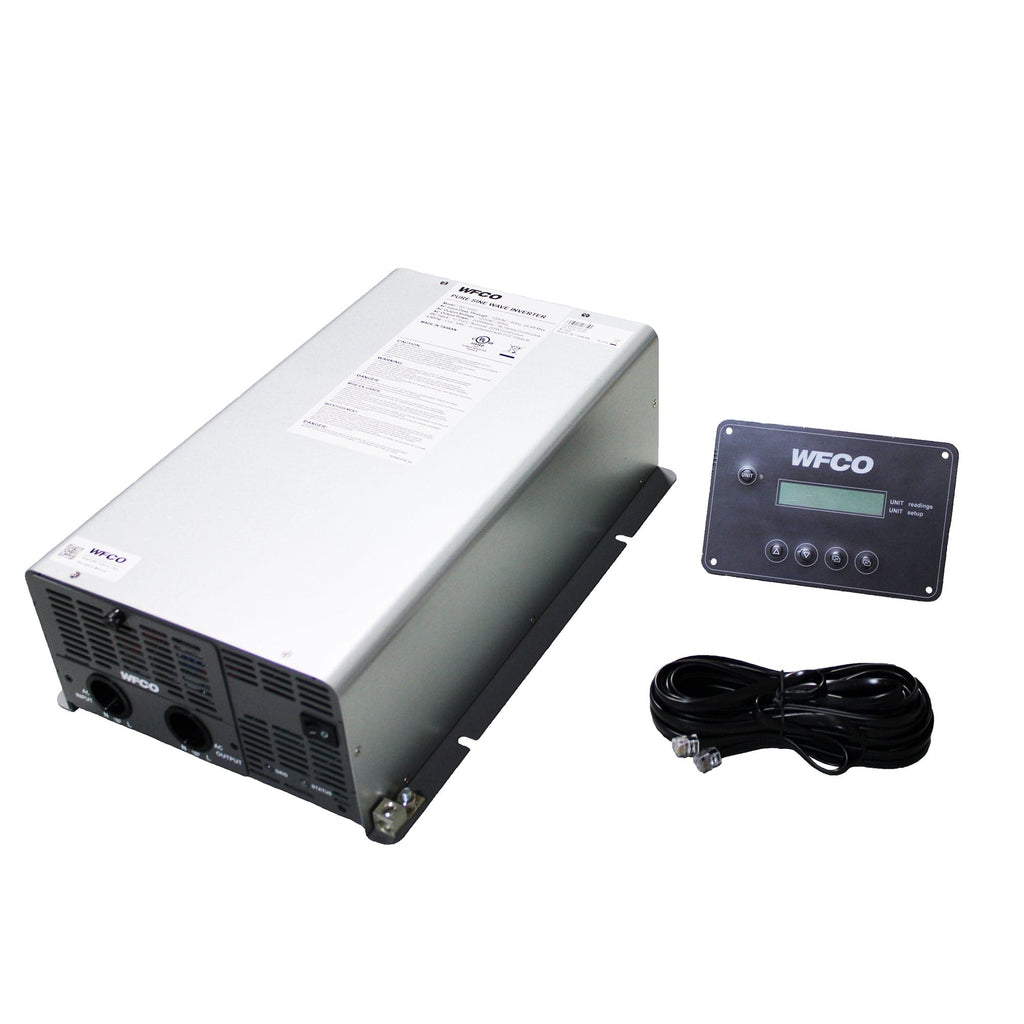

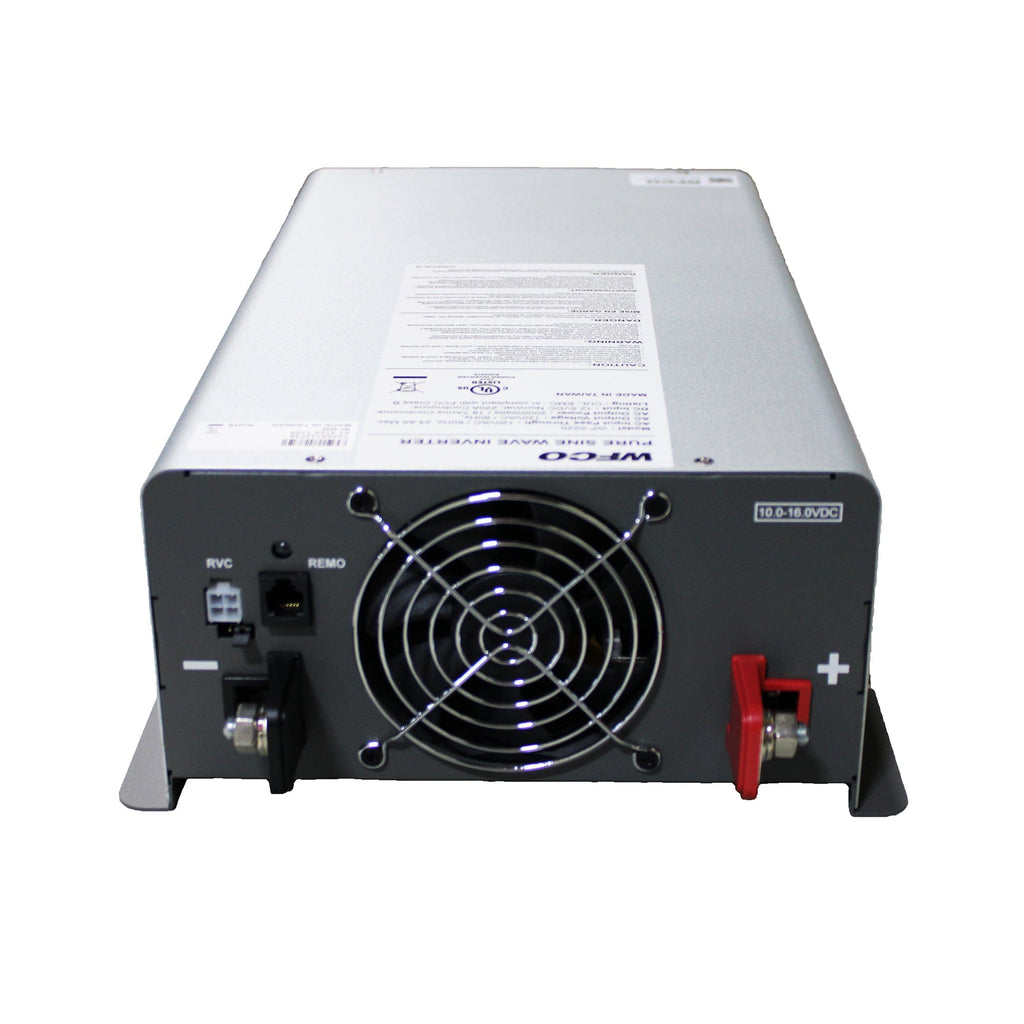

WF-5220 Inverter Series 2000-watt delivers outstanding performance. The internal transfer system automatically allows the AC input to bypass the inverter when the inverter is connected to an AC power source. Other essential features include pure sine wave output, providing the hi-tech filtering needed for premium electronics and refrigerators, plus an easy hi-pot testing design that allows hi-potting output circuits through the inverter.
With over a decade of inverter manufacturing, WFCO knows what is essential. Reliability, clean signal, easy installation, and intelligent power management make the WF-5220 Inverter the best choice for RV inverters.
Protection Features:
- AC Output Power
- Internal Cooling
- Over Temperature
- Overload
- Reverse Polarity (fuse)
- Short Circuit
Specifications
| AC Voltage Regulation | +/- 3% from no load to full load under battery range |
| Certifications | ULC458, FCC Class B Compliant |
| DC Input Voltage | 12V DC |
| DC Reverse Polarity | Battery reverse input protected by fuse |
| Dimensions | 9.63 × 8.4 × 13 in |
| Input Voltage Range | 10-16 VDC |
| Input Voltage/Hz | 120 VAC, 60 Hz |
| Internal Cooling | DC Brush-less Forced Fans |
| Output Waveform | Pure Sine Wave (THD <3%) |
| Over Temperature | System Shut Down |
| Overload Protection | Current Limiting & Shutdown |
| Rating Power | 2000VA {de-rating after 40°C, refer to de-rating curve) |
| Remote Control Panel | Yes |
| Short Circuit Protection | System shutdown upon short-circuit |
| Transfer Switch | Automatically transfer to battery power whenever AC power fails DPDT relay with 20A/120Vac contact rating |
| Transfer Time | <20 milliseconds |
| Weight | 5 lbs |
You May Also Like
Save $37.00
Cotek

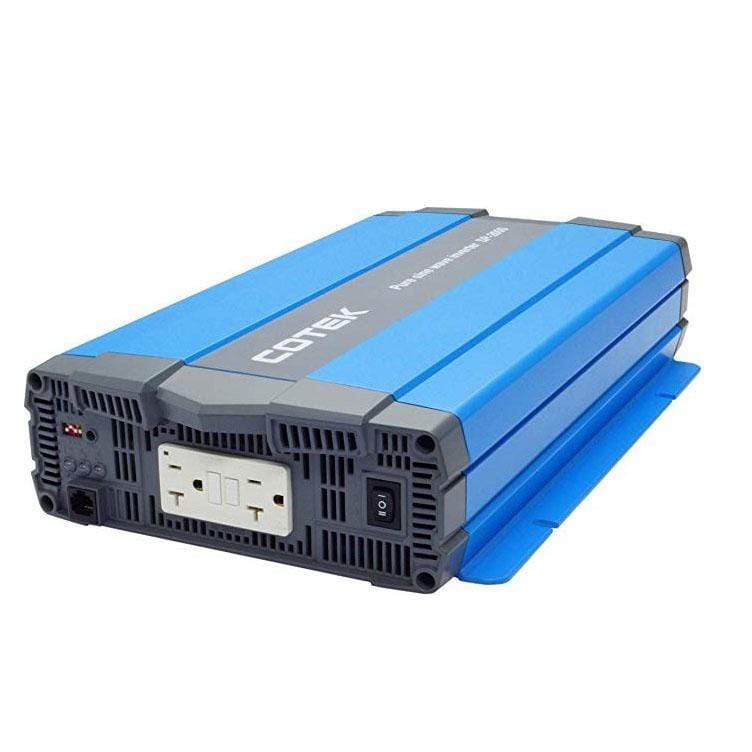

Cotek SP2000-112 Pure Sine Wave Inverter 2000W 12V
Sale price$939.00
Regular price$976.00
In stockSave $159.00
Cotek
Cotek ST2500-124 Pure Sine Inverter With 30 Amp Transfer Switch
Sale price$1,394.00
Regular price$1,553.00
In stockSave $40.00
Powermax
Powermax PMX-2000 12 Volt, 2000 Watt, Pure Sine Wave Inverter
Sale price$362.00
Regular price$402.00
In stockSave $1.00
Go Power!
Go Power GP-ISW200-12 200 Watt Pure Sine Wave Inverter
Sale price$248.00
Regular price$249.00
In stock
Go Power!
Go Power! GP-ISW2000-12 2000W Industrial Pure Sine Wave Inverter
Sale price$1,127.00
In stockSave $42.00
Cotek

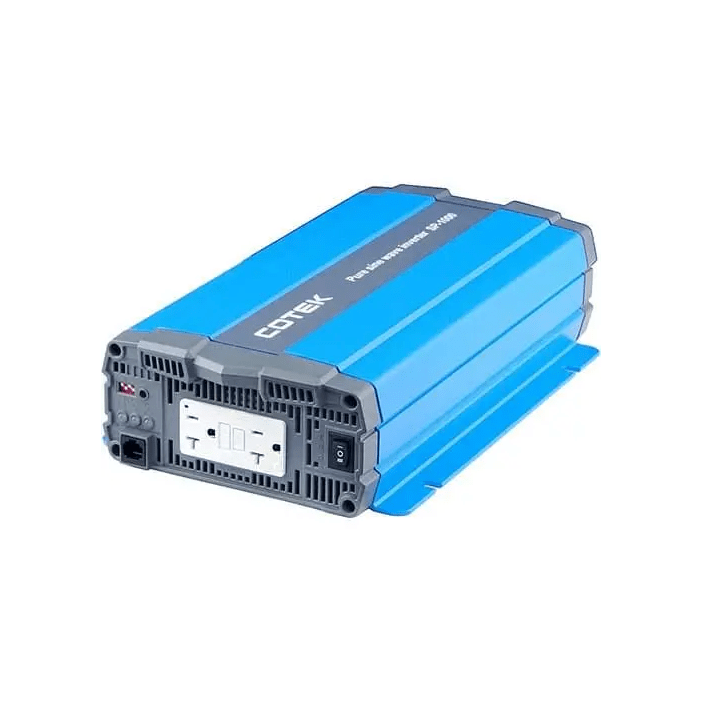

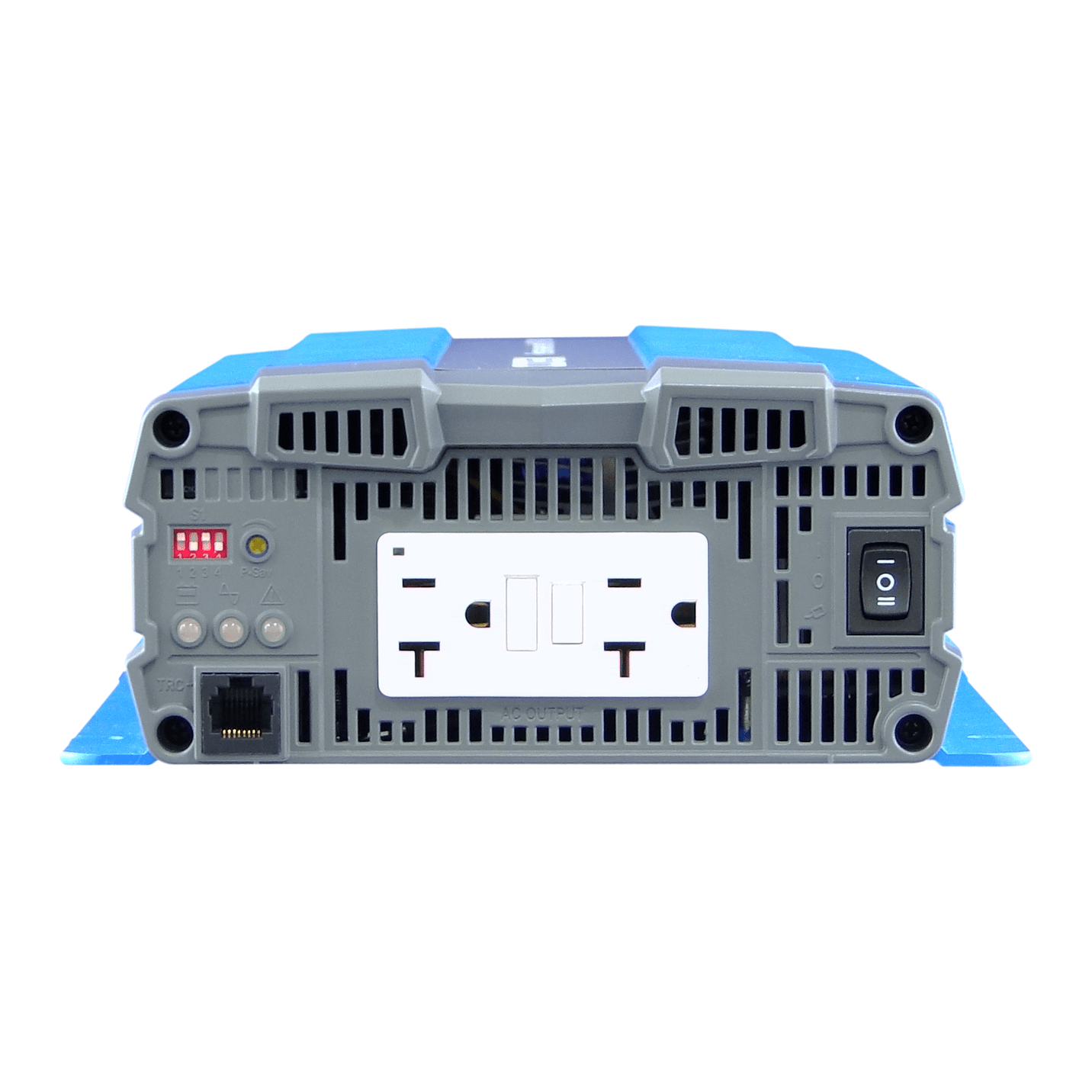

Cotek SP1000-112 Pure Sine Wave Inverter 1000W, 12VDC, 115VAC
Sale price$506.00
Regular price$548.00
In stockSave $9.00
Cotek

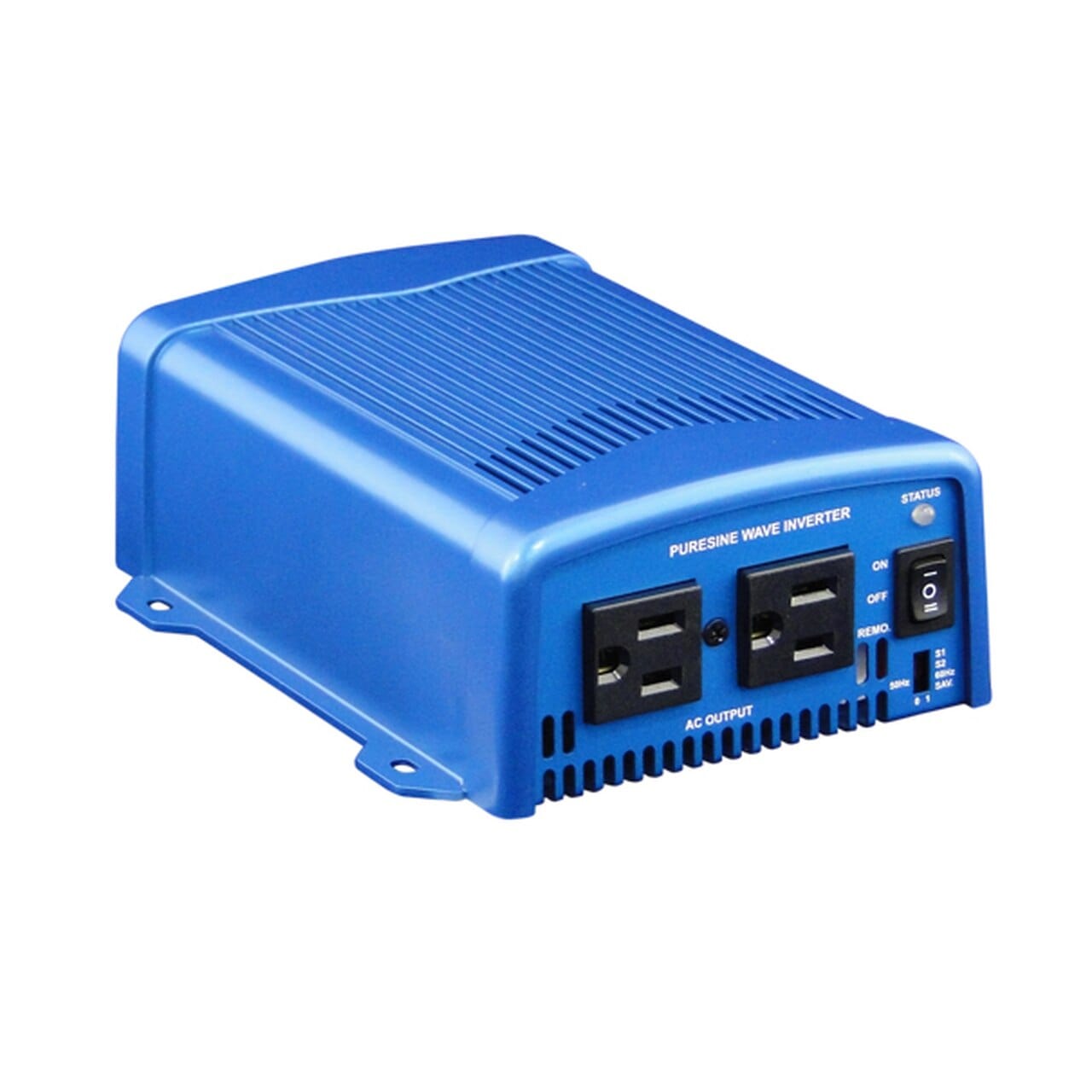

Cotek SE200-212 Pure Sine Wave Inverter 200W, 12VDC, 230VAC
