Description

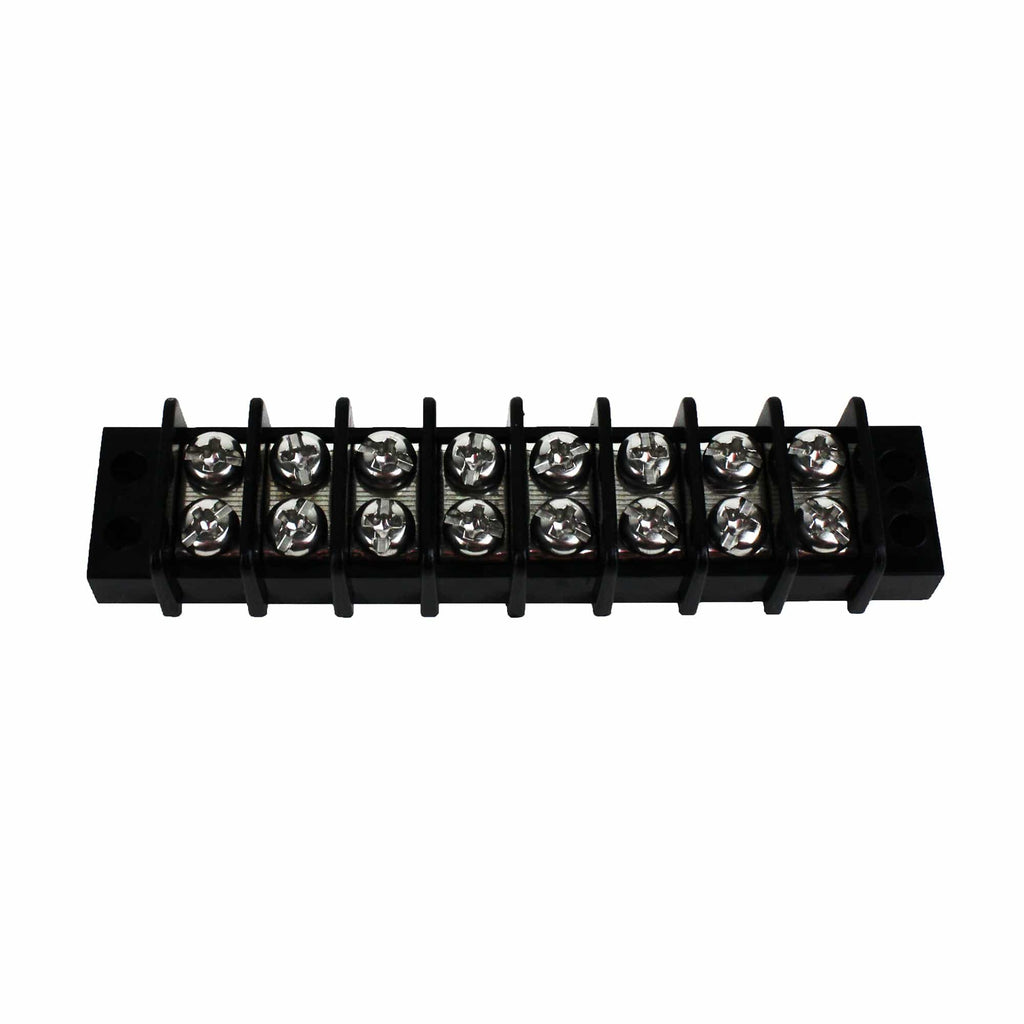

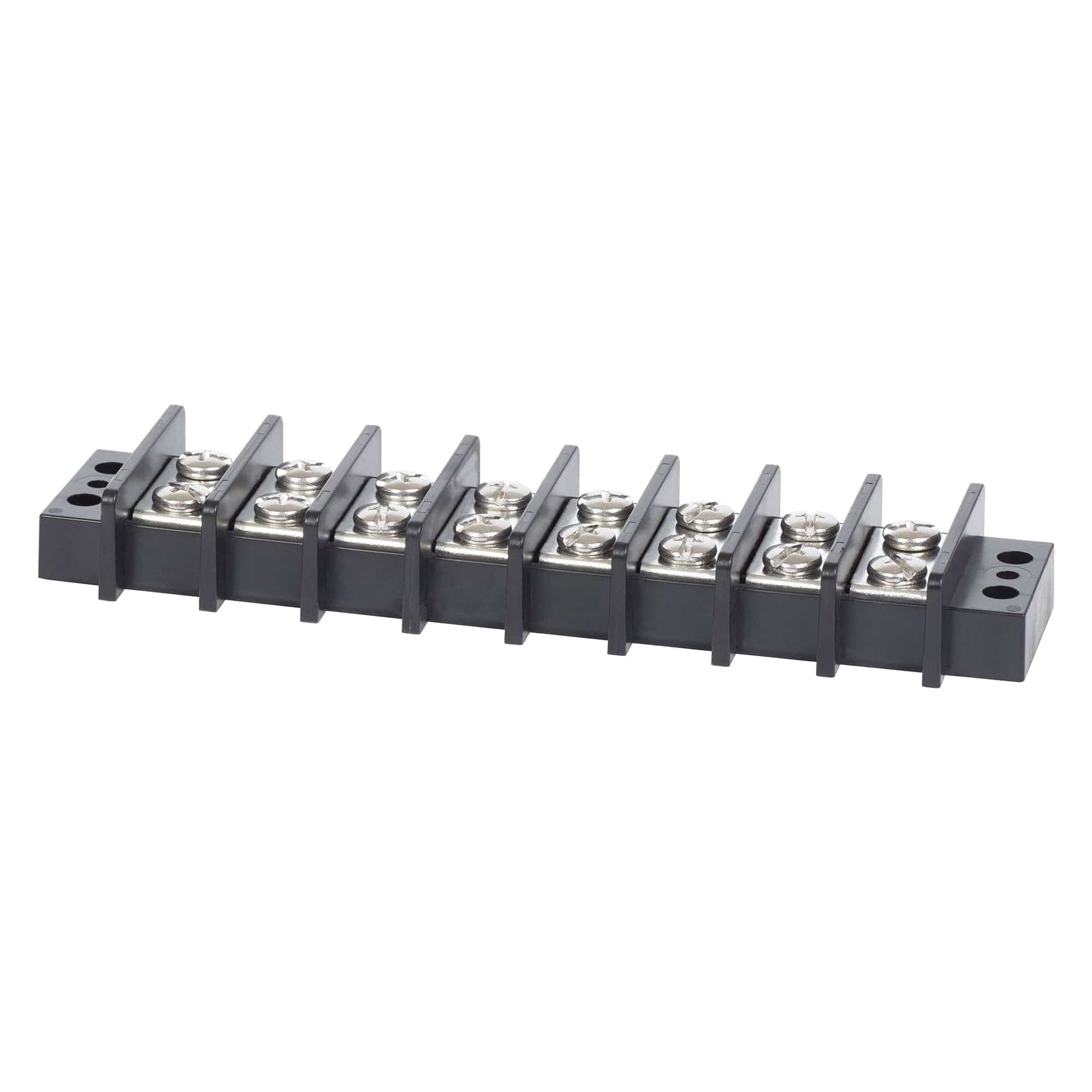

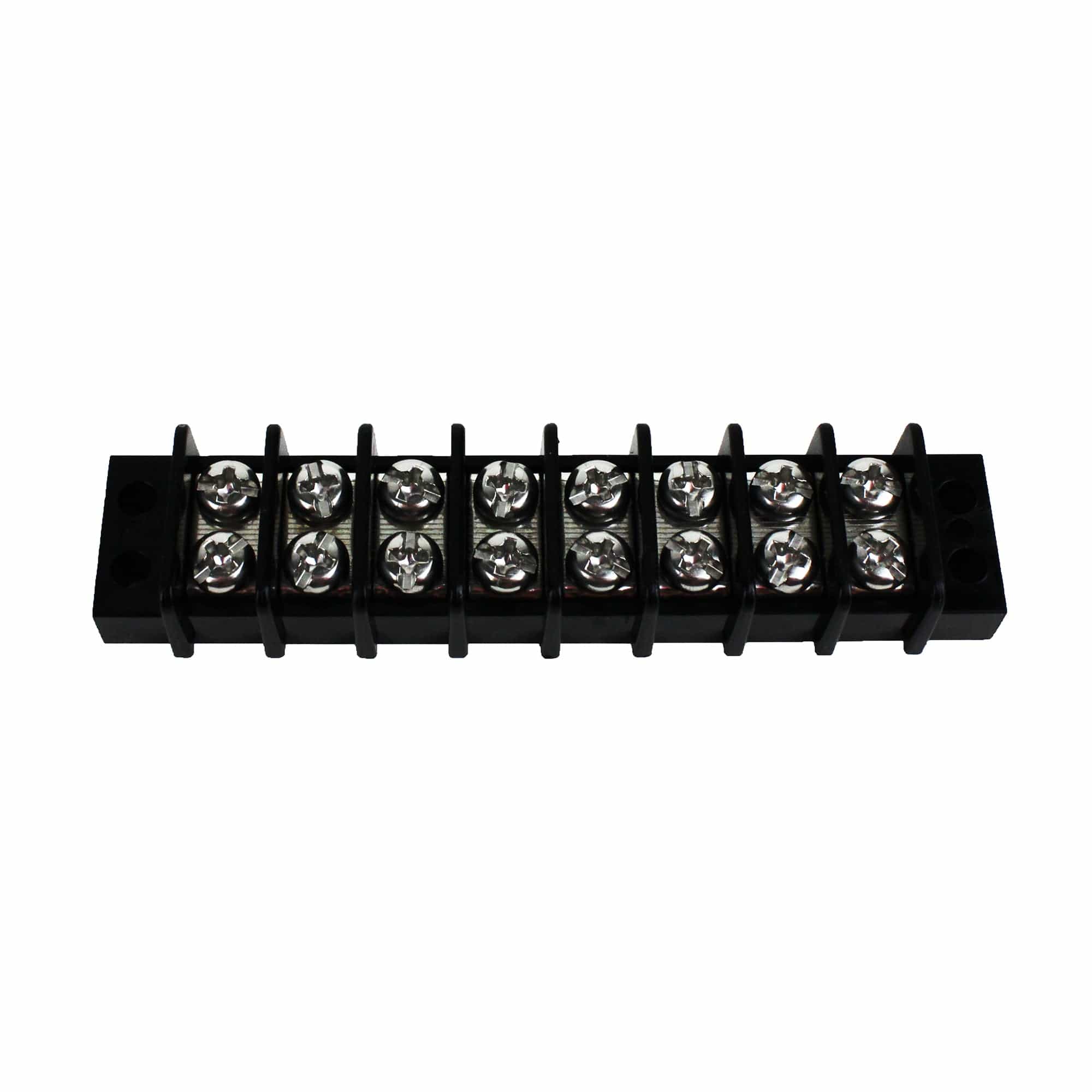

This is a 20-amp, 8-circuit terminal block. These are commonly used to extend or create junctions in wiring harnesses and cables, able to join 4 individual circuits they are ideal for creating a break in existing wiring.
- Closed back design completely insulates power from the mounting surface
- Each screw pair is one isolated circuit

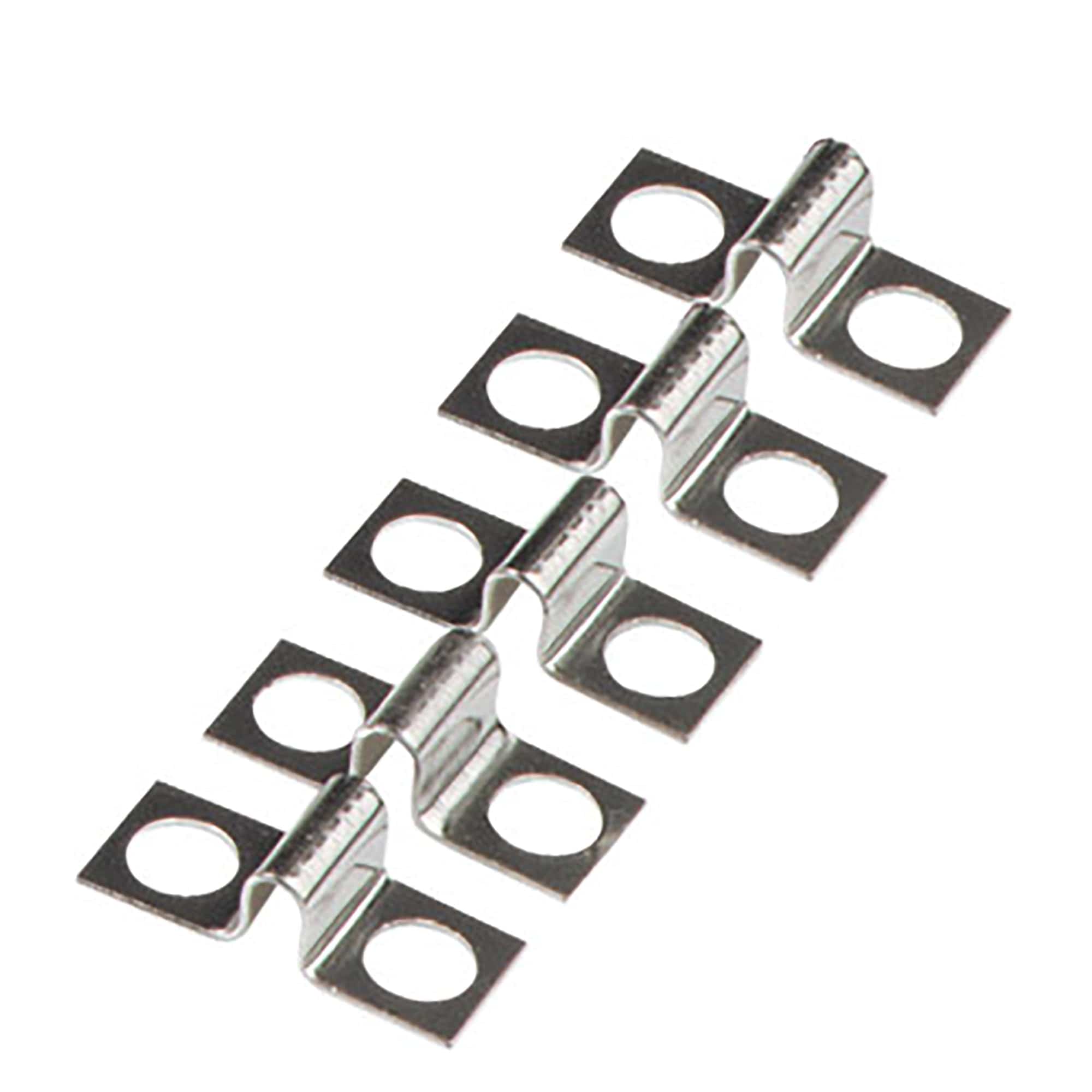

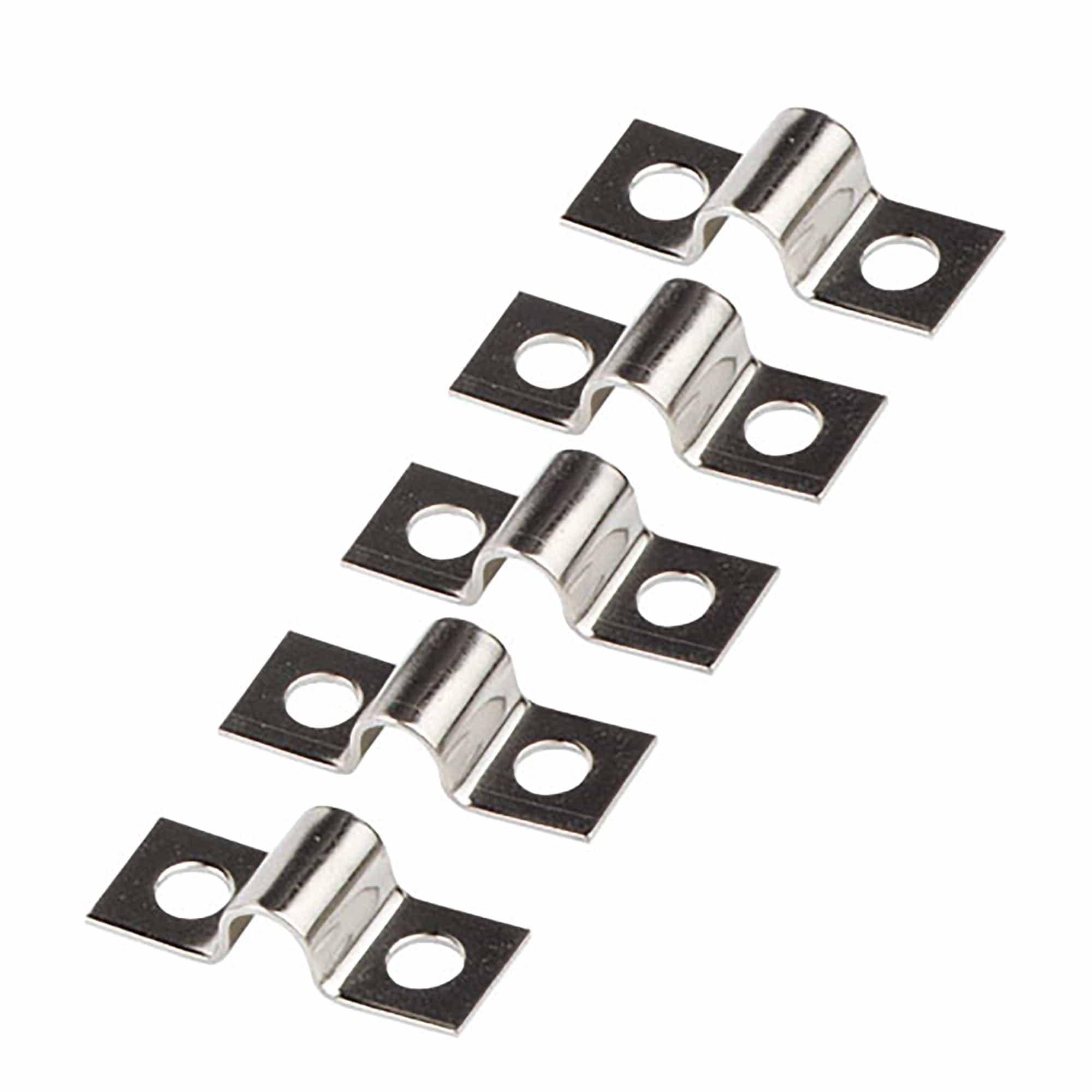

- Jumpers allow creation of common circuits
Warning: Product may contain materials cautioned by California Proposition 65
Specifications
| Base Material | UL 94 V0, PC |
| Bus Material | Nickel-Plated Brass |
| Circuits | 8 |
| Continuous Rating | 20A |
| Length | 3.66in (92.96 mm) |
| Maximum Voltage | 300V AC/DC |
| Mounting Screw | #6 [M3.5] |
| Screw Material | Stainless Steel |
| Screw Terminal Torque | 7 in-lb (0.79 Nm) |
| Terminal Screws | M3.5 |
| Wire Terminal Size | #6 [M3] |
You May Also Like
Save £9.00
Blue Sea Systems

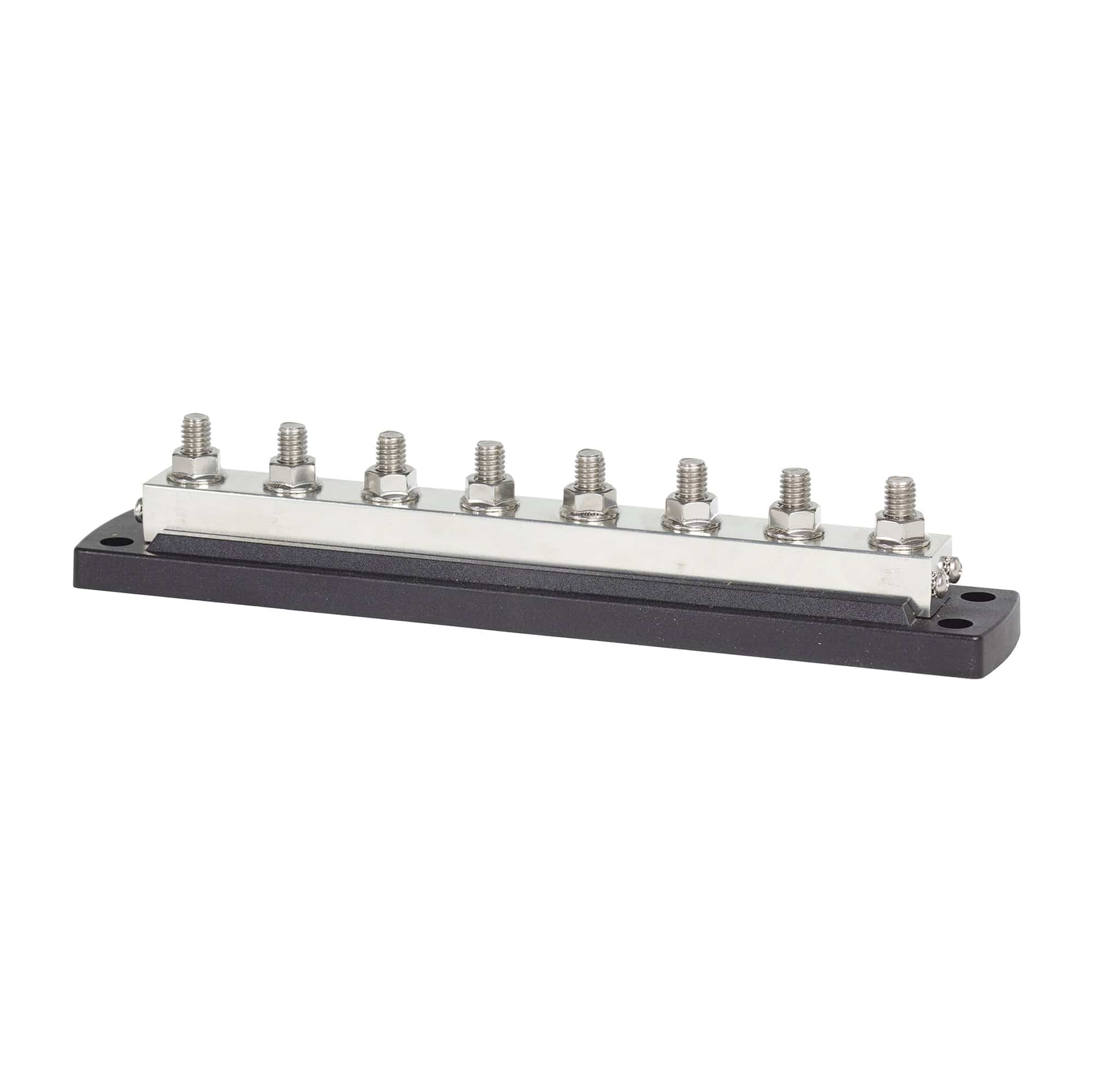

Power Bar 8 x 3/8-16 Stud Terminal 2107-BSS Blue Sea Systems
