Description

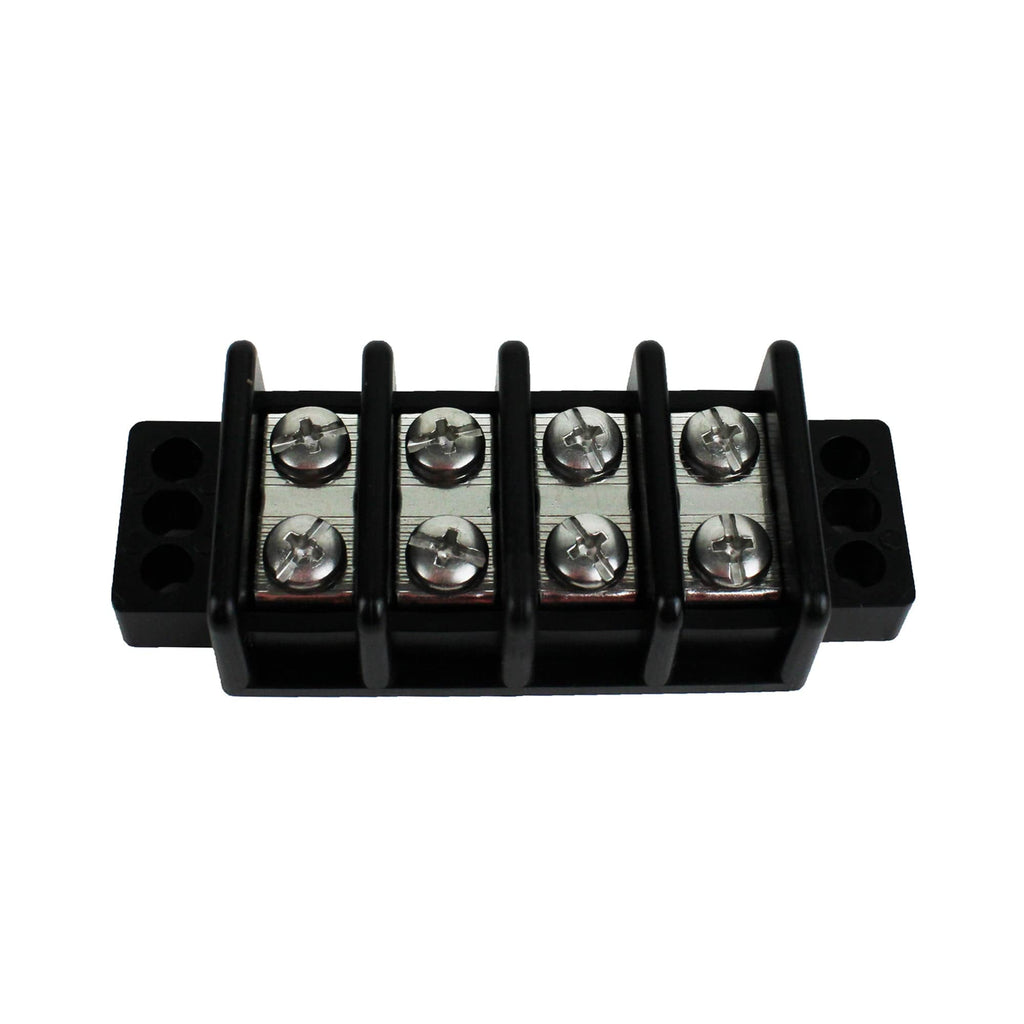

This is a 30-amp, 4-circuit terminal block. These are commonly used to extend or create junctions in wiring harnesses and cables, able to join 4 individual circuits they are ideal for creating a break In existing wiring.
- Closed back design completely insulates power from the mounting surface
- Each screw pair is one isolated circuit
- Jumpers allow creation of common circuits
Warning: Product may contain materials cautioned by California Proposition 65
Specifications
| Base Material | UL 94 V0, PC |
| Bus Material | Nickel-Plated Brass |
| Circuits | 4 |
| Continuous Rating | 30A |
| Length | 3.25in (82.55 mm) |
| Maximum Voltage | 600V AC/DC |
| Mounting Screw | #10 [M5] |
| Screw Material | Stainless Steel |
| Screw Terminal Torque | 10 in-lb (1.13 Nm) |
| Terminal Screws | M4 |
| Wire Terminal Size | #8 [M4] |
