Description

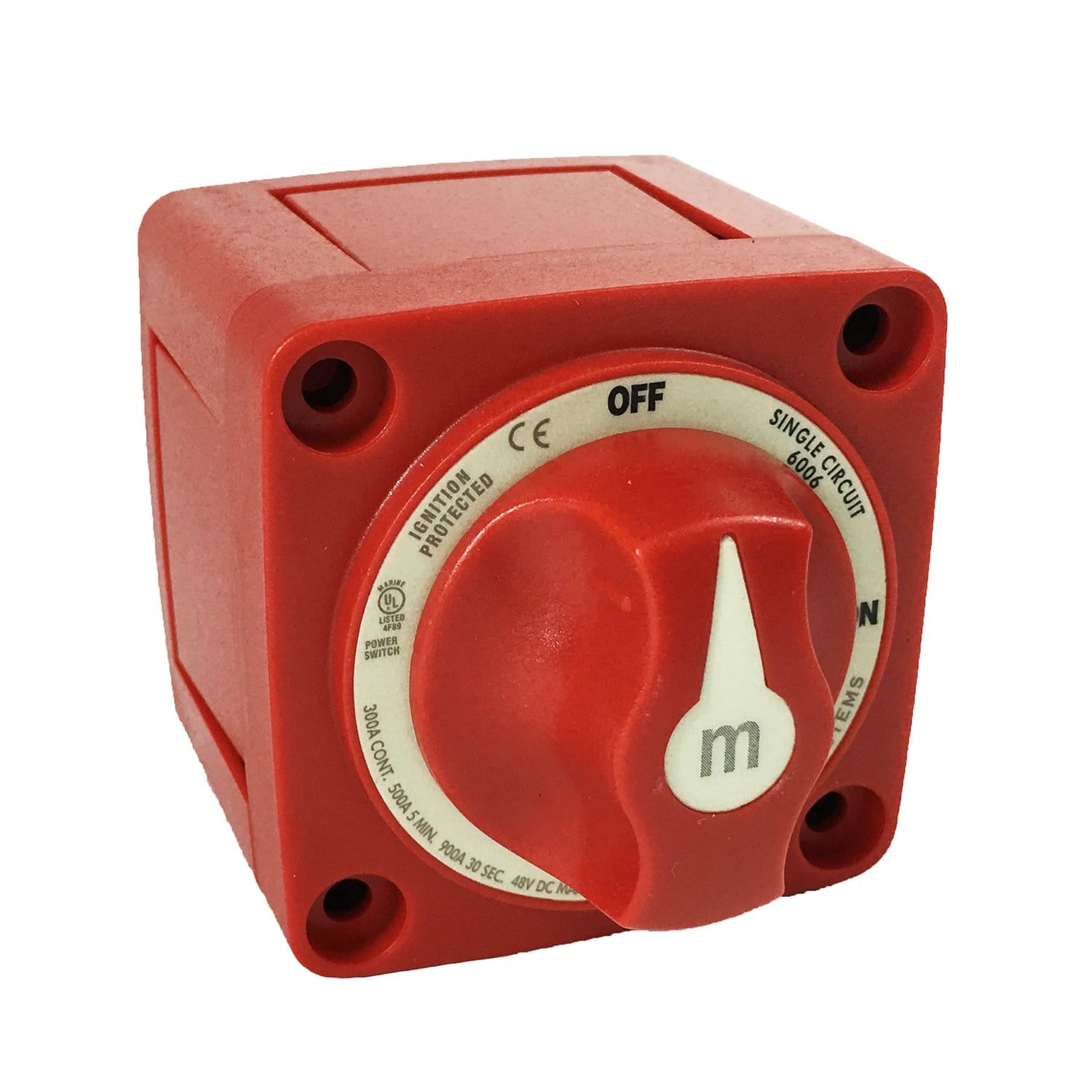

This battery switch switches a single battery to a single load group
- Ignition protected—safe for installation aboard gasoline powered boats
- Case design allows surface, front panel, or rear panel mounting
- Isolating cover with Snap-on sections protects rear contacts
Warning: Product may contain materials cautioned by California Proposition 65
Specifications
| Alternator Field Disconnect | No |
| Battery Combine | No |
| Battery Inputs | 1 |
| Cable Clearance | For 4/0 AWG Cables: 1.12in (28.45 mm) |
| Color | Red |
| Continuous Rating | 300A |
| Cranking Rating (30 Sec.) | 900A |
| Intermittent Rating | 500A |
| Maximum Voltage | 48V DC |
| Mounting Holes | Accept #10 Screw |
| Stud Material | Tinned Copper |
| Stud Size | 3/8" |
| Stud Torque | 120 in-lb (13.56 Nm) |
| Switch Positions | 2 |
| Switch Type | Single Circuit ON-OFF |
| Terminal Stud Size | 3/8" - 16 (M10) |
| Terminal Stud Torque | 120 in-lb (13.56 Nm) |
| Weight | 0.65Lb (0.29 Kg) |
