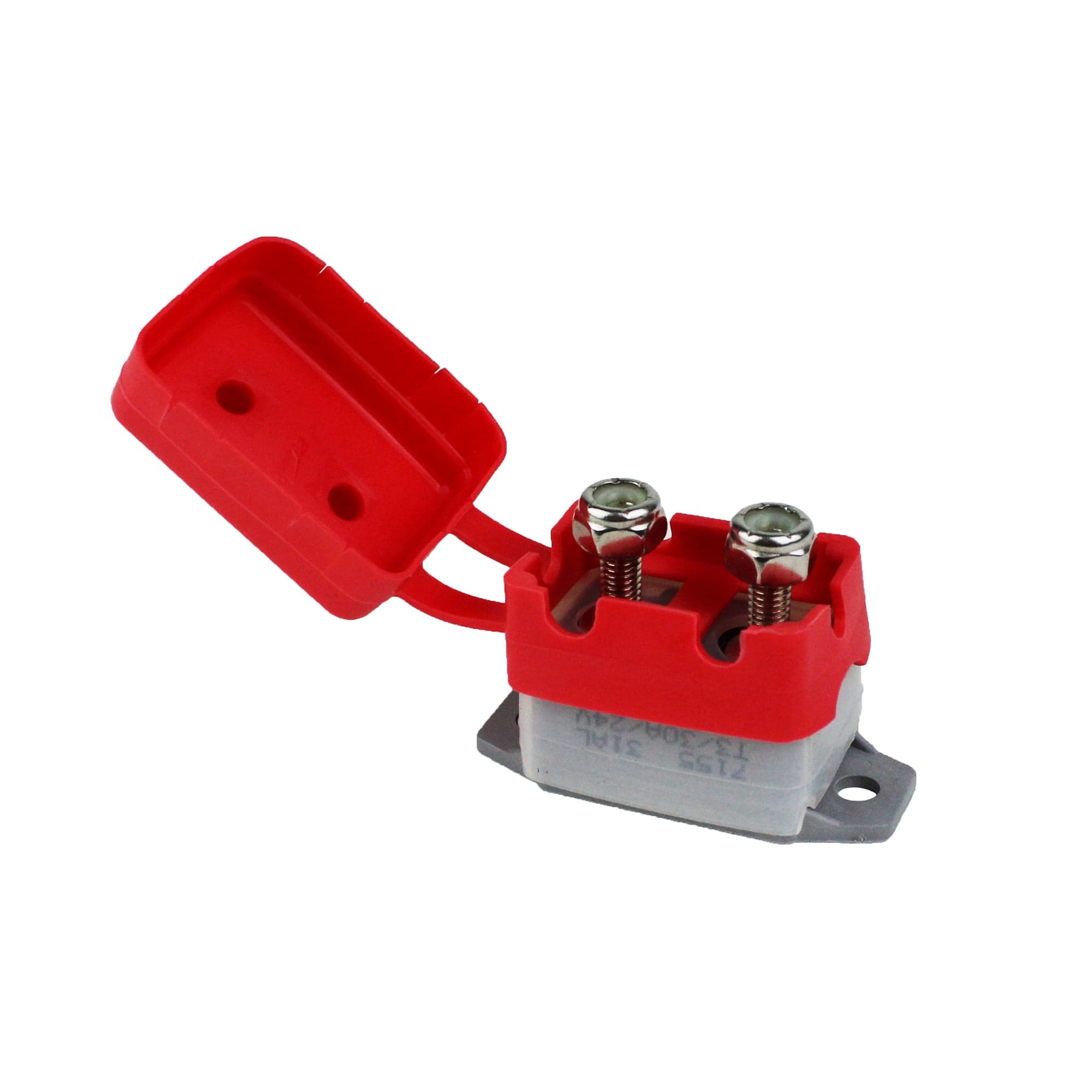

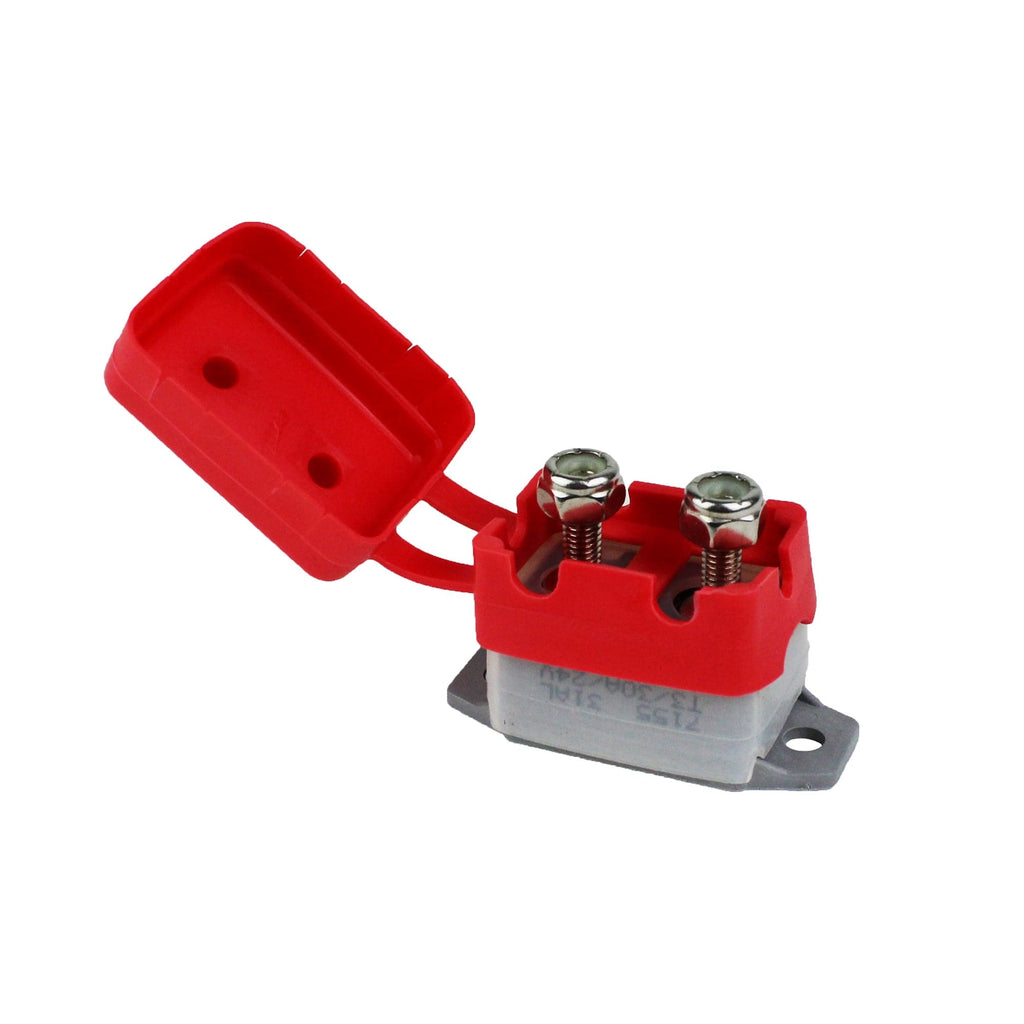

Blue Sea Systems 7155-BSS Marine Grade Circuit Breaker Short Stop - 30A
Roll over image to zoom in Click on image to zoom
Blue Sea Systems 7155-BSS Marine Grade Circuit Breaker Short Stop - 30A

Blue Sea Systems 7155-BSS Marine Grade Circuit Breaker Short Stop - 30A

Blue Sea SystemsSKU: 7155-BSS
Price:
£13.00
Stock:
Sold out
Free Shipping* (Some exclusions apply)TRUE
 More payment options

Description

This is a marine grade short stop circuit breaker, it will automatically trip when it detects a short circuit occurrence in a system, or when it detects too high of temperatures due to circuit overload.

Use a Circuit Breaker instead of a Fuse

  • Corrosion resistant materials to withstand harsh environments
  • IP64 water resistant boot protects against dust and splashing water
  • Push-to-reset operation only disconnects when tripped
  • Stainless steel lock nuts for secure connections
  • Red insulating boot included (retail product only)

Warning: Product may contain materials cautioned by California Proposition 65

Specifications

Amperage 30A DC
Interrupt Capacity 2500A @ 28V DC
Max Operating Temperature 60° C
Maximum Voltage 28V DC
Min Operating Temperature -10° C
Terminal Stud #10-32
Terminal Stud Torque 20 in-lb (2.26 Nm)
Type Thermal trip, Manual reset
