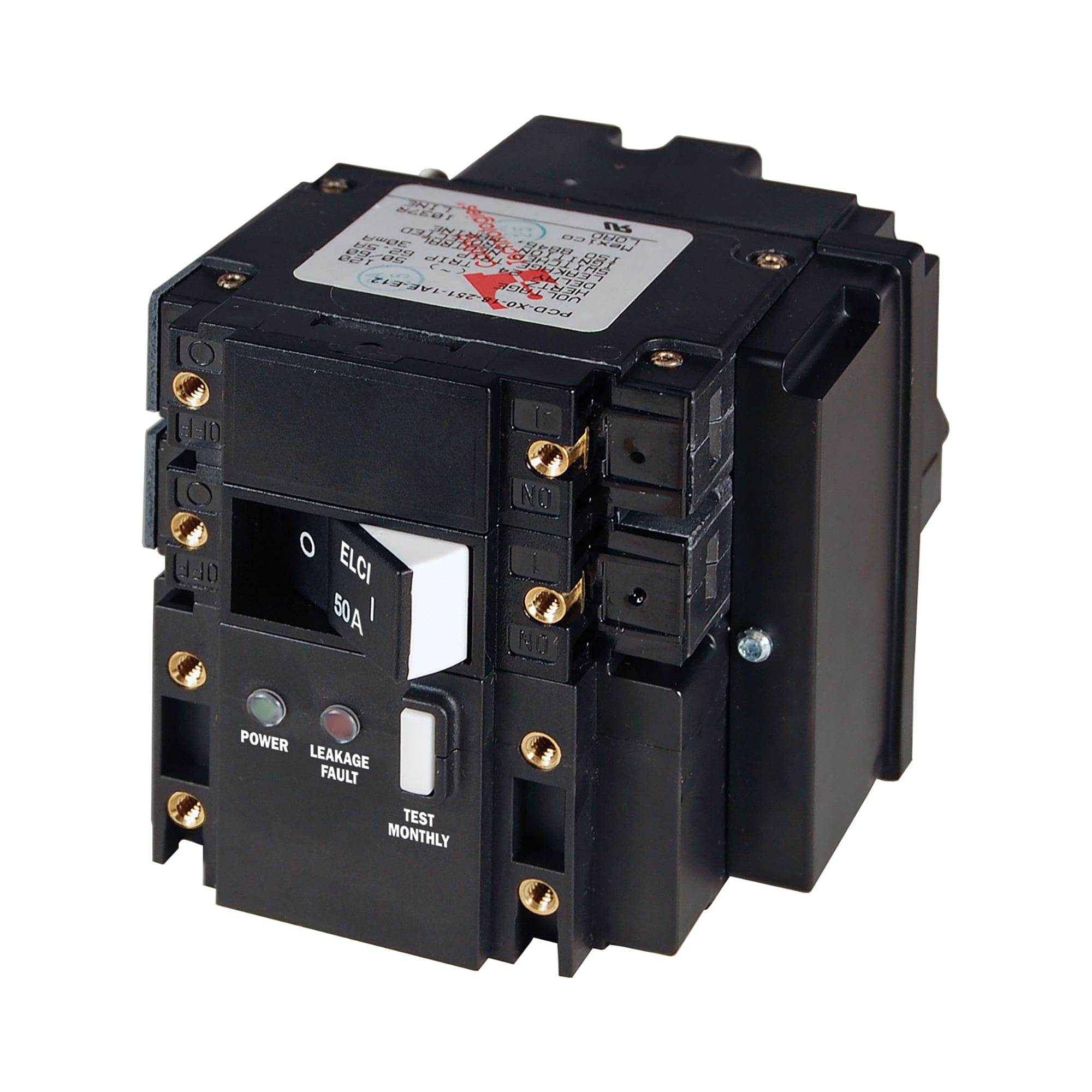

Name: C-Series ELCI Main Circuit Breaker 120V AC 50A Blue Sea Systems 3103
Brand: Blue Sea Systems
SKU: 3103-BSS
Price: 259.0 GBP
Availability: InStock

C-Series ELCI Main Circuit Breaker 120V AC 50A Blue Sea Systems 3103

Roll over image to zoom in Click on image to zoom

C-Series ELCI Main Circuit Breaker 120V AC 50A Blue Sea Systems 3103

Comprehensive Protection: Offers overcurrent and leakage protection in accordance with ABYC E-11 standards for complete boat shore power safety.
Ignition Protection: Complies with UL 1500 external ignition protection requirements for safe operation.
Reliable Trip Function: Trips in case of short circuits, overloads, or ground leakage, ensuring prompt and effective protection.
Convenient Installation: Front panel mount design allows for easy installation in a power distribution panel.

Specifications

Color: Black

Minimum Operating Temperature: -35° C

Maximum Operating Temperature: 66° C

Interrupt Capacity: 5000A

Mounting Screw: #6-32 Stainless Steel

Amperage: 50A

Actuator Style: Flat Rocker

Poles: 2

Max Voltage: 120V AC Per Pole

Circuit Breaker Type: Magnetic Hydraulic - Trip Free

Leakage Trip Amps: 30mA

California Proposition 65: WARNING Cancer. www.P65Warnings.ca.gov
