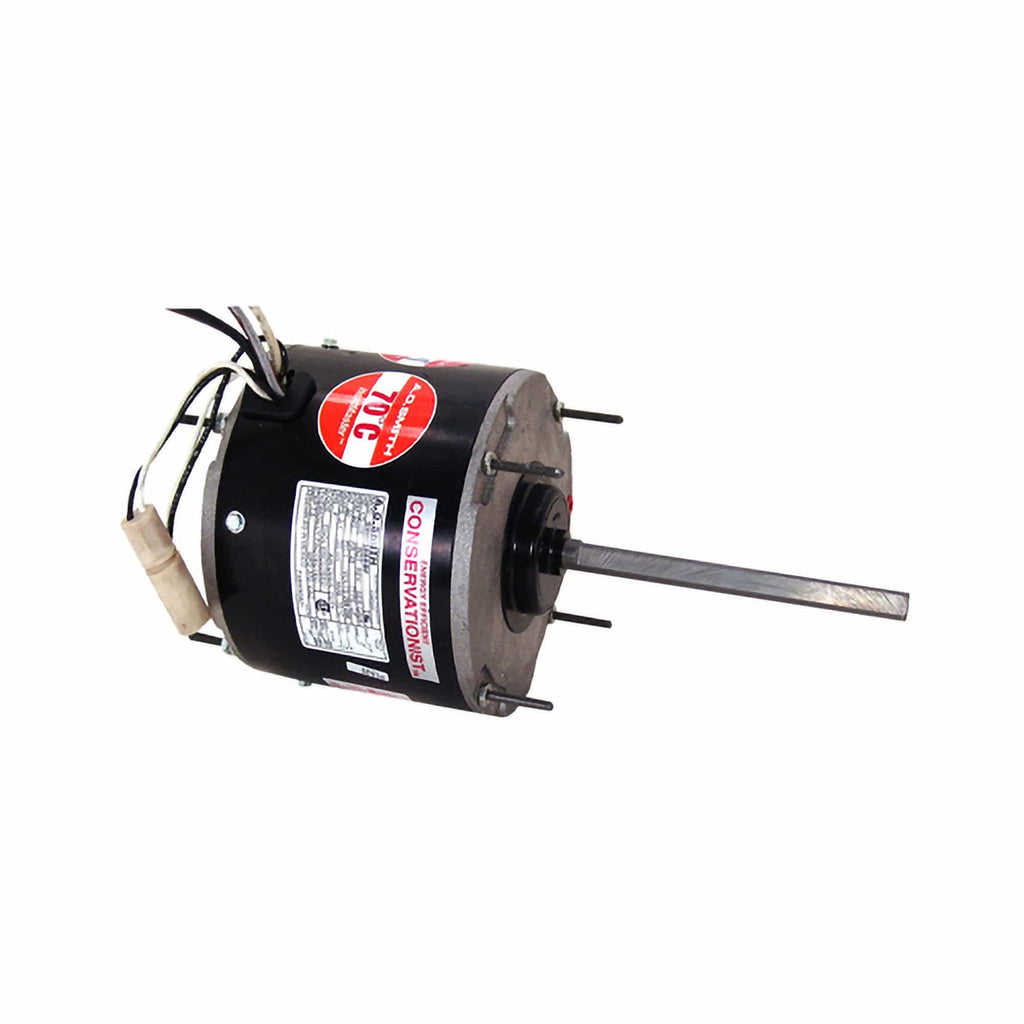

Condenser Fan Motor, 1/2-1/5 HP, 460 V, 1075 RPM, 48 Frame - ORM4659BF
Roll over image to zoom in Click on image to zoom
Condenser Fan Motor, 1/2-1/5 HP, 460 V, 1075 RPM, 48 Frame - ORM4659BF

Condenser Fan Motor, 1/2-1/5 HP, 460 V, 1075 RPM, 48 Frame - ORM4659BF

Save £22.00
CenturySKU: ORM4659BF
Price:
£258.00 £280.00
Stock:
In stock (2 units)
Free Shipping* (Some exclusions apply)TRUE
 More payment options

Description

5.6" Diameter - 48 Frame
Permanent Split Capacitor
Thermally Protected
Totally Enclosed Air Over
Class F Insulation, 70°C Ambient
Ball Bearing
1/2" Diameter Shaft with Double Flat
48" Leads
Extended Studs Shaft End and Opposite Shaft End, Mounting Holes in Shell, Belly Band


Motor Voltage 460
Ambient Temp. 70°C
Amps 1.50
Brand Century
Bearings: Ball
Capacitor: Required 10MFD/370V
Certifications: UL, CSA
Country of Origin: CHINA
Enclosure: TEAO
H.P.: 1/2-1/5
Hertz: 60
Insulation Class: F
Length Less Shaft (In.): 5-5/8
Material: Rolled Steel
Motor Rotation: Reversible
Motor Type: PSC
Mounting Option: Extended Studs
NEMA Frame: 48
Overload Protection: Automatic
Phase: Single
RPM: 1075
Service Factor: 1.00
Shaft Dimensions (In.) Dia x Lgth: 1/2 x 6-1/2
Speeds: 1
