Description

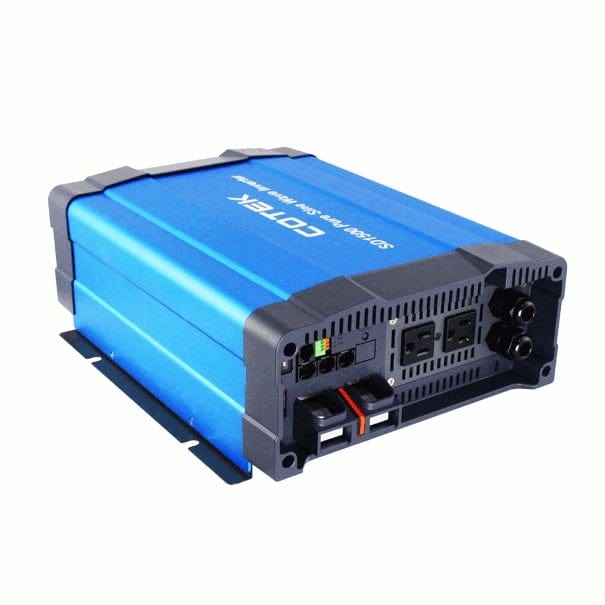

This is a 1500W 24V DC pure sine wave inverter. It provides temperature and load cooling and maintains a wide operating temperature range
- Parallel redundancy design for power expansion
- Multiple industrial applications that create 1Ф3W / 3Ф4W power systems
- Automatic master mechanism to eliminate single point
- failure and optimize reliability
- Built-in ATS and AC circuit breaker
- RS-232 communication
- Input and output fully isolation
- Output voltage / power saving mode selectable by DIP switch or
- remote control (CR-10)
- Input Protection: Reverse Polarity (Fuse) / Under Voltage / Over Voltage
- Output Protection: Short Circuit / Overload / Over Temperature /
- Over Voltage
Warning: Product may contain materials cautioned by California Proposition 65
Specifications
| AC Range | 100 / 110 / 115 / 120VAC±12.5% |
| Certifications | UL458 |
| Circuit Breaker | 20A |
| DC Voltage | 24VDC |
| Efficiency | 89% |
| EMC | FCC Class B |
| Frequency Selectable | 50 / 60 Hz |
| Fuse | 20A x 6 |
| No Load Power Consumption | @24VDC |
| On Mode @ No Load Mode | <1.2A |
| On Mode @ Save Mode | 0.35A |
| Output Frequency | 50 / 60Hz ±0.1% |
| Output Voltage | 100 / 110 / 115 / 120VAC ±3% |
| Peak Power | 1800W |
| Rated Power | 1500W (de-rating after 40°C, refer to de-rating curve) |
| Relative humidity | 90% |
| Storage Temp | -40 - +70 C |
| Surge Power | 2400W |
| Synchronous Frequency | 47-57 / 53-63 Hz |
| THD | < 3% @ under condition: greater than 1.15 times |
| Transfer Switch | Optional STS module : <4ms / Standard ATS: Inverter to utility AC : <5ms.; Utility AC to inverter : <10ms. |
| Voltage Range | 20.0-32.0VDC |
| Waveform | Pure Sine Wave |
| Working Temp | -20 - +60 C |
