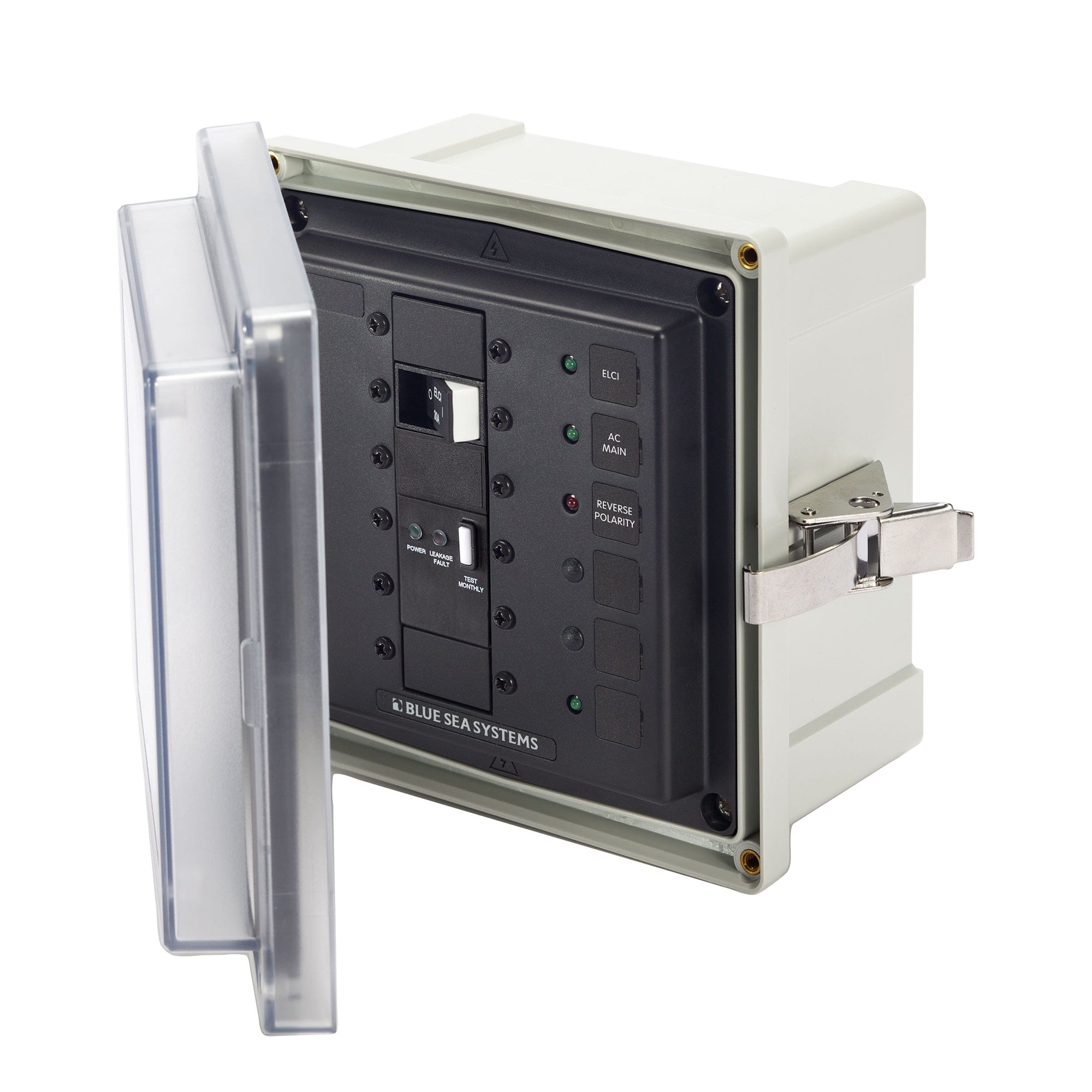

Enclosure Sms Panel 120/240vac Elci 50a Blue Sea Systems 3119-BSS

SMS Surface Mount System Panel Enclosure - 120/240V AC / 50A ELCI Main - 1 blank circuit position

• Panel enclosure for ELCI Main circuit breakers and other large frame devices.
• Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of the shore power inlet
• Includes one 120/240V AC / 50A ELCI Main and one blank position
• Blank apertures for custom breaker loading
• Glass filled polycarbonate mounting box
• Clear cover allows easy view of circuit breaker status
• Overlapping cover for strength and increased gasket protection
• Oversized, formed in place seamless PUR gasket
• Easily removable stainless steel hinge pin for unobstructed installation
• Stainless steel latch secures cover without penetrating the enclosure
• Blank circuit positions accommodate Carling Technologies™ A- and C- Series Flat Rocker and ELCI Main circuit breakers
• Stainless steel mounting hardware included
• Includes waterproof glands

Minimum Operating Temperature: -35 C
Maximum Operating Temperature: 66 C
Cover Screws and Hardware: 10-32 Stainless Steel
Enclosure Size: 6.0 x 6.0 x 4.0 in.
Exterior Overall Dimensions: 7.6 x 7.4 x 4.7 in.
Mounting Hardware: 1/4 in. Diameter, #12 (6 mm)
Weight: 7.00lb (3.18 kg)
