Description

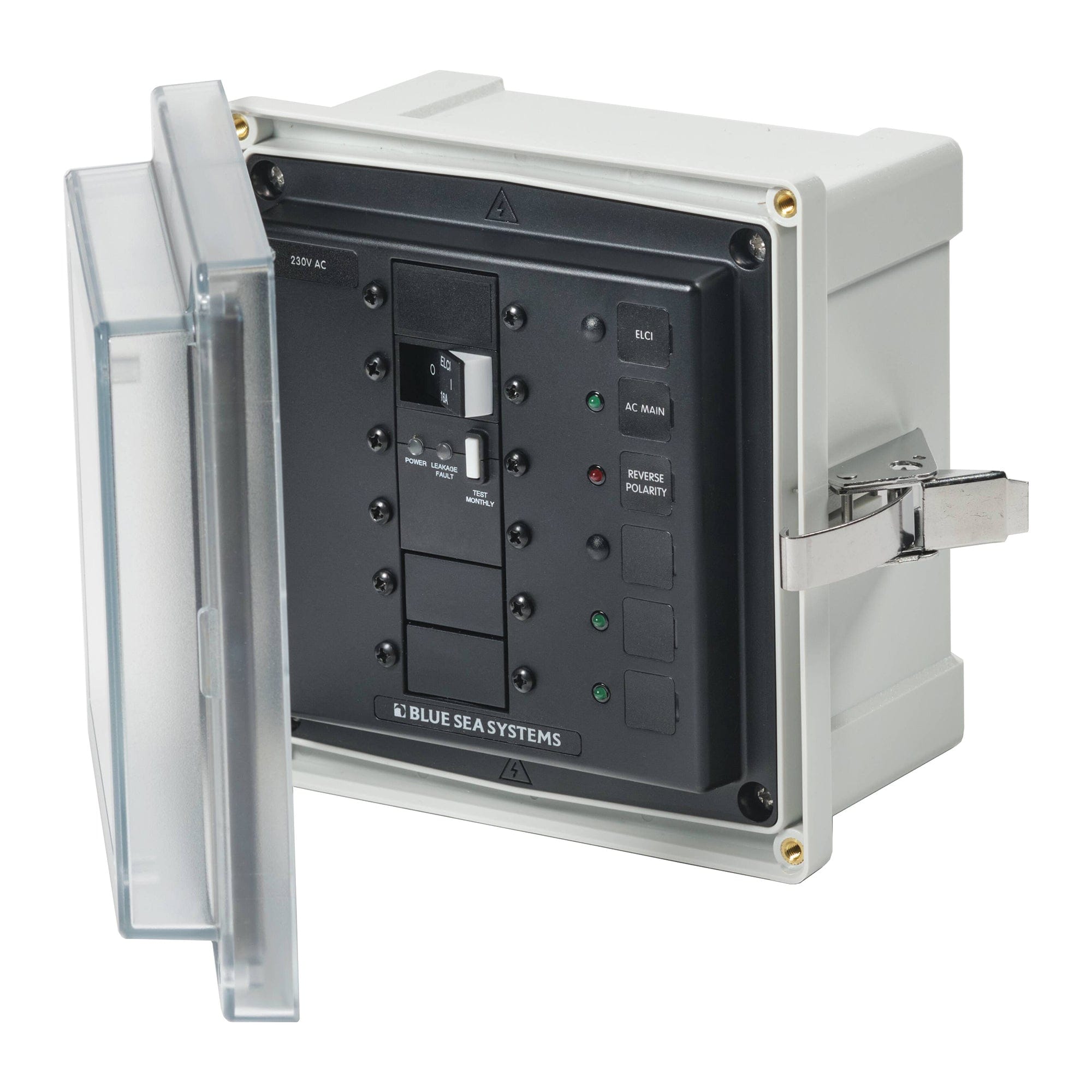

SMS AC Circuit Breaker Panel Enclosure 230VAC ELCI 16A 3121
Panel enclosure for ELCI Main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10 feet of AC shore power inlet.
- Models available with ELCI Main circuit breakers for 120V 30A, 120V 50A, and 120/240V 50A
- Blank apertures for custom breaker loading
- Glass filled polycarbonate base
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Blank circuit positions accommodate Carling Technologies A and C Series Flat Rocker and ELCI Main circuit breakers
- Stainless steel mounting hardware included
Circuit Breaker Type: 1 × ELCI Main 230V, 16A, 30mA (3091)
Cover Screws and Hardware: 10-32 stainless steel
Enclosure Size: 152 mm x 152 mm x 102 mm / 6.0" x 6.0" x 4.0"
Exterior Overall Dimensions: 192 mm x 188 mm x 120 mm / 7.6" x 7.4" x 4.7"
Glands Included: 2 × (3124) 3 × (3125)
Labels Included: 1 × AC Main, 1 Reverse Polarity 1 × ELCI, 30 Basic AC (4206) Panel Voltage
LEDs Installed: 1 × red Reverse Polarity 230V AC (8166) 3 × green ON indicating 230V AC (8134)
Mounting Hardware: 1/4", #12, (6 mm)
Temperature Range: -35 C to 66 C
