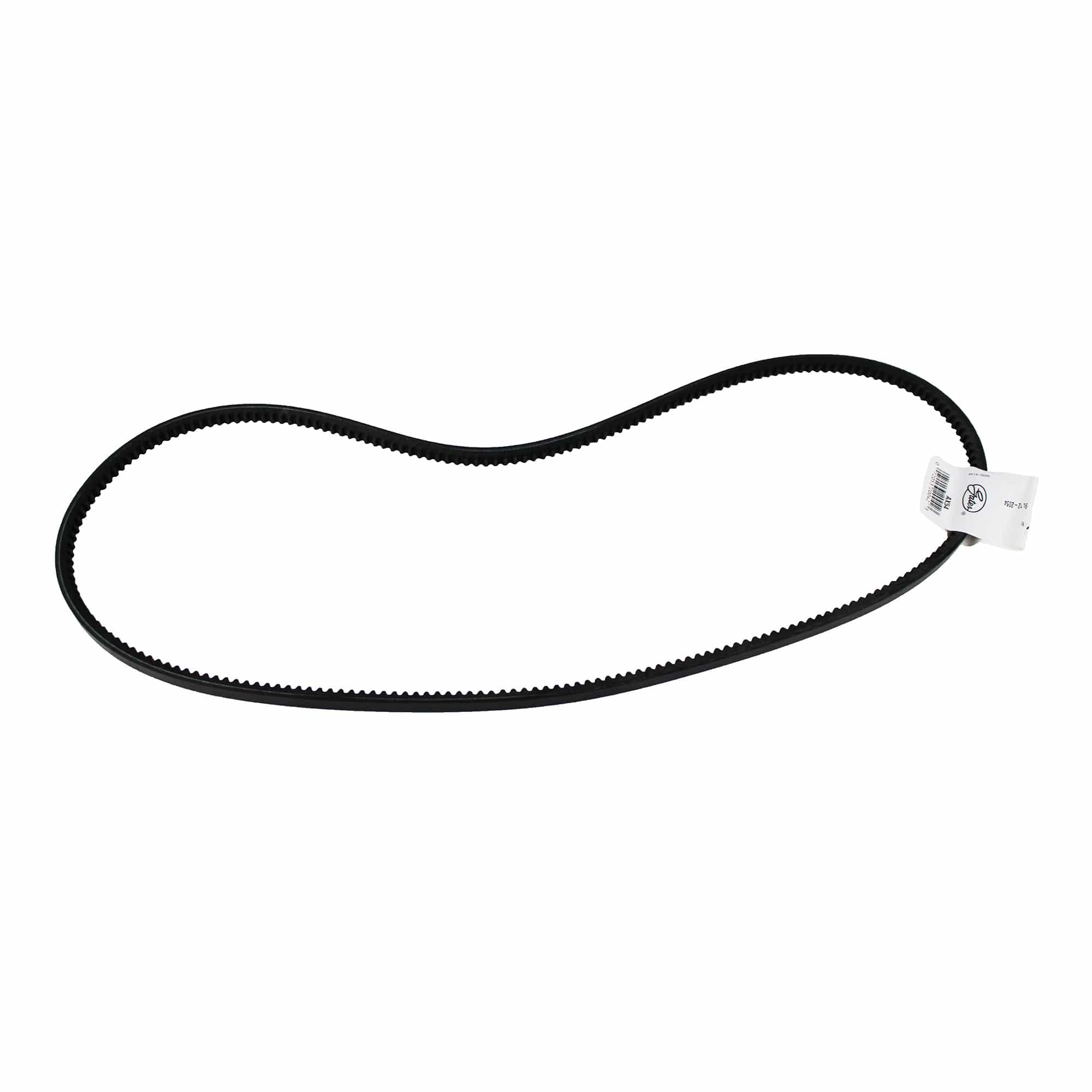

Gates AX51 Notched Belt

AX section V-belts have a classical, cogged design with a nominal top width of 1/2" and a nominal thickness of 5/16" (actual dimensions may vary slightly). Cogged V-belts have grooves across the width of the belt and are identified with an "X." They run cooler than standard V-belts because the cogs allow the belt to bend and flex against the pulley, dissipating heat. They are useful for small diameter pulleys and drives with twists and turns. These V-belts are used in drive systems that require power transmission of 1 HP or greater.

Outside Length: 53 in
Top Width: 1/2 in
Thickness: 5/16 in
