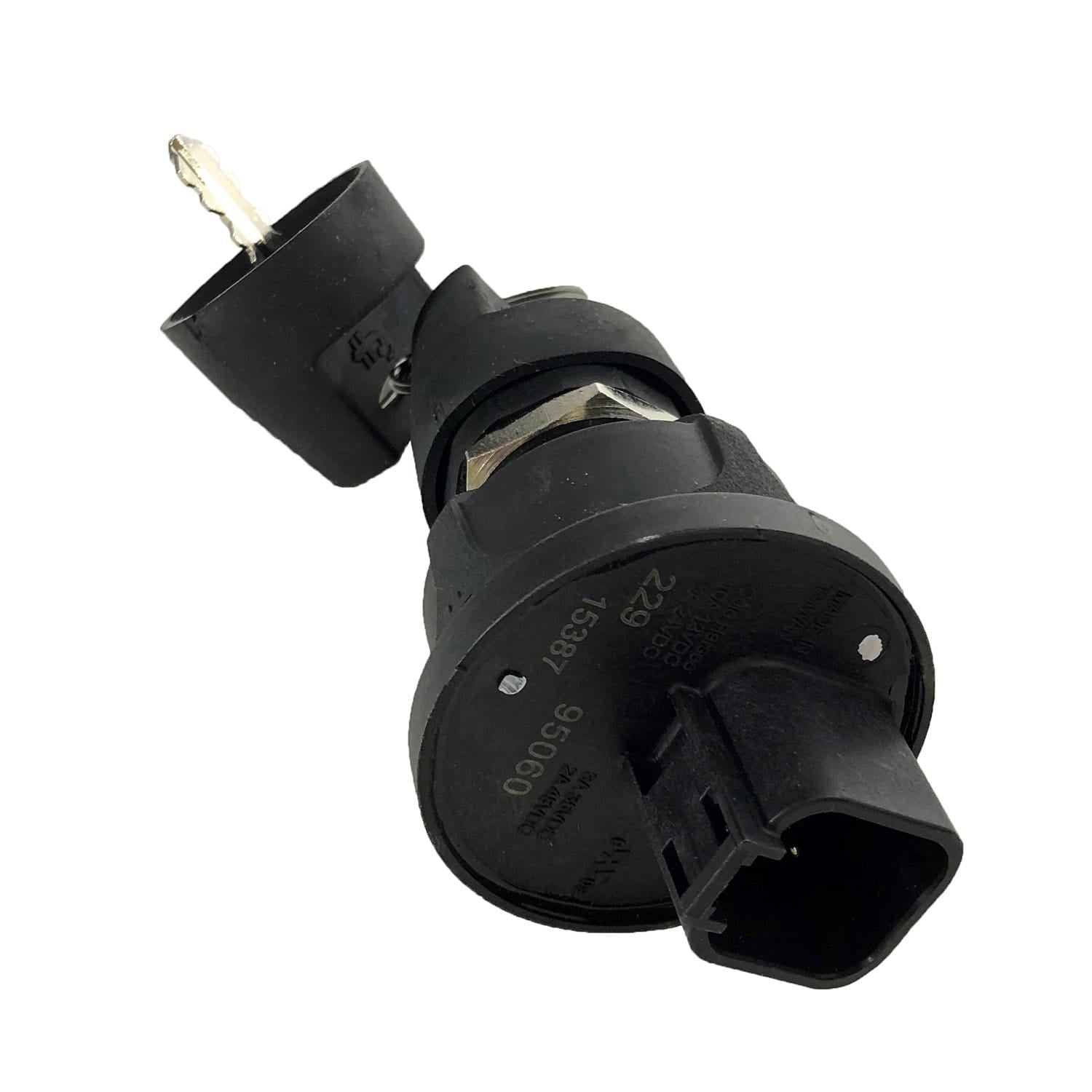

Littelfuse 95060 Ignition Switch IGN 4 Positions

LittelfuseSKU: 95060

Price:
Sale price£14.00
Stock:
In stock (4 units)
Free Shipping* (Some exclusions apply)true

Description

The 95060 is a durable and versatile ignition switch from Littelfuse. This ignition switch series doubles as rotary switches, accommodating various voltages (10A at 12V, 5A at 24V, 3A at 36V, 2A at 48V DC). Crafted from robust engineering-grade plastic, these switches endure mechanical shock and vibration, resisting corrosion. The integrated Deutsch-type socket ensures swift electrical connections, preventing moisture and dust ingress. UL-tested and SAE J259 recognized, they achieve IP67 sealing (with connector), and offer customization in position, spring return, key boot style, marking, actuator interface, and anti-restart features.

Features:

  • Engineering thermoplastic construction
  • Fully sealed contact area using O-rings and ultrasonic welding
  • Integrated Sealed Deutsch Connector Interface
  • Anti-restart and spring return options available
  • Tested to SAE J259 for ignition switches
  • Supplied with two matching keys, with or without boot
  • Custom logo can be molded on the boot
  • Multiple key codes or keyed alike available
  • Key is removable only at the ‘Off’ position

Warning: Product may contain materials cautioned by California Proposition 65

Specifications

actuator Key
case material Engineering Thermoplastic
contacts Copper
ignition 10A/12V DC
keyed Bitted mixed codes
mounting Stem - M22 x 1.5
position 4 - Acc - Off - Acc/Ign - Start
safety SAEJ259 / UL1054
terminals Deutsch DT06-6S
