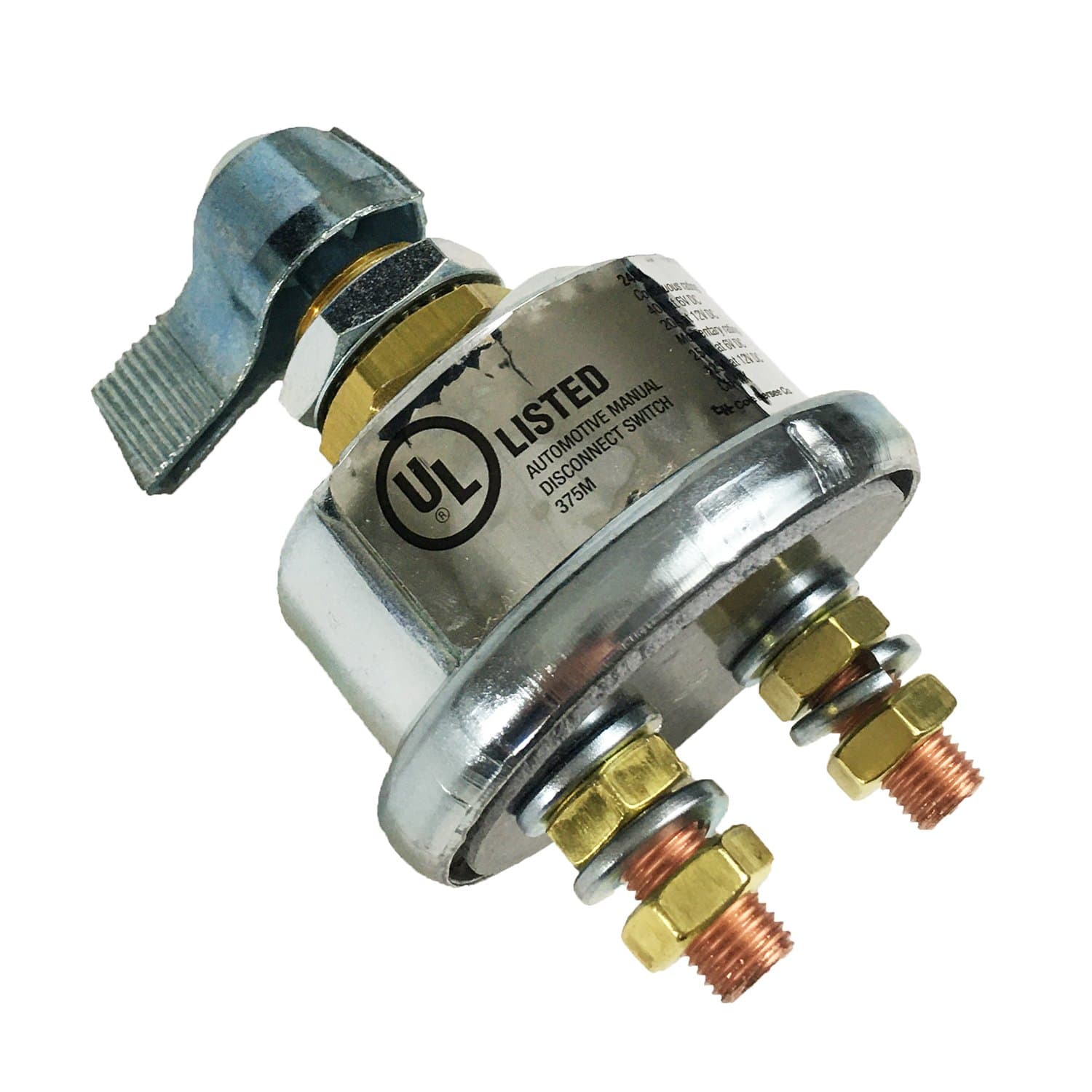

The 2484 is a SPST single pole, metal body, battery disconnect switch by Littelfuse.

• Plated-steel or brass housing, depending on the model, is ideal for construction, agricultural, and commercial vehicle applications
• Single-pole, single-throw (SPST) circuitry for disconnecting a battery from a vehicle electrical system
• Available with brass, copper, or silver-plated contacts for high conductivity and low contact resistance
• Actuator options include chrome-plated or die-cast levers for ease of operation and removable Hencol keys for added security
• O-ring and gasket sealing options are available for weather resistance
• Options with an anti-rotation locator pin are available for simplified mounting
• Compatible with 24505 series lockout lever kits (sold separately), which enable the use of a padlock for safety and security

Specifications

Current Rating (Continuous in Amps): 40 Amps

Current Rating (Inrush) in Amps: 250 Amps

Max Voltage Rating: 6

Circuitry: SPST

Actuator: Diecast Lever

Contact Material: Copper

Housing: Plated Steel
