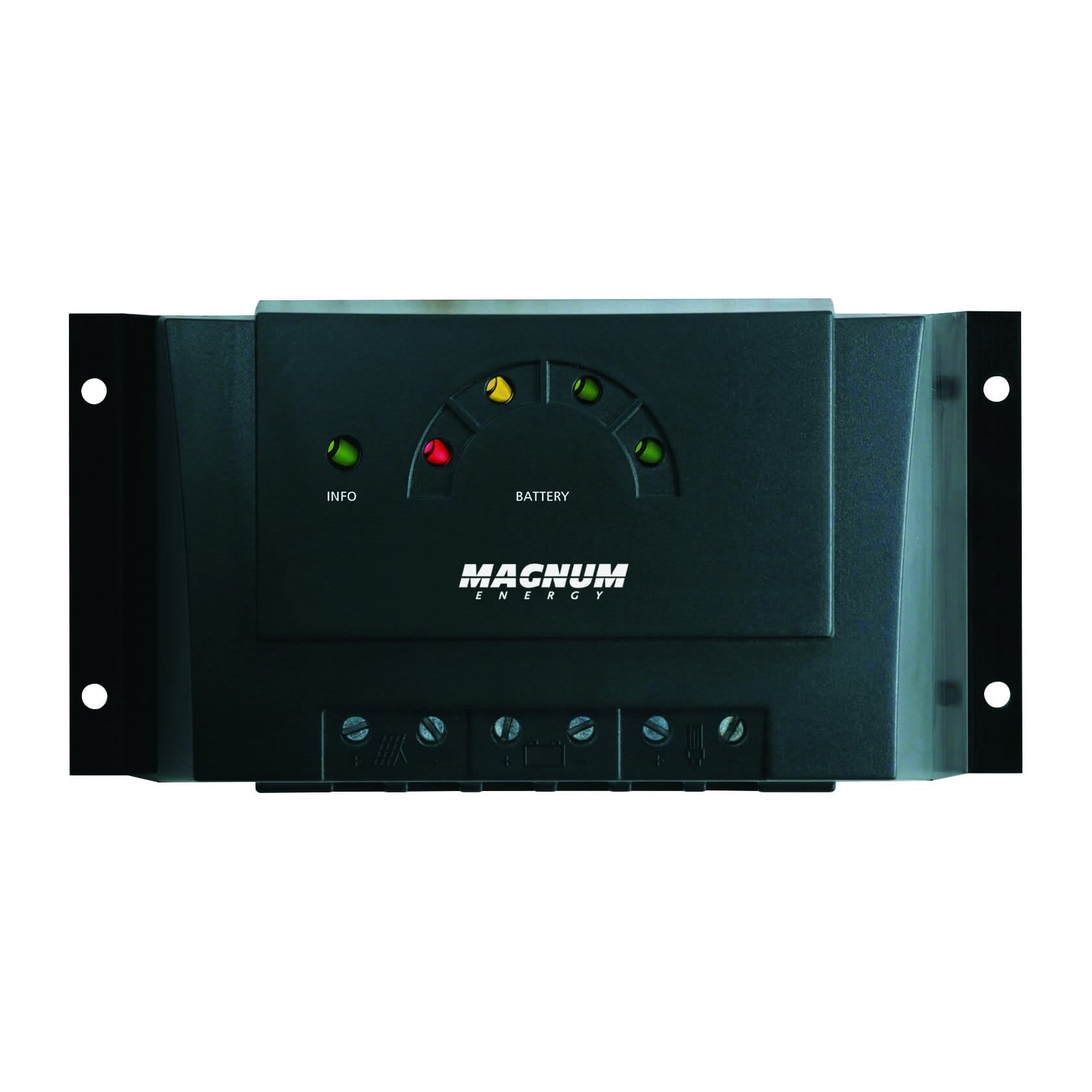

Magnum CE-40 12/24V 40 Amp PWM LED Solar Charge Controller, Integrated Light Controller

Ambient temperature

-13° F to 122° F (-25° C to +50° C)

Battery Voltage

9 V to 17 V (17.1 V to 34 V)

Boost charge voltage

14.4 V (28.8 V)

Charge current

40 ADC

Deep discharge protection

11.2 V to 11.6 V (22.4 V to 23.2 V)

Degree of protection

IP 30

Dimensions

7.4” x 3.8” x 1.8” (187 mm x 97 mm x 45 mm)

End-of-charge voltage

13.9 V (27.8 V)

Load current

40 A

Module current

40 A

MPPT

No

Open circuit voltage

solar module (at minimum operating temperature) <47 V

Output Current

40 A

Power Consumption

< 10.5 mA

Reconnection voltage

12.4 to 12.7 V (24.8 V to 25.4 V)

Set battery type

flooded

Shipping dimensions

7.6” x 4.1” x 2” (195 mm x 105 mm x 50 mm)

Shipping weight

.97 lb (440 g)

System voltage

12 V (24 V)

Terminal (fine/single wire)

AWG 6 / 4 (16 mm2 / 25 mm2)

USB charge socket

5.2 V / 1.5 A

Weight

.76 lb (345 g)
