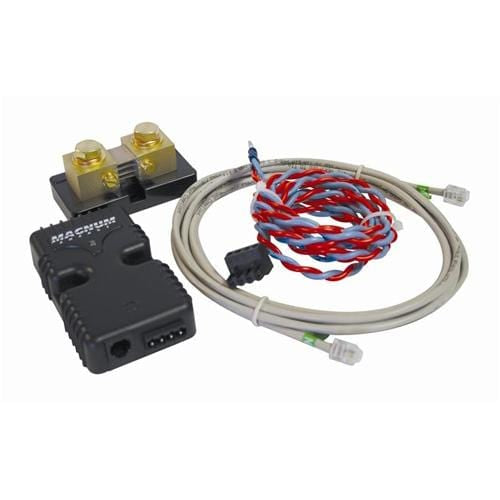

Magnum ME-BMK-NS Battery Monitor Kit (No Shunt)

amp hours in/out

32,768 amp hours (1 AH increments)

battery soc

% 0 to 100% (1% increments)

communication cable

4-conductor, 10' twisted pair, telephone standard

dc amps

0.1 to 999 (1.0%)

dc volts

7 to 70 (0.5%) auto voltage detection

minimum/maximum dc

7 to 70 VDC, resettable

power draw

< .6 watts

remote requirements

Use with ME-RC with firmware version of 2.0 or higher or an ME-ARC (all revisions)

sense wire

Twisted pair-blue & orange, 5' length, 18 AWG wire
