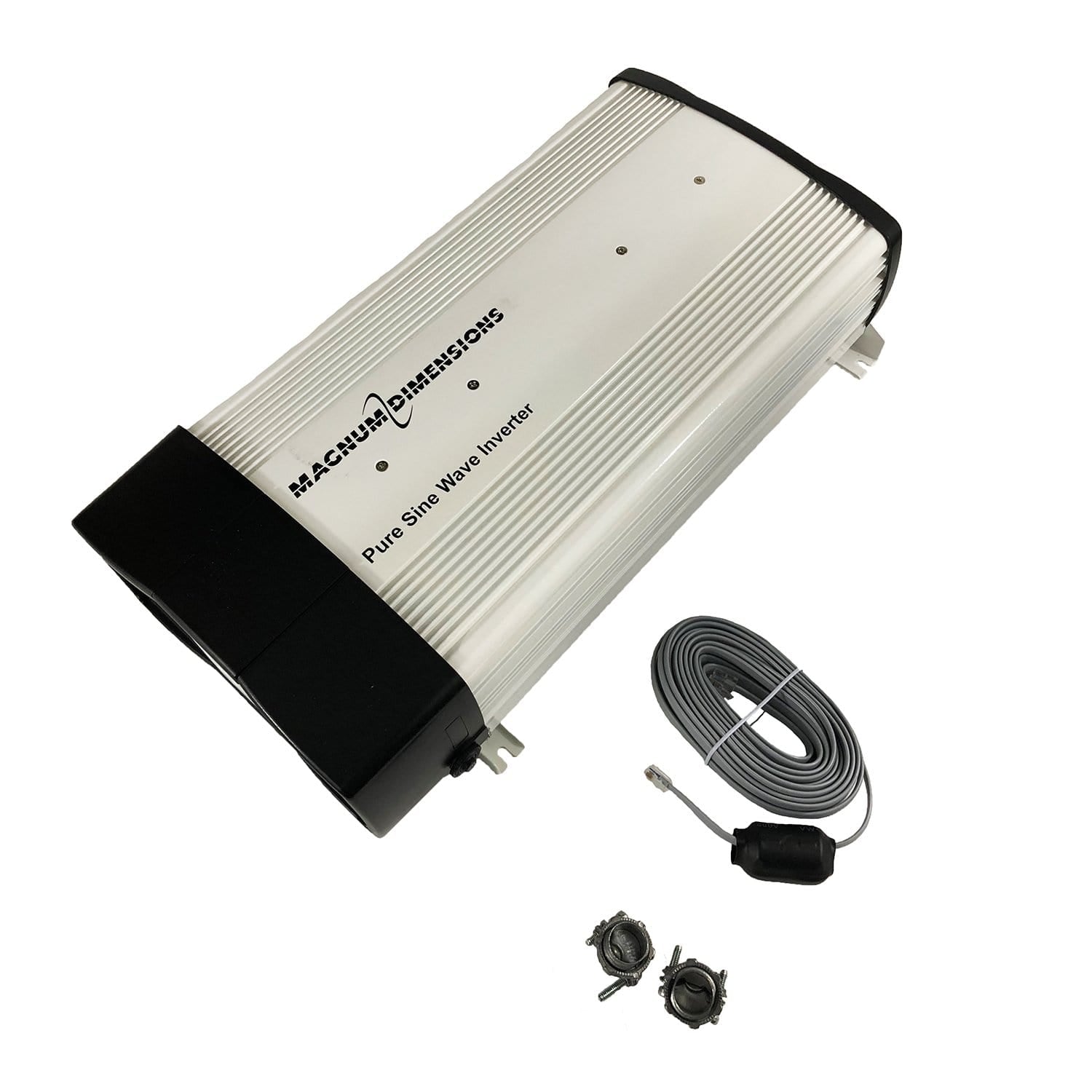

Magnum Dimensions CSW2012-X 2000 Watt 12 Volt Pure Sine Wave Inverter

brand

Magnum Dimensions

continuous output power

at nominal DC voltage: 2000 watts

dimensions

17"L x 9"W x 4.5"H

high voltage shutdown

15.5 VDC

input current

193 DCA

input voltage

12 Volts

input voltage range

DC: 10.5 - 15.5 VDC

max operating altitude

9843' (3000 m) above sea level

no load draw

< 1.2 ADC

number

-20 degrees C to +60 degrees C (-4 degrees F to 140d degrees F)

operating humidity

0 to 90% RH non condensing

operating temperature

-0 degrees C to +40 degrees C (32 degrees F to 104 degrees F)

optimal efficiency

> 90%

output current

AC: 16.6 AAC

output frequency

AC: 60 Hz +/- 0.5 Hz

output voltage

120 Volts

output voltage range

AC: 104 - 127 VAC

peak surge current

4000 watts

total harmonic distortion

< 3%

wattage

2000 Watts

waveform

Pure Sine Wave

weight

13 lbs
