Description

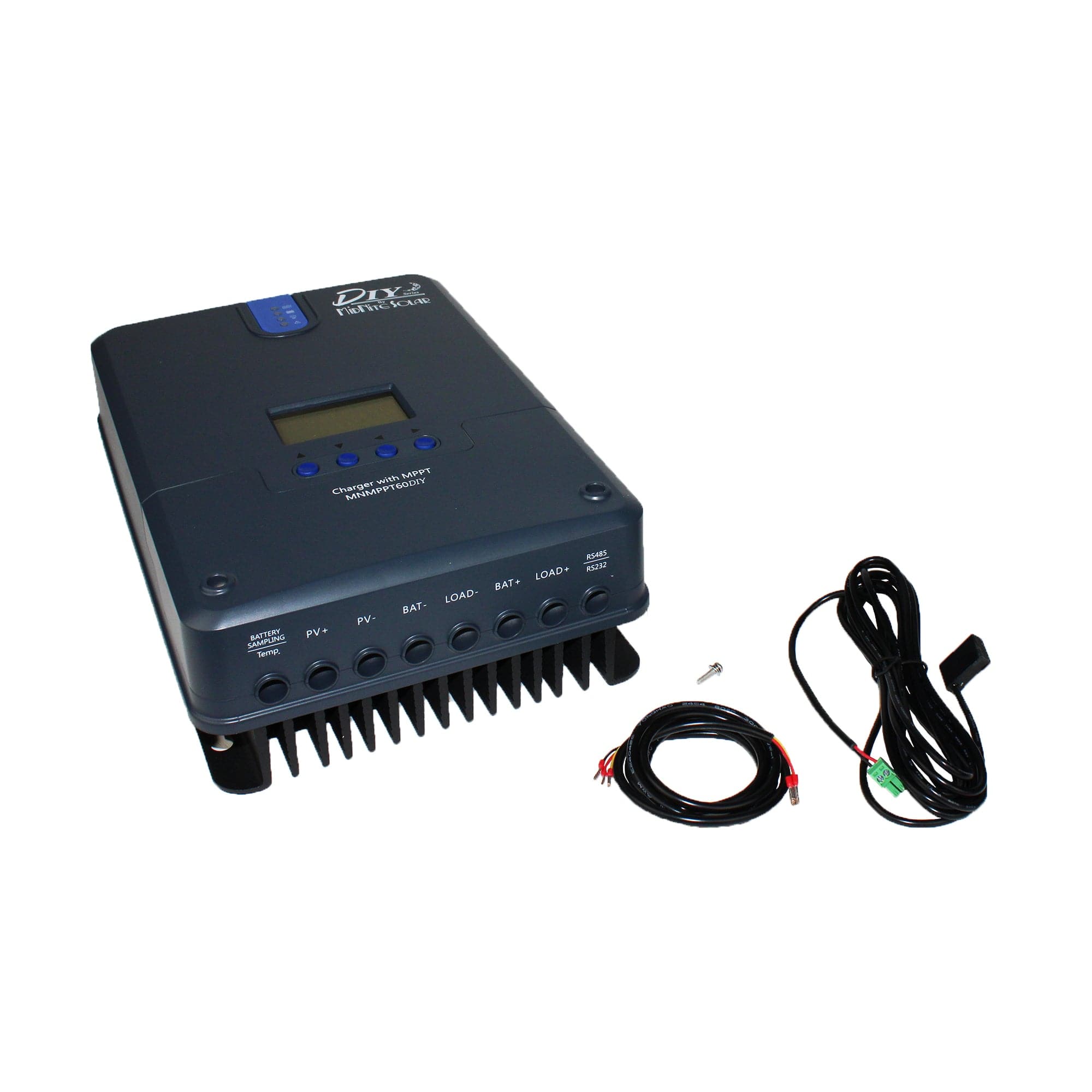

This is a DIY MPPT charge controller with 60A of charging capability and up to 150VDC input it is a powerful and flexible charge controller ideal for any 12V, 24V, or 48V battery system. It features an LCD display, optional Bluetooth connectivity and it lithium compatible.
- True Maximum Power Point Tracking "MPPT"
- LCD display standard
- User friendly buttons and prompts
- Optional Blue Tooth for cell phone connectivity
- 12/24/36/48V auto detection
- Lithium compatible
- Up to 99% efficient
- 20-30% more efficient than PWM style controllers
- Over Current Protection, allows for more PV than the unit can process
- Reverse current protection for night, prevents batteries from back feeding the solar modules
Warning: Product may contain materials cautioned by California Proposition 65
Specifications
| Battery Type | Flooded or sealed lead acid, lithium ion and others |
| Battery Voltage | 12, 24, 36, or 48-volt nominal |
| Dimensions | 285mm x 205mm x 93mm |
| Environmental Rating | Indoor Use Only |
| Idle Consumption | 0.7 to 1 Watt |
| Interface | LCD Display and buttons standard, Blue Tooth module is optional |
| Max. Input Voltage | 150VDC |
| Max. Output Current | 60A |
| Model | MNMPPT60DIY |
| Operating Temperature | -35 deg C to + 45 Deg C |
| Warranty | 2-year warranty from Manufacturer |
