Description

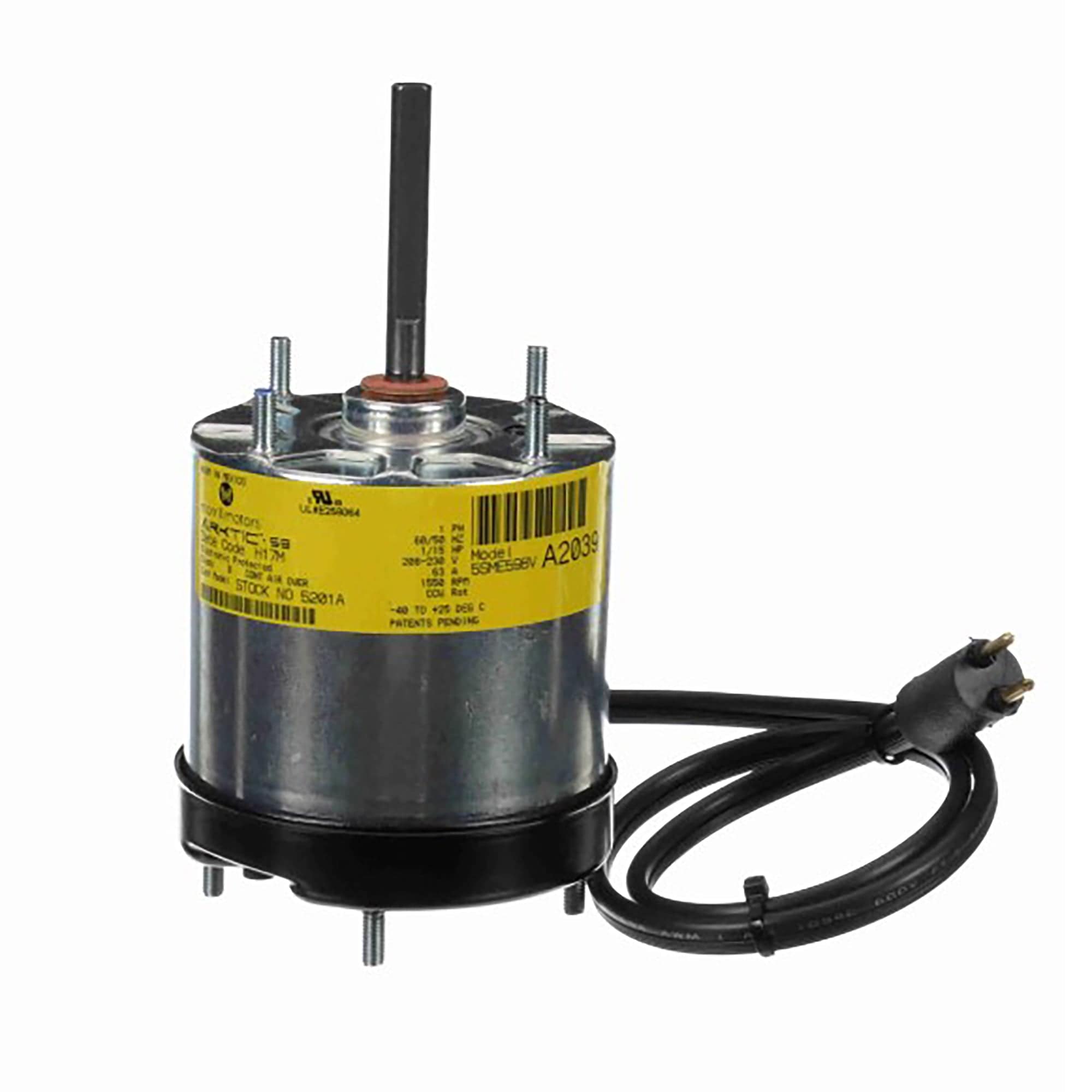

Morrill Motors ARKTIC 59 Refrigeration Motor, 1/15 HP, 1 Ph, 60/50 Hz, 208-230 V, 1550 RPM, 3.45 Frame, TEAO - 5201A
ARKTIC 59 - Refrigeration Motor
3.3" Diameter
Electronically Commutated (ECM)
Thermally Protected
Totally Enclosed Air Over
Class B Insulation
Ball Bearing
5/16" Diameter Shaft with Flat
24" Leads with Molded Plug
Extended Studs Shaft End and Lead End
Phase: 1 Output HP: 1/15 Hp
Output KW: 0.052 kW Voltage: 208-230 V
Speed: 1550 rpm Frame: 3.3
Enclosure: Totally Enclosed Air Over Thermal Protection: Automatic
Ambient Temperature: 25 °C Frequency: 60/50 Hz
Current: 0.63 A Duty: Continuous Air Over
Insulation Class: B UL: Yes
CSA: Y CE: N
