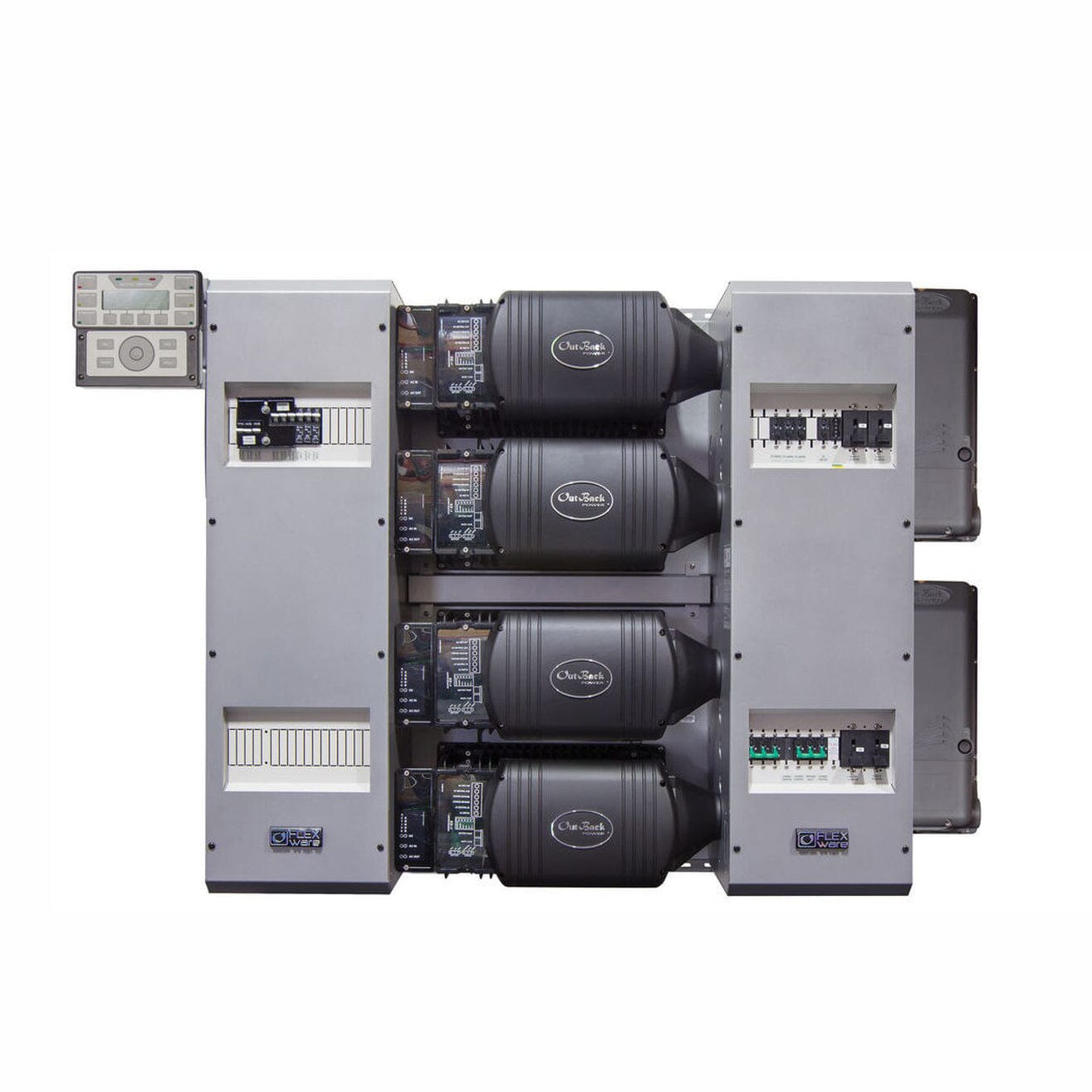

Outback Power FP4 VFXR3648A-01 Flex Power 14.4 KW, 48 VDC Pre-Wired Quad Inverter System

accessory ports

Remote temperature sensor (included), MATE3s and HUB communications

ac input frequency range

54 to 66 Hz (45 to 55 Hz)

ac input voltage range

(MATE Adjustable) L1-N or L2-N: 85 to 140VAC

ac output frequency

60Hz (50Hz)

ac output voltage

120/240VAC (200 to 260VAC)

advanced battery charging

Flooded, gel, AGM, lithium-ion and flow chemistry

battery charge output

45ADC

continuous ac output current

(@ 25┬░C): 30AAC

continuous power

(@ 25┬░C): 3600VA

dc input voltage range

42 to 68VDC

dimensions

22 x 13 x 22 in.In.

efficiency

Typical-93%

grid-interactive frequency

59.3 to 60.5Hz

grid-interactive voltage range

L1-N or L2-N: 106 to 132VAC

idle power

Invert mode, no load: 34W Search: 10W

instantaneous power

6000VA

maximum ac input current

60AAC

nominal dc input voltage

48VDC

output voltage regulation

┬▒2%

peak power

4000VA

surge power

5400VA

temperature range

Rated: ΓÇô20 to 50┬░C Maximum: ΓÇô40 to 60┬░C

warranty

Standard 5 year, extended 10 year available

weight

82 lbs
