Power Products Blue Sea Systems 7148-BSS 187 Series Circuit Breaker Surface Mount 150A
Roll over image to zoom in Click on image to zoom
Power Products Blue Sea Systems 7148-BSS 187 Series Circuit Breaker Surface Mount 150A

Power Products Blue Sea Systems 7148-BSS 187 Series Circuit Breaker Surface Mount 150A

Save £4.00
Power ProductsSKU: 7148-BSS
Price:
£52.00 £56.00
Stock:
Sold out
Free Shipping* (Some exclusions apply)true
 More payment options

Description

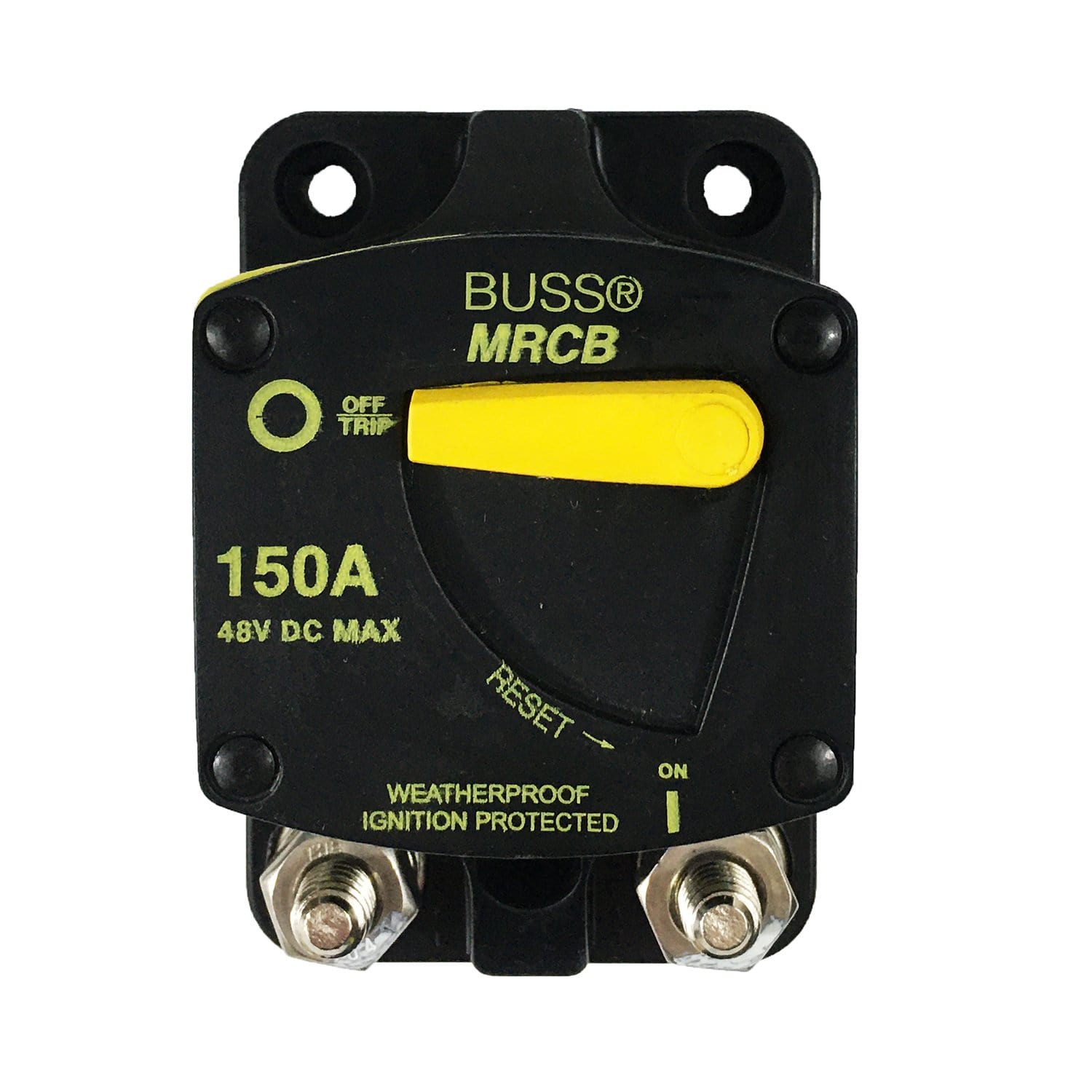

The 7148-BSS is a 187 series 150 Amp surface mountable circuit breaker

Specifications

amperage 150A
case material Thermoset Polyester
circuit breaker class Type III - switchable/manual reset - trip free
circuit breaker type Thermally Responsive Bi-Metal Blade
maximum operating temperature 85┬░ C
maximum voltage 48V DC
minimum operating temperature -40┬░ C
mounting Surface Mount
mounting hole Accept #10 (M5) Screw
terminal stud size 5/16" - 18
terminal stud torque 75 in-lb (8.47 Nm)
weight 0.58lb

You May Also Like

Power Products Blue Sea Systems 7475-BSS C-Series Flat Rocker Circuit Breaker Double Pole 150A
Power Products Power Products Blue Sea Systems 7475-BSS C-Series Flat Rocker Circuit Breaker Double Pole 150A
£42.00
Blue Sea Systems 4352-BSS Power Products BelowDeck Circuit Breaker Panel, 6 Positions
Blue Sea Systems Blue Sea Systems 4352-BSS Power Products BelowDeck Circuit Breaker Panel, 6 Positions
£31.00
Blue Sea Systems 7057-BSS Circuit Breaker, Push Button, Quick Connect, 20 Amps
Blue Sea Systems Blue Sea Systems 7057-BSS Circuit Breaker, Push Button, Quick Connect, 20 Amps
£8.00

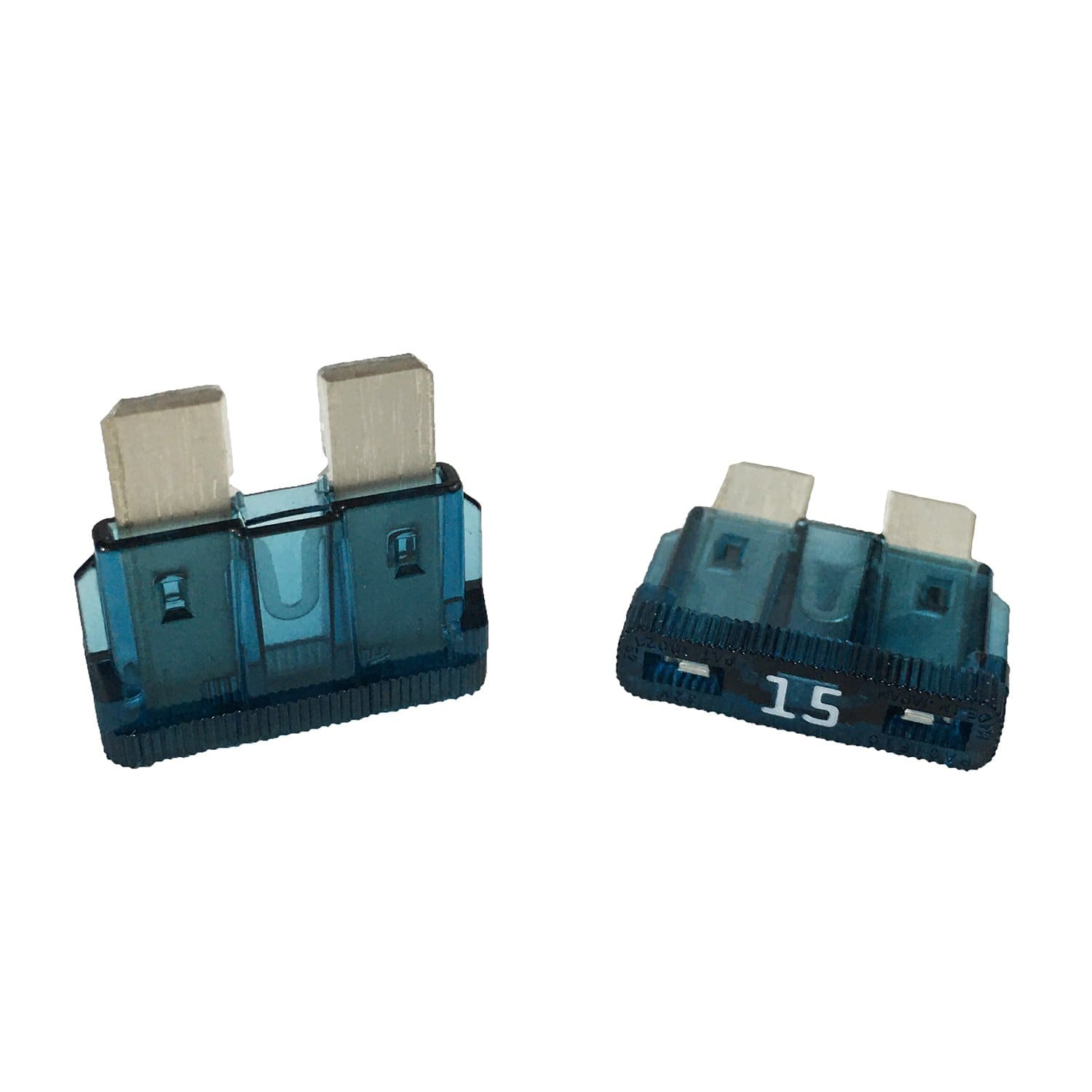

Power Products Blue Sea Systems 5242-BSS ATO/ATC Fuse 15A
Power Products Power Products Blue Sea Systems 5242-BSS ATO/ATC Fuse 15A
£4.00
Power Products Blue Sea Systems 5054-BSS Circuit Breaker Block ST CLB 12 Position W/ Negative Bus
Power Products Power Products Blue Sea Systems 5054-BSS Circuit Breaker Block ST CLB 12 Position W/ Negative Bus
£63.00
ELCI 120VAC 30A 2 Pole 30mA IP Toggle Circuit Breaker Blue Sea Systems 3106100-BSS
Blue Sea Systems ELCI 120VAC 30A 2 Pole 30mA IP Toggle Circuit Breaker Blue Sea Systems 3106100-BSS
£212.00

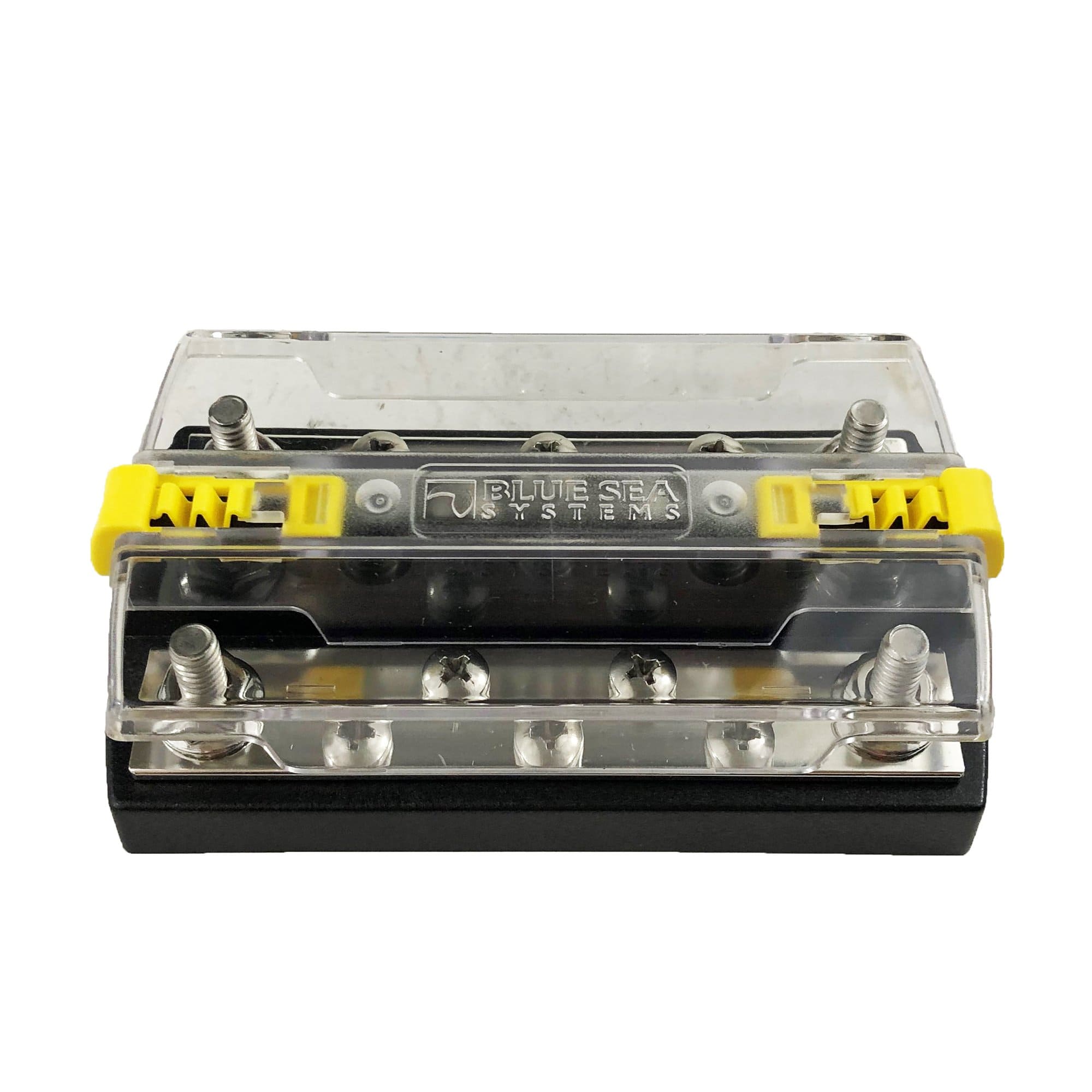

Power Products 2722-BSS Blue Sea Systems DualBus Plus 150A BusBar - 1/4"-20 Stud 5 Gang
Power Products Power Products 2722-BSS Blue Sea Systems DualBus Plus 150A BusBar - 1/4"-20 Stud 5 Gang
£21.00

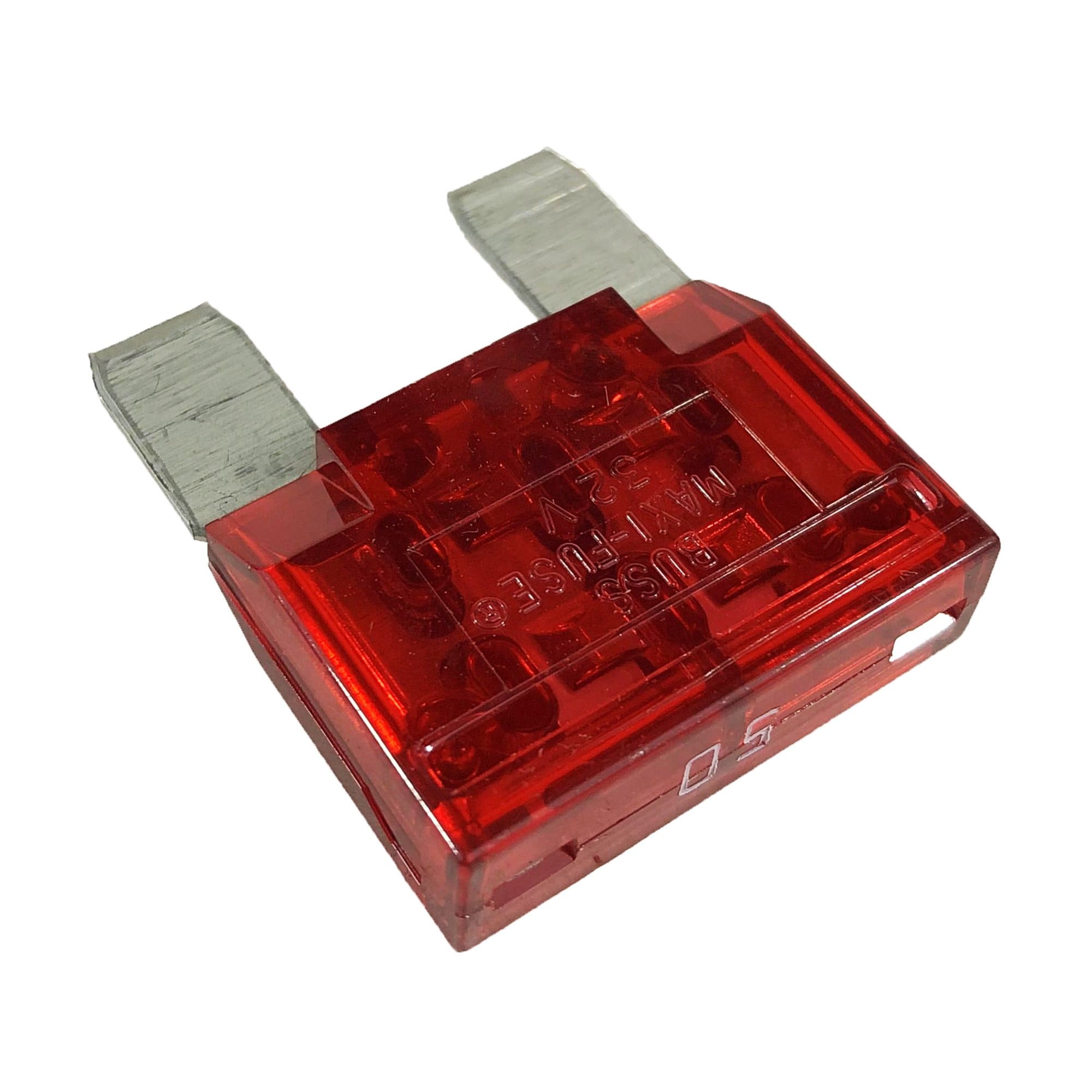

Blue Sea Systems 5140-BSS Power Products Maxi Fuse, 50 Amp
Blue Sea Systems Blue Sea Systems 5140-BSS Power Products Maxi Fuse, 50 Amp
£10.00
Lockout Slide 2pos 2pole C-Series Blue Sea Systems 4130-BSS
Blue Sea Systems Lockout Slide 2pos 2pole C-Series Blue Sea Systems 4130-BSS
£24.00
Power Products Blue Sea Systems 1992-BSS PowerBar 1000 W/ 8 5/16" Terminal Studs
Power Products Power Products Blue Sea Systems 1992-BSS PowerBar 1000 W/ 8 5/16" Terminal Studs
£107.00

Recently viewed

Save £406.00

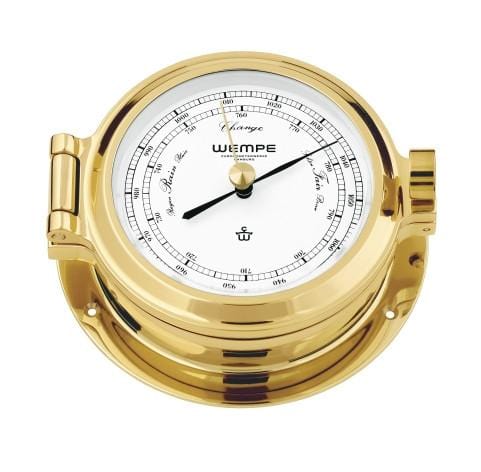

Wempe CW110002 Globalte Brass Barometer 1-Diaphragm 120 X 38mm White/Black Hpa/Mmhgc
