Power Products Blue Sea Systems 7250-BSS C-Series White Toggle Circuit Breaker W/ Single Pole 100A
Roll over image to zoom in Click on image to zoom
Power Products Blue Sea Systems 7250-BSS C-Series White Toggle Circuit Breaker W/ Single Pole 100A

Power Products Blue Sea Systems 7250-BSS C-Series White Toggle Circuit Breaker W/ Single Pole 100A

Save £1.00
Power ProductsSKU: 7250-BSS
Price:
£28.00 £29.00
Stock:
Sold out
Free Shipping* (Some exclusions apply)true
 More payment options

Description

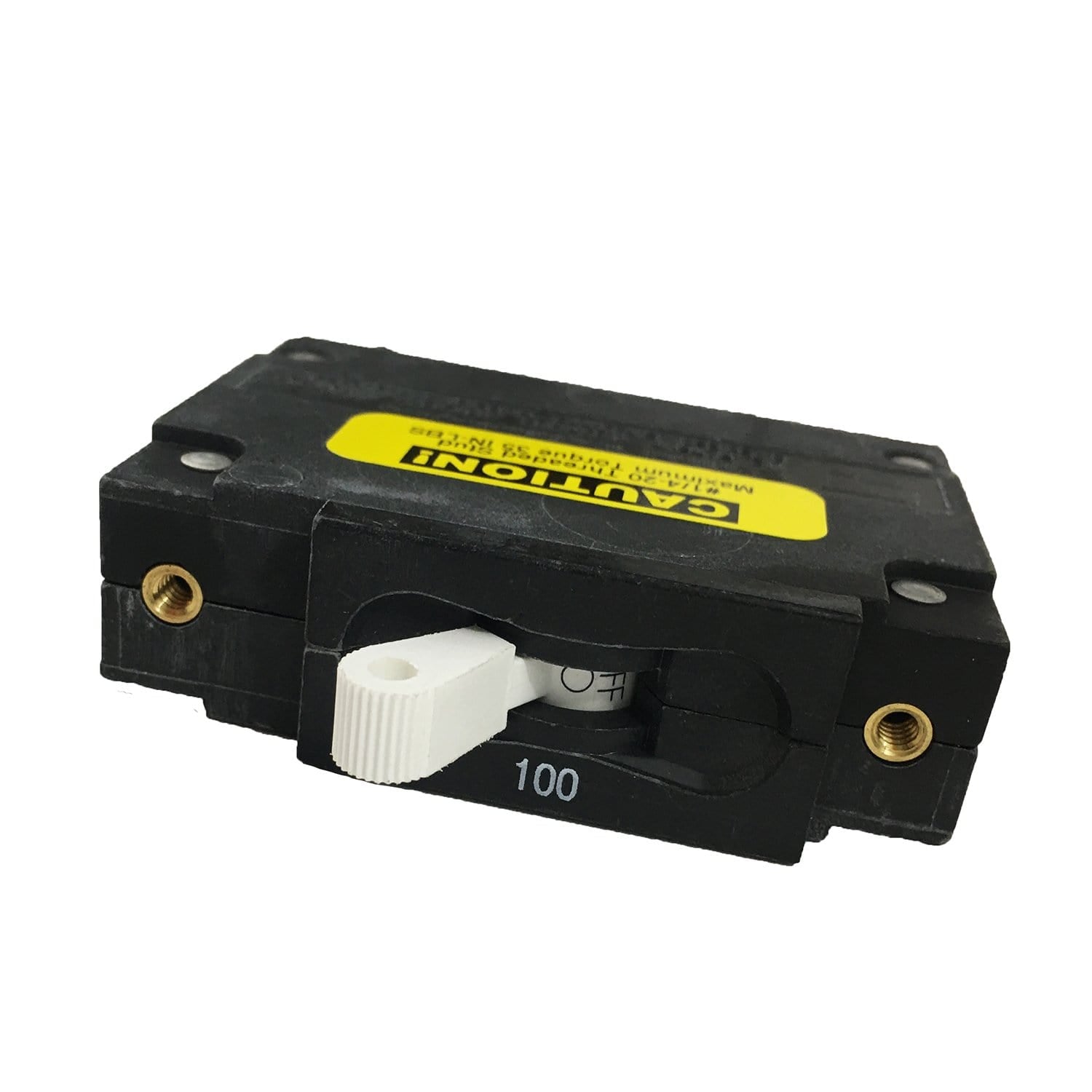

The 7250-BSS is a white C-Series 100 Amp toggle circuit breaker with a single pole

Specifications

actuator Toggle
amperage 100A AC, 100A DC
circuit breaker Magnetic Hydraulic - trip free
color White
maximum operating temperature 85┬░ C
maximum voltage 240V AC 65V DC
minimum operating temperature -40┬░ C
mounting screws #6-32 Stainless Steel
mounting screw torque 6 in-lb (0.68 Nm)
poles 1
switching cycles 10000
terminal stud 1/4-20 Tin-Plated Brass
terminal stud torque 35 in-lb (3.95 Nm)
weight 0.25lb

You May Also Like

Power Products Blue Sea Systems 7475-BSS C-Series Flat Rocker Circuit Breaker Double Pole 150A
Power Products Power Products Blue Sea Systems 7475-BSS C-Series Flat Rocker Circuit Breaker Double Pole 150A
£42.00
ELCI 120VAC 30A 2 Pole 30mA IP Toggle Circuit Breaker Blue Sea Systems 3106100-BSS
Blue Sea Systems ELCI 120VAC 30A 2 Pole 30mA IP Toggle Circuit Breaker Blue Sea Systems 3106100-BSS
£212.00
Rocker Toggle Panel Adapter Blue Sea Systems 4112-BSS
Blue Sea Systems Rocker Toggle Panel Adapter Blue Sea Systems 4112-BSS
£11.00
Power Products Blue Sea Systems 5054-BSS Circuit Breaker Block ST CLB 12 Position W/ Negative Bus
Power Products Power Products Blue Sea Systems 5054-BSS Circuit Breaker Block ST CLB 12 Position W/ Negative Bus
£63.00
Lockout Slide 2pos 2pole C-Series Blue Sea Systems 4130-BSS
Blue Sea Systems Lockout Slide 2pos 2pole C-Series Blue Sea Systems 4130-BSS
£24.00

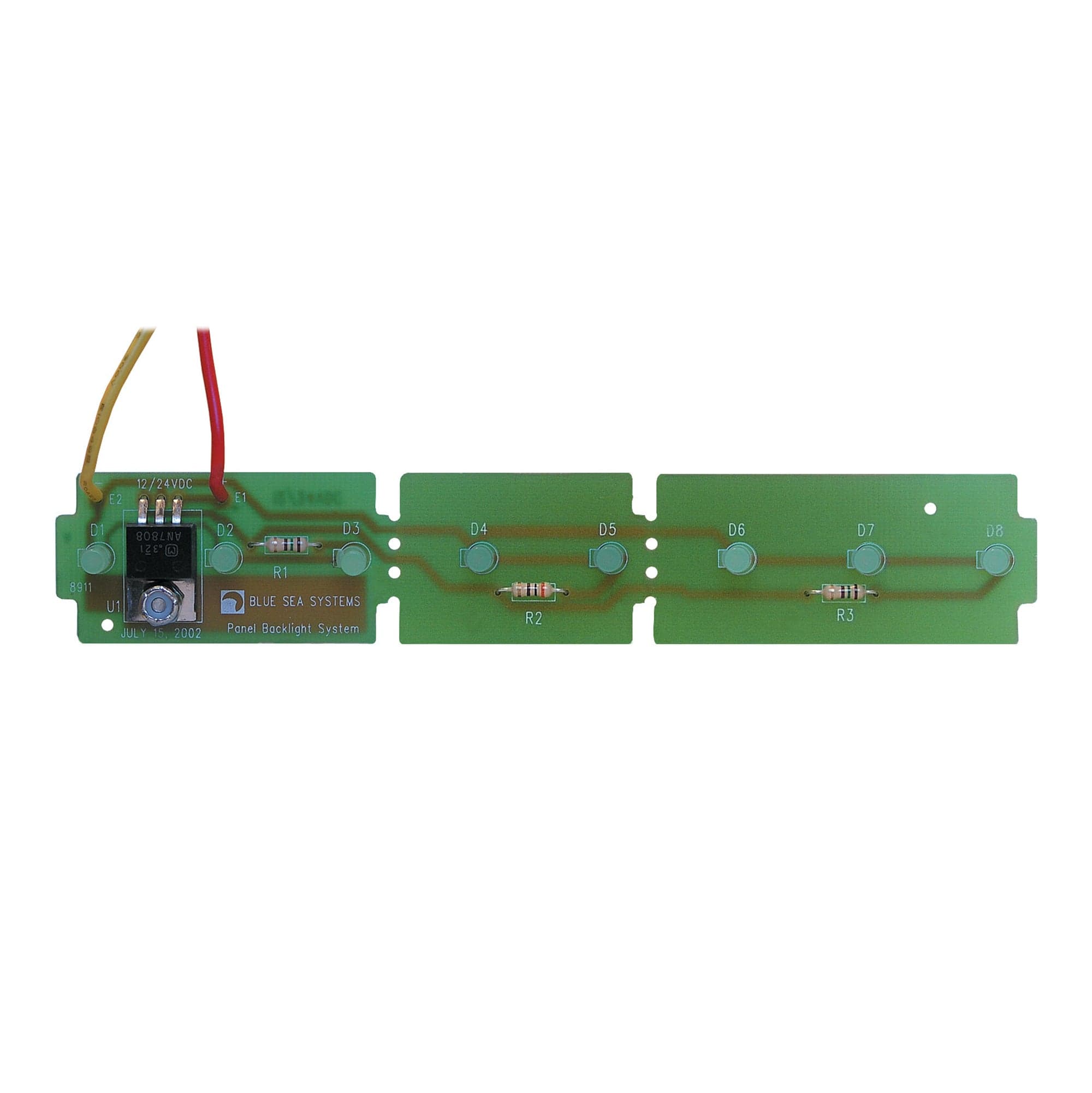

13 Position 12-24VDC Backlight System 8383 Blue Sea Systems
