Description

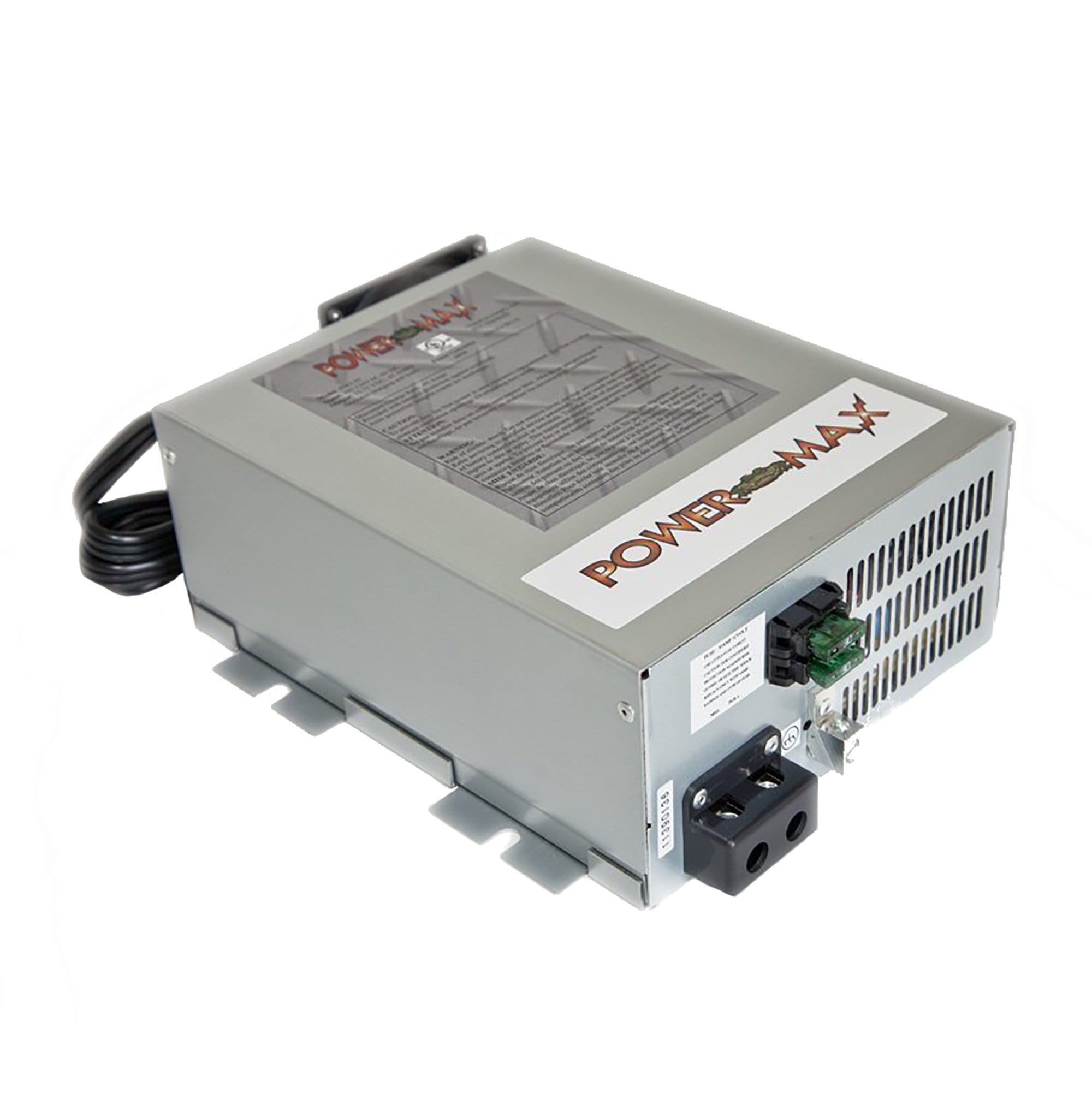

The Powermax PM3-100 is a 12 volt DC, 100 amp, converter charger with 3 stage automatic smart batter charger.
Specifications
| ac current | @ 108vac : 15 amps ( power factor corrected ) |
| amps | 100 Amps |
| dimensions | 9.9"W x 3.9"H x 13.36"D |
| efficiency | 0.85 |
| input frequency | 47 - 63 hz |
| input voltage range | 105 - 135 ac |
| line regulation | 100mv ms |
| load regulation | <1.0% |
| output amps | 100 amps |
| output voltage | 12 Volts |
| output voltage range | 13.6v - 14.4v dc |
| output voltage tolerance | No Load Approx. + or - 7% |
| overload protection | >100% |
| stages | 3 Stage |
| storage temperature | -20 to 80c |
| weight | 10 lbs |
| withstand voltage | 120v @ leads |
| working temp | 0 - 45c |
