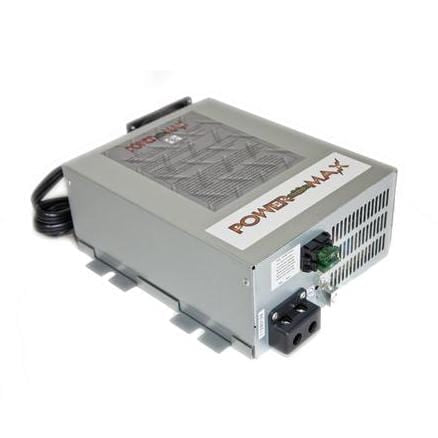

Powermax PM3-35LK Power Converter With 3 Stage Automatic Smart Battery Charger

ac current

@ 108vac : 5 amps

amps

35 Amps

dimensions

7.5"w x 3.45"h x 10.5"d

efficiency

0.85

input frequency

47 - 63 hz

input voltage range

105 - 135 ac

line regulation

100mv ms

load regulation

<1.0%

output amps

32 amps

output voltage

12 Volts

output voltage range

13.6v - 14.4v dc

output voltage tolerance

No Load Approx. + or - 7%

overload protection

>100%

stages

3 Stage

storage temperature

-20 to 80c

weight

7 lbs

withstand voltage

1240v @ leads

working temp

0 - 45c
