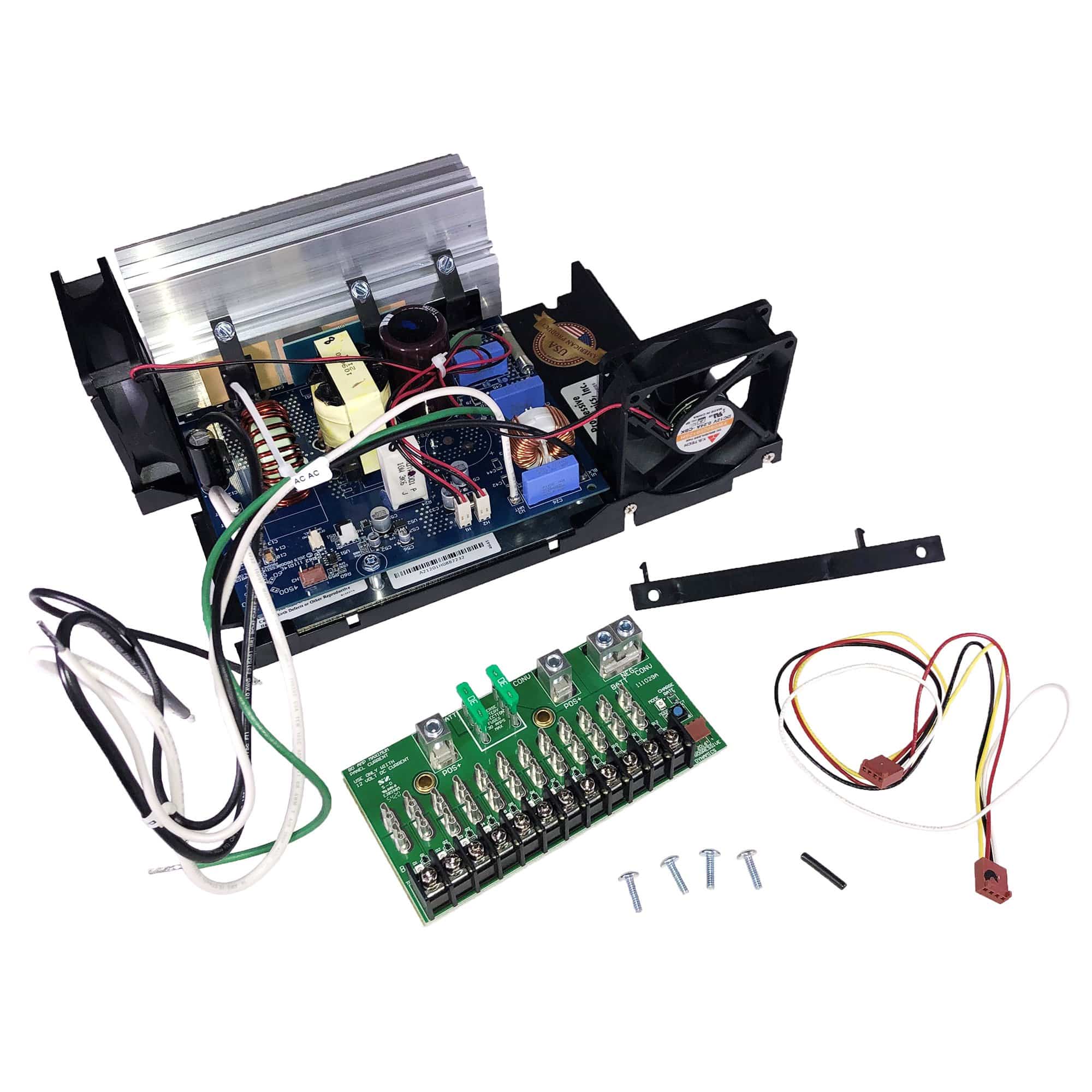

Progressive Dynamics PD4645LIV 45 Amp Lithium Replacement Converter Section
Roll over image to zoom in Click on image to zoom
Progressive Dynamics PD4645LIV 45 Amp Lithium Replacement Converter Section

Progressive Dynamics PD4645LIV 45 Amp Lithium Replacement Converter Section

Save £49.00
Progressive DynamicsSKU: PD4645LIV
Price:
£247.00 £296.00
Stock:
Sold out
Free Shipping* (Some exclusions apply)true
 More payment options

Compatibility

12V Lithium LifePO4 Batteries W/ BMS

Replaces

WFCO 8945 Converter
Progressive Dynamics PD4645 Lead Acid Power Converter

Description

This product has been replaced by PD4645V

This is a replacement 45 Amp Lithium RV Converter to the WFCO 8945 Converter and the Progressive Dynamics PD4645 Lead Acid Converter. This lithium replacement upgrade is made to be used with 12v Lithium LifePO4 batteries that have a Battery Management System (BMS).

Features:

  • The PD4645LIV Lithium Converter has a single stage charging profile that output a constant 14.6v, made to keep your Lithium Battery Fully Charged.
  • Reverse Battery Protection
  • High and Low AC input protection
  • Variable Speed Cooling Fan
  • Thermal Protection

Warning: Product may contain materials cautioned by California Proposition 65

Specifications

Cooling Fan Auto-variable speed
DC Output Voltage 14.6 VDC ±.3 VDC
Dimensions 11.13 x 7.38 x 3.94
Efficiency > 80%
Electronic Current Limiting Yes
Hipot Voltage Test 1240 V @ Input
Input Current @ Rated Power ~8.3 Amps
Input Frequency 50-60 Hz
Manufacturer Progressive Dynamics
Max. Continuous Power 725 Watts
Max. DC Output 45 Amps
Model PD4645LIV
Operating Temp. -0°C - 50°C
Over Voltage Protection Yes
Peak Inrush Current 32 Amps
Reverse Battery Protection Yes
Ripple / Noise Voltage < 50 MV
RMS Input Tolerance 105 - 130 VAC
Storage Temperature -20°C - 80°C
Thermal Protection Yes
Under Voltage Protection Yes
