Description

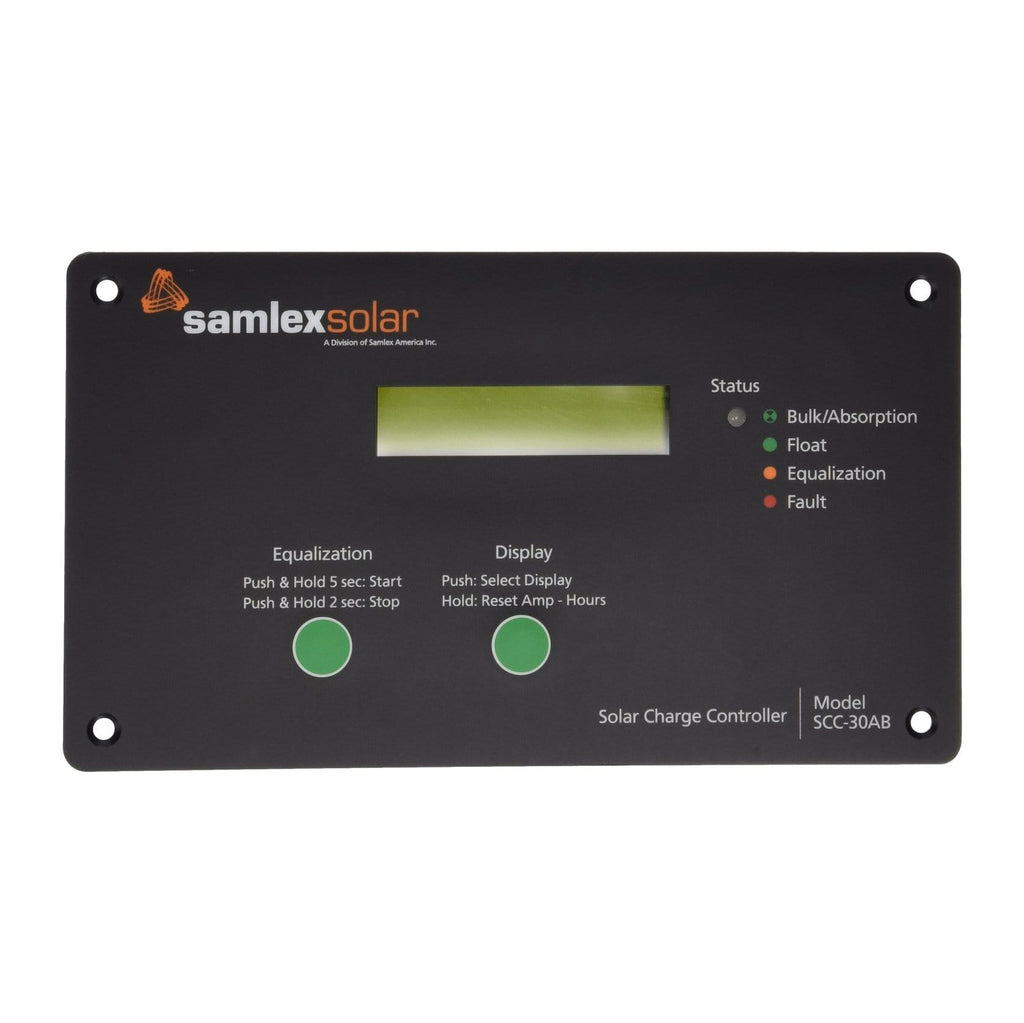

SAMLEX SCC-30AB 12 / 24 VOLT 30 AMP PULSE WIDTH MODULATION ( PWM ) SOLAR CHARGE CONTROLLER WITH LCD DISPLAY. The Samlex SCC-30AB 30 Amp PWM Charge Controller regulates current and protects your batteries from over-charging. Features of this 4-stage Charger include: LED status indicators, digital LCD monitor and 8 charge settings for most battery types. Charging is further regulated with the optional DC-BTS-A-C Battery Temperature Sensor. Additional featues of this unit include dual voltage capability- can be used with 12 or 24 volt systems and the 30 amp charging capacity-enables use of up to 360 watts of 12 volts or 720 watts of 24 volts.
Specifications
| amps | 30 Amps |
| battery types | lead acid-flooded / agm gel cell: ni-cd |
| dimensions | 7.5" L x 4.25" H x 1.35" D |
| display | lcd and led |
| maximum open circuit voltage | 50 volts |
| operating temperature | -10┬░c to +45┬░c |
| output voltage | 12/24 Volts |
| self consumption | 9ma |
| storage temperature | -55 to +85┬░c |
| temperature compensation | 0 to 50┬░c |
| weight | .88 lb |
