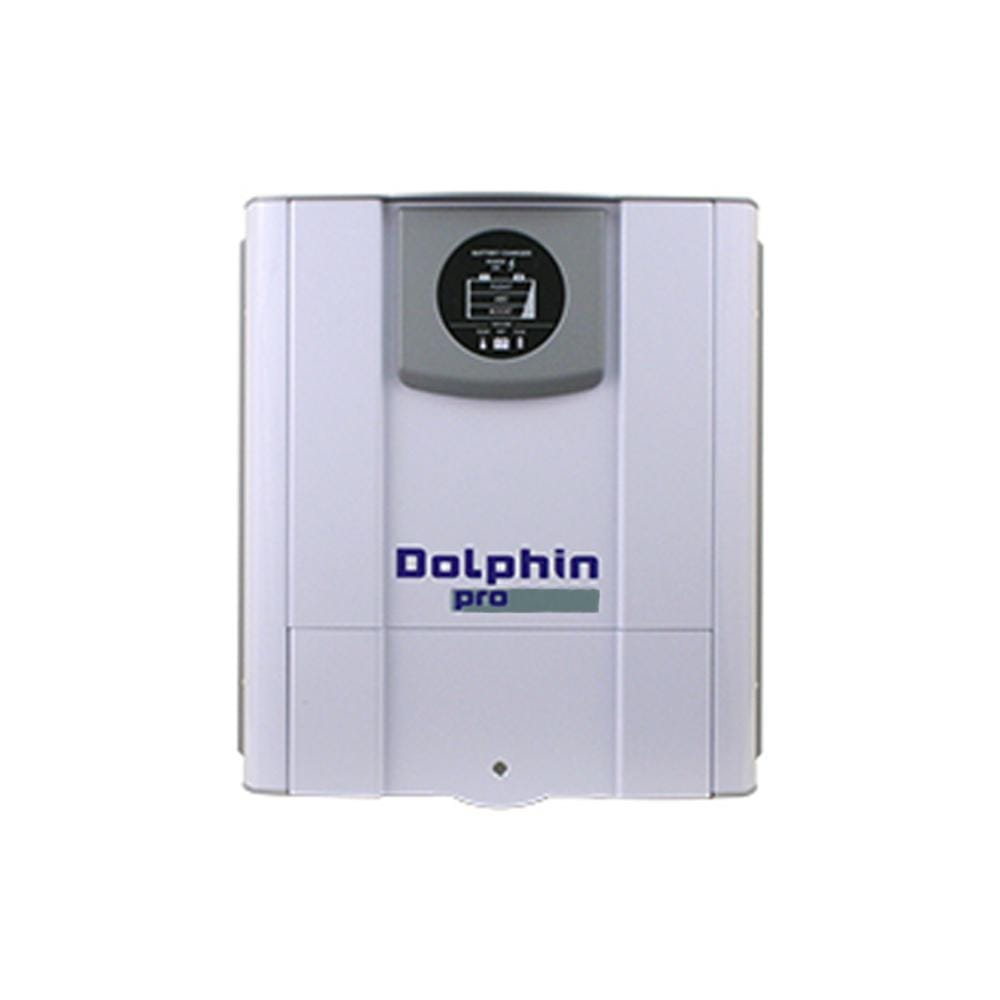

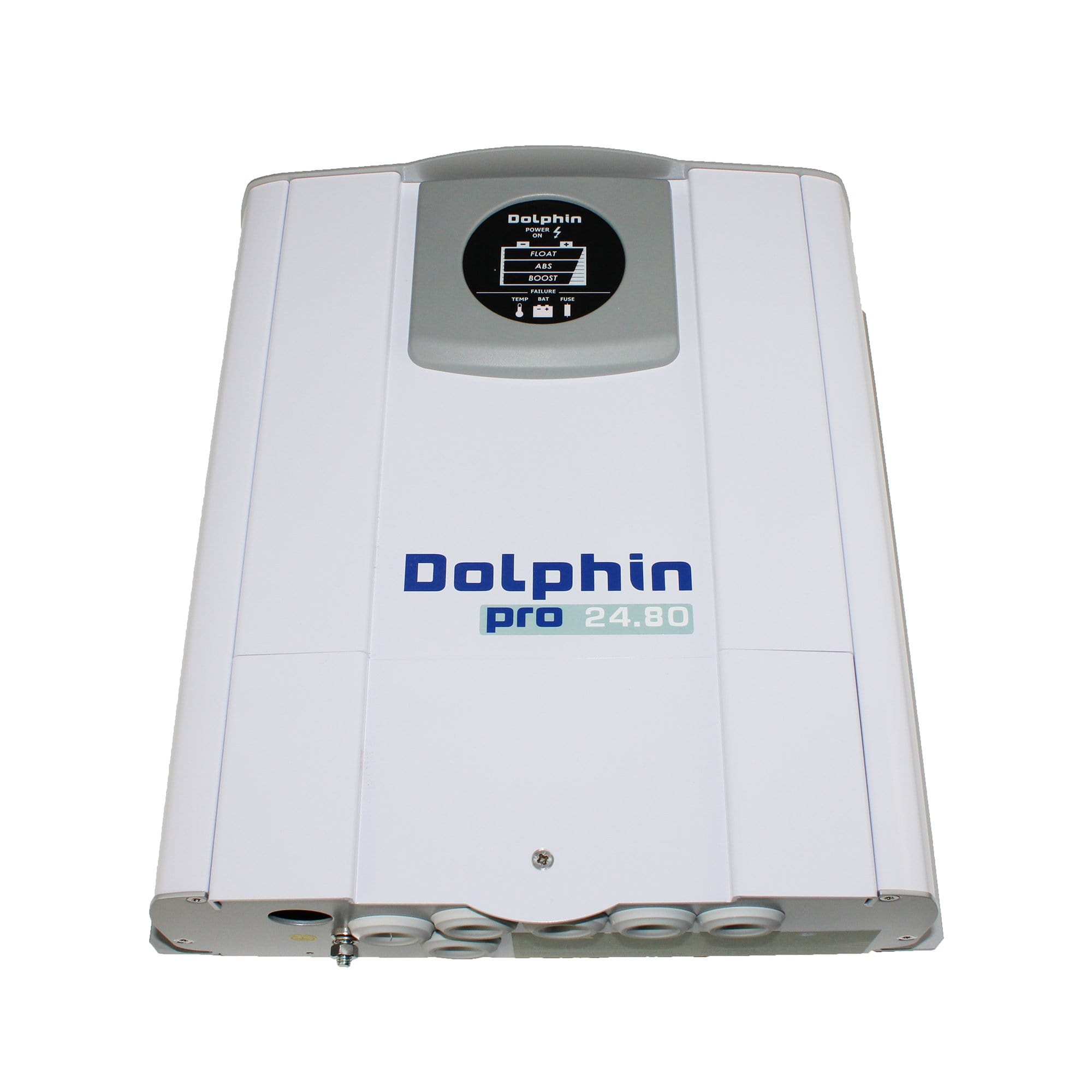

Scandvik Dolphin 99505 Pro 24V 80A 3 Bank Battery Charger

The Scandvik Dolphin 99505 is a robust, 24 Volt 80 Amp 3-bank battery charger designed to convert AC input to DC charging output. The unit casing is tough powder coated aluminum and includes hardware for easy mounting.

The battery charger features digital microcontroller management that has four charging programs for flexible usage. The unit also includes built in automatic AC input switching between 115 volts and 230 volts. Front cover is easily removed for easy wiring and to adjust the charge selector. The system has a built in CAN BUS J1939 interface for easy connection to any monitoring system.

• Adjustable speed forced fan cooling
• Integrated LED control panel
• 3 totally isolated battery outputs
• Input Fuse: T20A
• Output Fuse (automotive mini): 3F25A
• Mounting hardware included, 4x #8 screws
• Protections: output current limited, overload output voltage, output short circuit, reverse polarity, and over temperature
• AC Connection: 3-pin cage terminal, 10 AWG max
• DC Connection: 4x 5/16\\" Terminal bolts

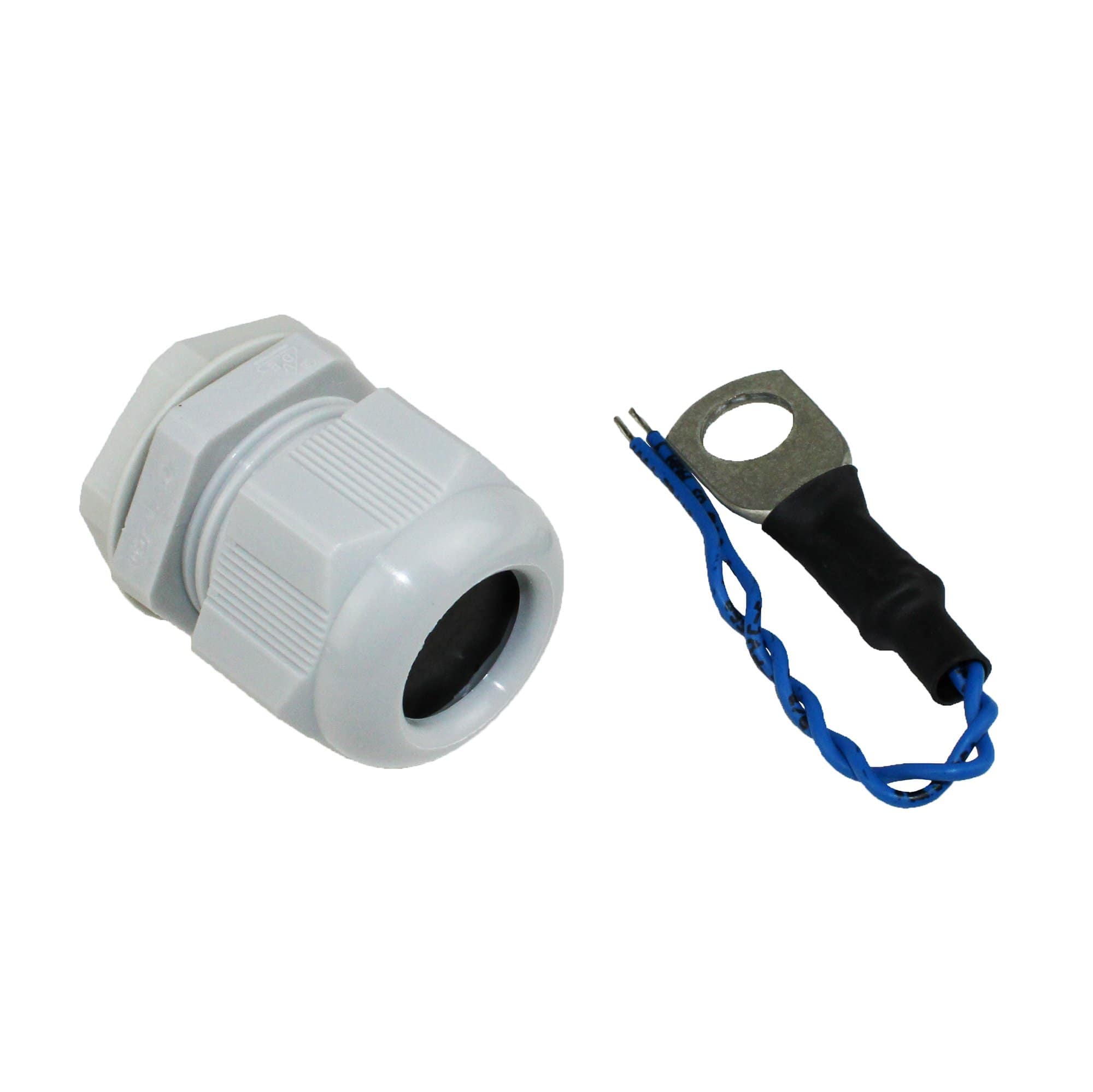

• Includes cable gland for input cable and a grommet for a waterproof seal
