Description

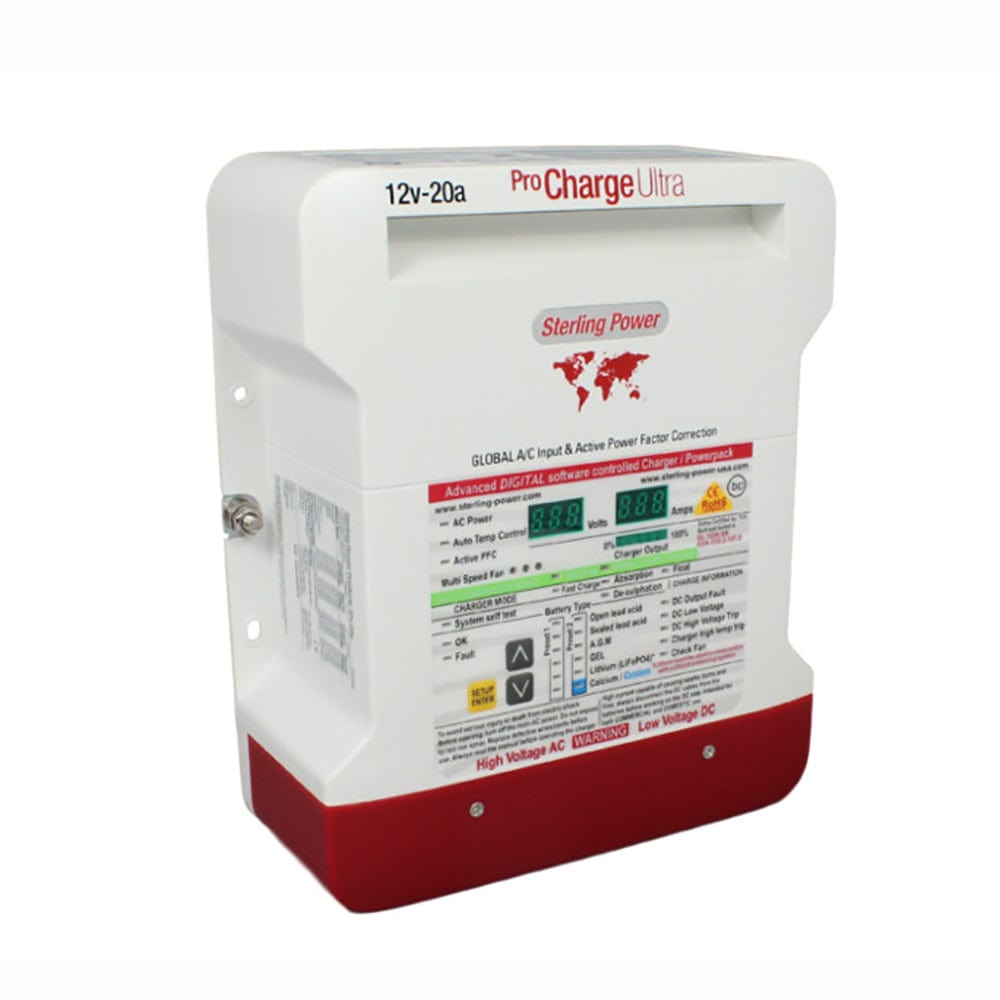

The ProCharge Ultra Plus line of marine grade battery chargers is the second generation updated line that sets a new standard for features, performance, and price. It is power factor corrected, exceptionally efficient, and runs on any Global AC Power source between 80-270 volts. This high performance battery charger requires less input power, produces less heat and noise waste, and comes with eleven pre-programmed battery charging curves as well as 4 user customizable battery profiles for Lead Acid or Lithium Batteries. It also allows for adjustment of absorption time, custom set charge, float voltages, and DegC temp trip protection. The optional BMS signal and optional positive signal feed bring all the custom settings needed for your next project. The digital display allows for easy checking of real time voltage or current output, and the optional multi-lingual remote control can be mounted over 30 feet away from the battery charger.
This product replaces the PCU1220
- Adjustable Absorption Time Window
- Easy Access tabs for the bottom cover
- Custom lithium charging profiles
AC Input: 90-270VAC // 45-65Hz
Dc Input: 130-320VDC
Efficiency: 90.4%
Battery Chemistries: Suitable for all battery types within the voltage range. Lithium included.
Number of outputs: Dependent on model. PCU1210 has two outputs. All other models have three outputs.
Preset Battery Profiles: 11 preset battery types, including 4x lithium presets. In the unlikely case none of our presets suit your batteries perfectly, we also have two custom profiles. One for lithium custom, one for lead acid custom. Absorption time now adjustable.
Lithium Features: Live output voltage so as to offer the ability to wake up a dormant BMS
Low temperature (0DegC) charge disconnect (In place of the temperature compensation featured on lead acid) A feed that allows your BMS to disable charge, with either a positive or resistance based connection
Operating Temperature: -40DegC to +60DegC
Approvals: UL, UKCA, CSA, CE, EN, TUV, CEC Compliant
Signal Output: 0.25A signal output that mirrors the active output voltage, useful for signalling relays or other voltage based controls
Total Harmonic Distortion: 2.4% on voltage and current
Display Accuracy: +/- 1% on voltage and current
Power Factor: 0.976 at 230V
Warranty Period: Five years
Protections: Temperature sensor protections, Fan obstruction monitoring, DC High Voltage Trip, DC Low Voltage Trip, DC Output Fault (Reverse Polarity), BMS shutdowns
WARNING - California Proposition 65: Cancer and Reproductive Harm
Specifications
| Amp meter accuracy | +/- 1% |
| Approvals | UL, UKCA, CSA, CE, EN, TUV, CEC Compliant |
| Battery Chemistries | Suitable for all battery types within the voltage range. Lithium included. |
| DC Input | 130-320VDC |
| Display Accuracy | +/- 1% on voltage and current |
| Efficiency | 90.4% |
| Input voltage range | 90-270V 45-65 hz |
| Operating Temperature | -40DegC to +60DegC |
| Power Factor @ 230V | 0.976 @ 230V |
| Protections | Temperature sensor protections, Fan obstruction monitoring, DC High Voltage Trip, DC Low Voltage Trip, DC Output Fault (Reverse Polarity), BMS shutdowns |
| Signal Output | 0.25A signal output that mirrors the active output voltage, useful for signalling relays or other voltage based controls |
| Total Harmonic Distortion | 2.4% on voltage and current |
| Warranty | 5 Year Warranty from Manufacturer |
