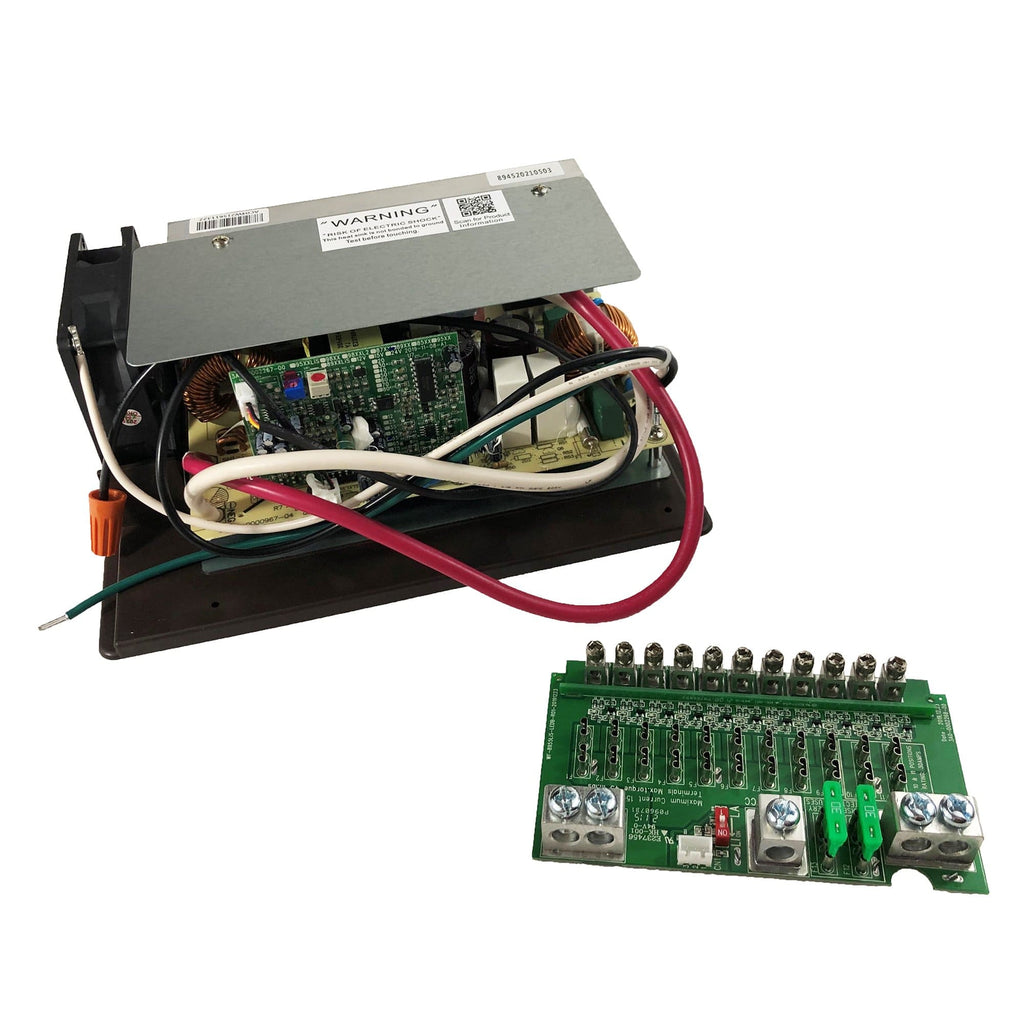

WFCO WF-8945LiS-MBA Arterra Converter/Charger Main Board Assembly Only, 45A Dc Output

WFCOSKU: WF-8945LiS-MBA

Price:
Sale price£92.00
Stock:
In stock (4 units)
Free Shipping* (Some exclusions apply)true
 More payment options

Description

Our WF-8900 Series has been the RV industry’s preferred power center for years, and now offers a Lithium Switch option with the WF-8945LiS! The Lithium Switch allows customers the versatility to change charging modes between lead-acid and lithium batteries by simply sliding a switch. Easy to use, the WF-8945LiS provides a convenient, long-term option that eliminates the hassle of swapping out a whole unit.

Designed to take advantage of installation codes, which allow 30 Amp service and 6 branch circuits, this product has more circuits than most products available in its class. FCC Class B compliance for every power center model means that the units are designed not to cause interference with televisions, radios, or other signals. Electronic current limiting automatically shuts down the power during overload or short-circuit conditions, protecting the life of your power center and electrical system.

The WF-8945LiS provides AC and DC distribution with innovative features. It can accommodate a 30 Amp main AC circuit breaker and up to five branch circuits. Eleven-branch DC circuits are available with LED lights for each DC circuit to illuminate and identify open circuits.

Warning: Product may contain materials cautioned by California Proposition 65

Specifications

Absorption Mode 13.6V DC (nominal voltage)
Bulk Mode 14.4V DC (quick charging voltage)
Case Color Black, Brown
Case Material Plastic
Certifications FCC, UL
Converter Type Three-Stage Converter Charger, Two Stage Converter Charger
Cooling System Yes
DC Circuits (2 30A max), 11 (9 20A max)
Dimensions 14.17″ W x 11.81″ H x 8.5″ DAC Circuits (twin breakers): 10 (Main and 9 Branch Circuits)
Float Mode 13.2V DC (trickle charge voltage)
Input Voltage/Hz 105-130 VAC, 60 Hz
Output Current 41.5A, 45 A
Output Power 770W
Over Current Yes
Over Temperature Yes
Over Voltage Yes

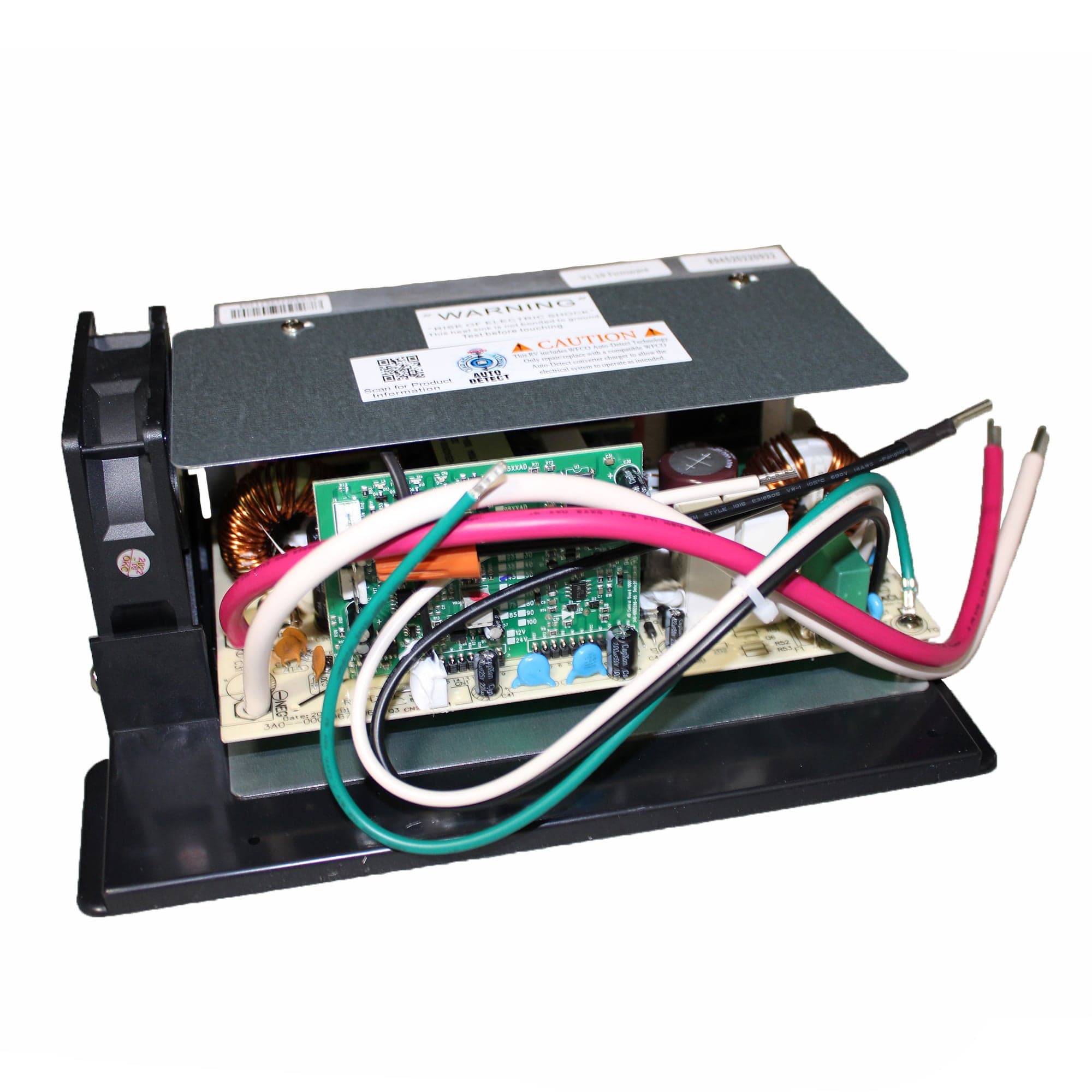

Replacement Board WF-8945-MBA (Main Board Assembly, 45 Amps)
Reverse Polarity Yes
Voltage Output 13.2 – 14.6 VDC, 13.6 – 14.6 VDC
Weight 3.9kg
